GENERAL INFORMATION 35

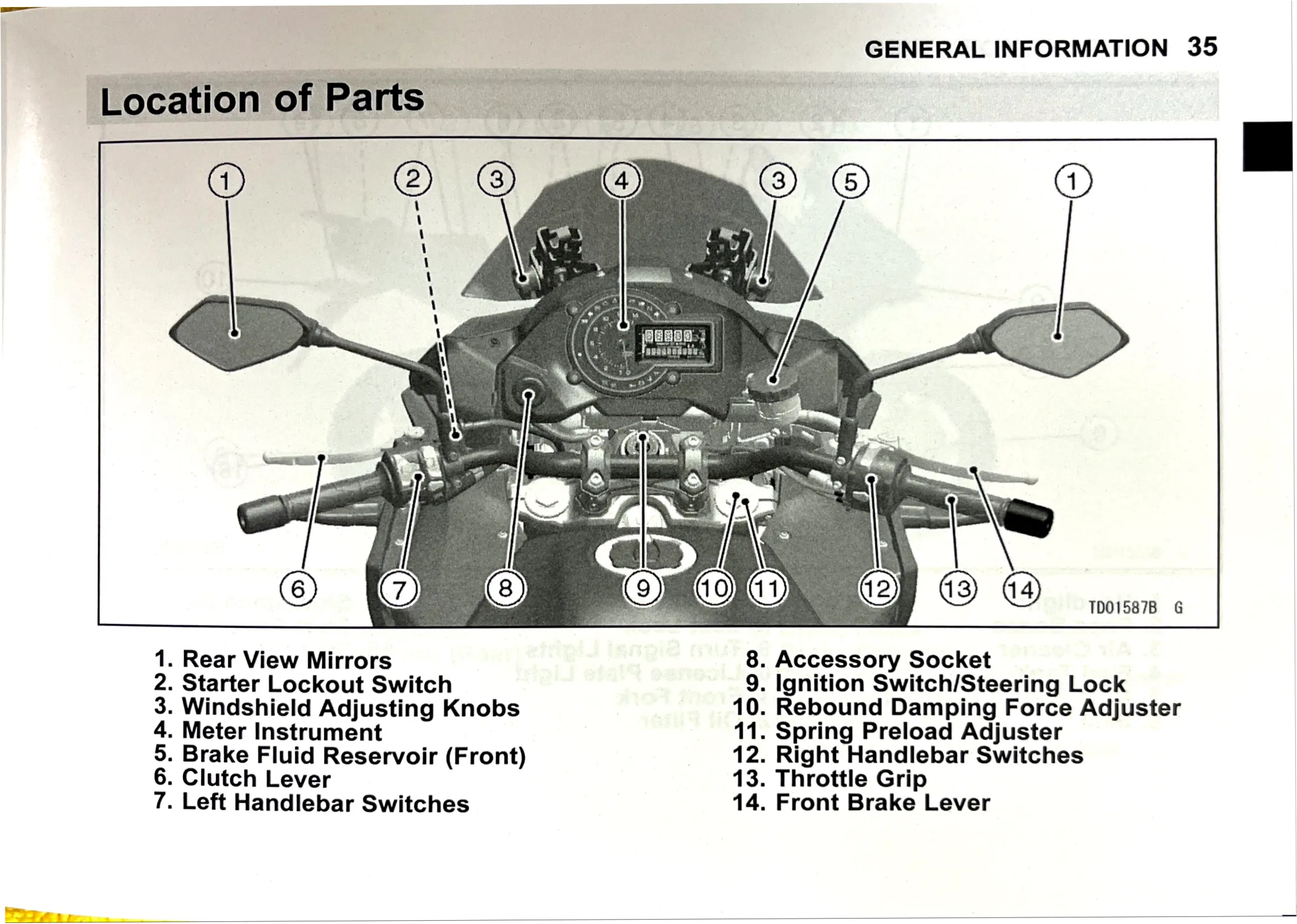

Location of Parts

TDO01587B G

1. Rear View Mirrors 8. Accessory Socket

2. Starter Lockout Switch 9. Ignition Switch/Steering Lock

3. Windshield Adjusting Knobs 10. Rebound Damping Force Adjuster
4. Meter Instrument 11. Spring Preload Adjuster

5. Brake Fluid Reservoir (Front) 12. Right Handlebar Switches

6. Clutch Lever 13. Throttle Grip

7. Left Handlebar Switches 14. Front Brake Lever
