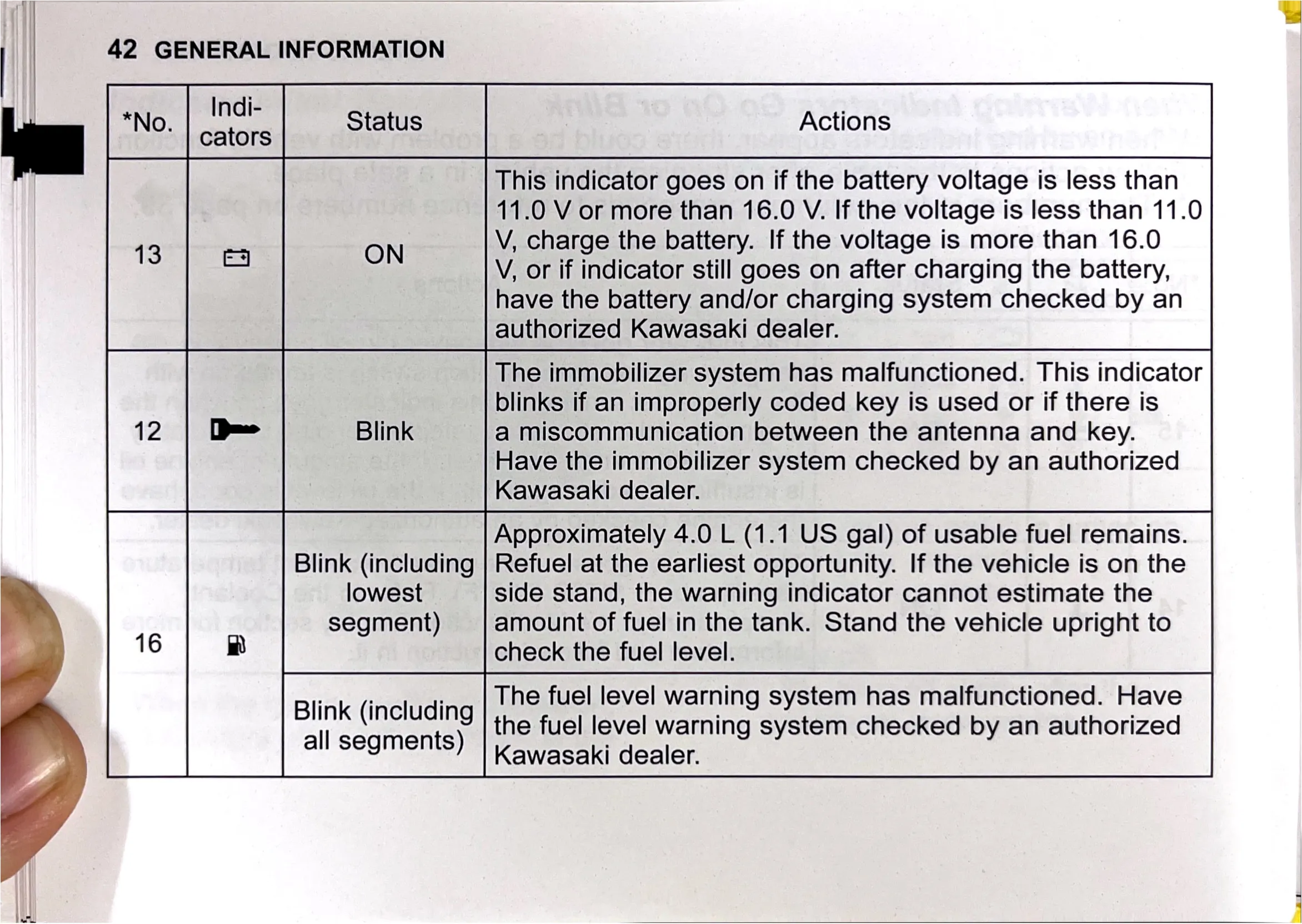

Owner's Manual — page 44 of 201 (printed page 42)

Text on this page

42 GENERAL INFORMATION

*No.

Indi-
cators

Status

Actions

13

ON

This indicator goes on if the battery voltage is less than
11.0 V or more than 16.0 V. If the voltage is less than 11.0
V, charge the battery. If the voltage is more than 16.0

V, or if indicator still goes on after charging the battery,
have the battery and/or charging system checked by an
authorized Kawasaki dealer.

12

Blink

The immobilizer system has malfunctioned. This indicator
blinks if an improperly coded key is used or if there is

a miscommunication between the antenna and key.
Have the immobilizer system checked by an authorized
Kawasaki dealer.

16

Blink (including
lowest
segment)

Approximately 4.0 L (1.1 US gal) of usable fuel remains.
Refuel at the earliest opportunity. If the vehicle is on the
side stand, the warning indicator cannot estimate the
amount of fuel in the tank. Stand the vehicle upright to
check the fuel level.

Blink (including
all segments)

The fuel level warning system has malfunctioned. Have
the fuel level warning system checked by an authorized
Kawasaki dealer.
