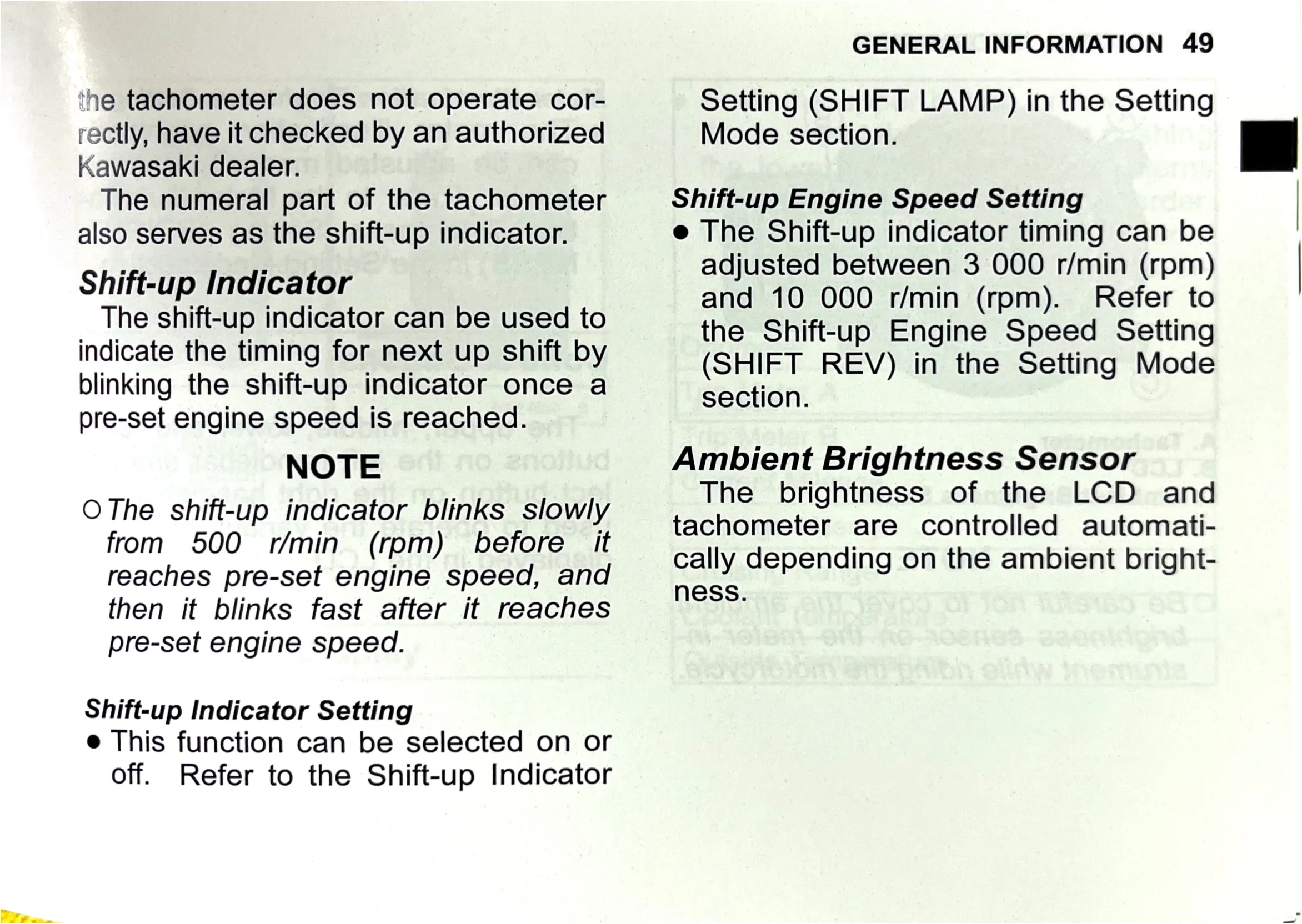

Owner's Manual — page 51 of 201

Text on this page

‘he tachometer does not operate cor-
rectly, have it checked by an authorized
Kawasaki dealer.

The numeral part of the tachometer
also serves as the shift-up indicator.

Shift-up Indicator

The shift-up indicator can be used to
indicate the timing for next up shift by
blinking the shift-up indicator once a
pre-set engine speed is reached.

NOTE

O The shift-up indicator blinks slowly
from 500 r/min (rpm) before it
reaches pre-set engine speed, and
then it blinks fast after it reaches
pre-set engine speed.

Shift-up Indicator Setting
e This function can be selected on or
off. Refer to the Shift-up Indicator

GENERAL INFORMATION 49

Setting (SHIFT LAMP) in the Setting
Mode section.

Shift-up Engine Speed Setting

e The Shift-up indicator timing can be
adjusted between 3 000 r/min (rpm)
and 10 000 r/min (rpm). Refer to
the Shift-up Engine Speed Setting
(SHIFT REV) in the Setting Mode
section.

Ambient Brightness Sensor
The brightness of the LCD and
tachometer are controlled automati-

cally depending on the ambient bright-
ness.
