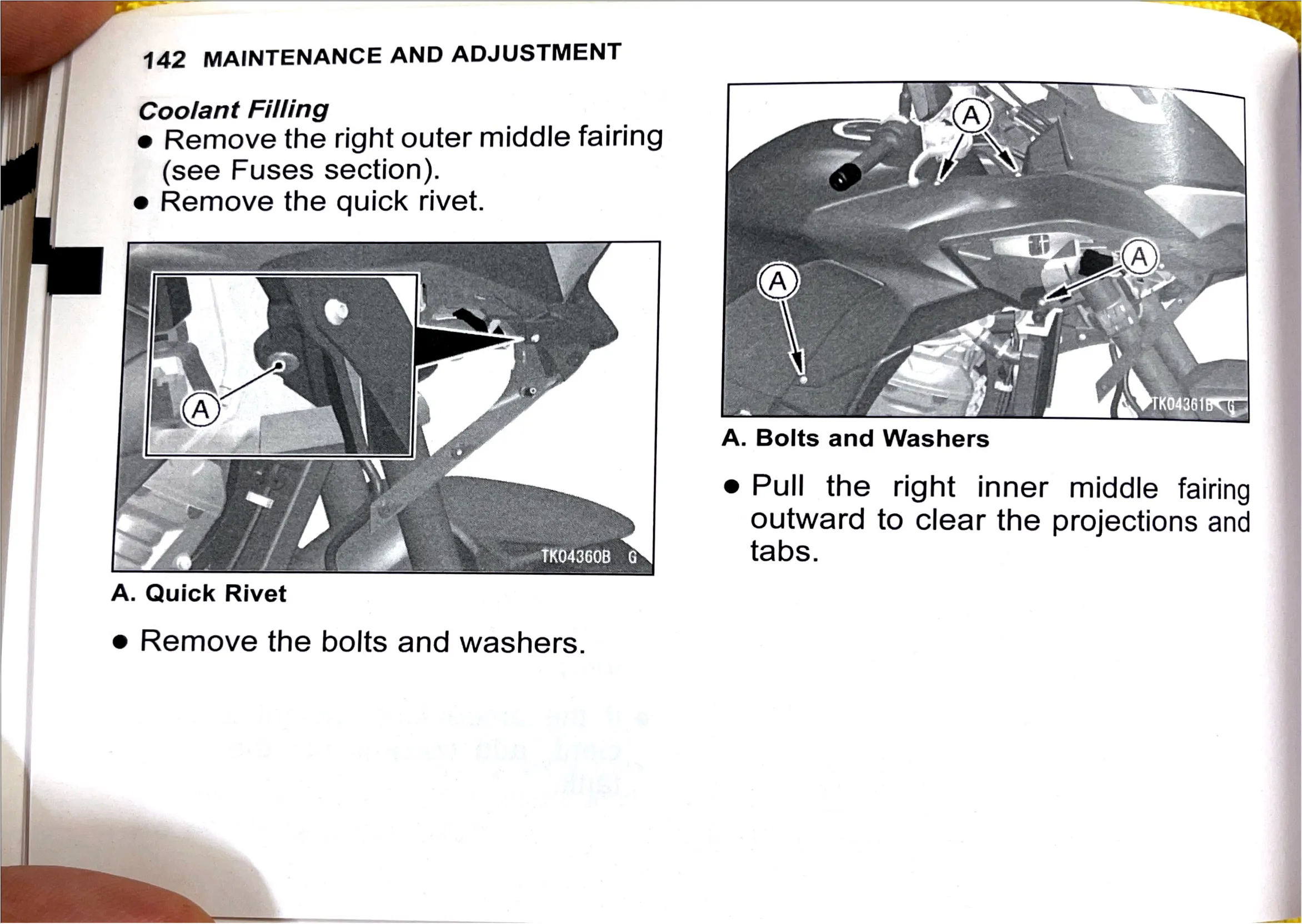

142 MAINTENANCE AND ADJUSTMENT

Coolant Filling

e Remove the right outer middle fairing
(see Fuses section).

e Remove the quick rivet.

A. Quick Rivet

e Remove the bolts and washers.

A. Bolts and Washers

e Pull the right inner middle fairing
outward to clear the projections and
tabs.
