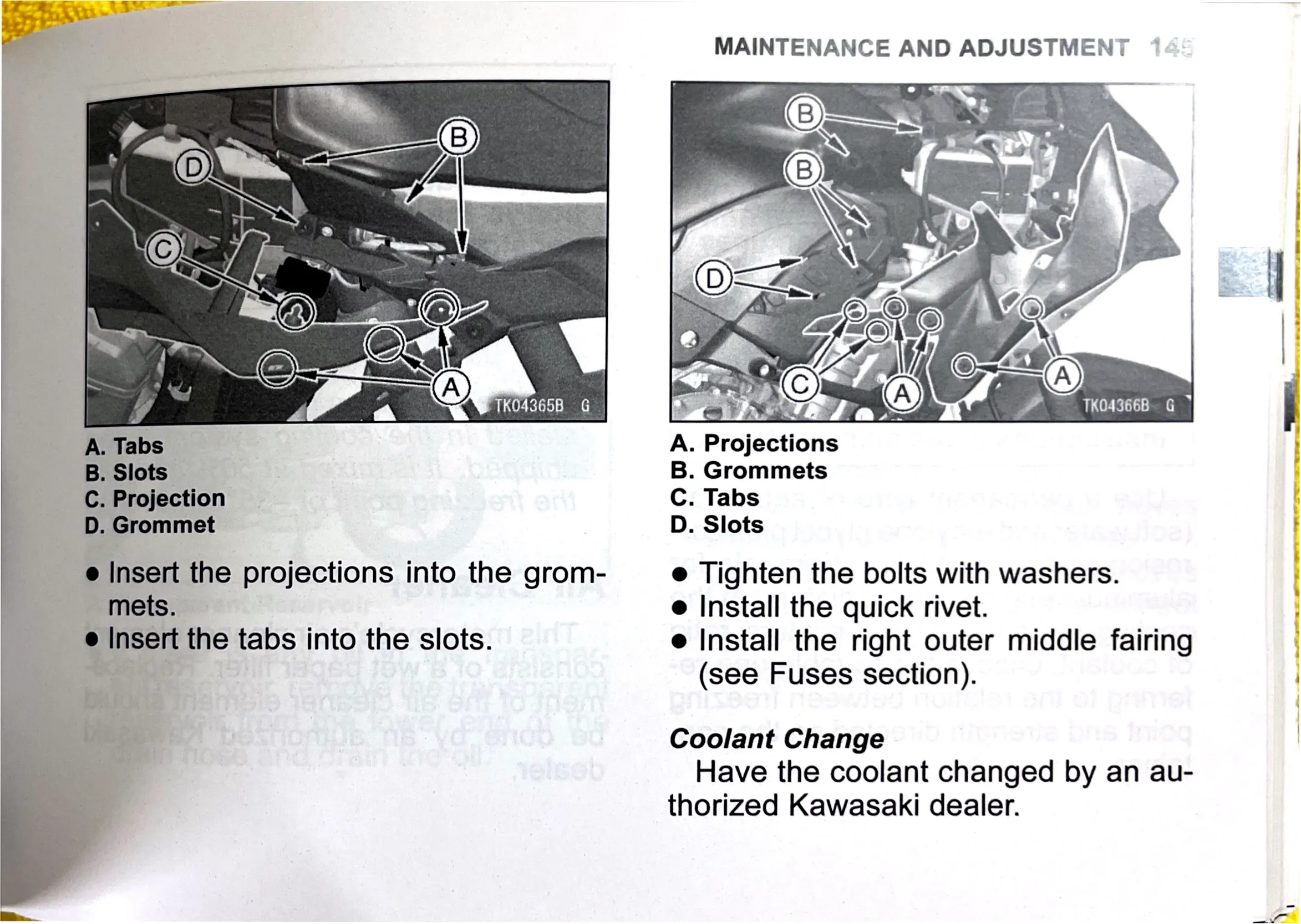

Owner's Manual — page 148 of 201

Text on this page

A. Tabs

B. Slots

C. Projection
D. Grommet

e Insert the projections into the grom-
mets.
e Insert the tabs into the slots.

MAINTENANCE AND ADJUSTMENT

OR. ew A Thosge68- ¢
A. Projections
B. Grommets
C. Tabs
D. Slots

e Tighten the bolts with washers.

e Install the quick rivet.

e Install the right outer middle fairing
(see Fuses section).

Coolant Change
Have the coolant changed by an au-
thorized Kawasaki dealer.
