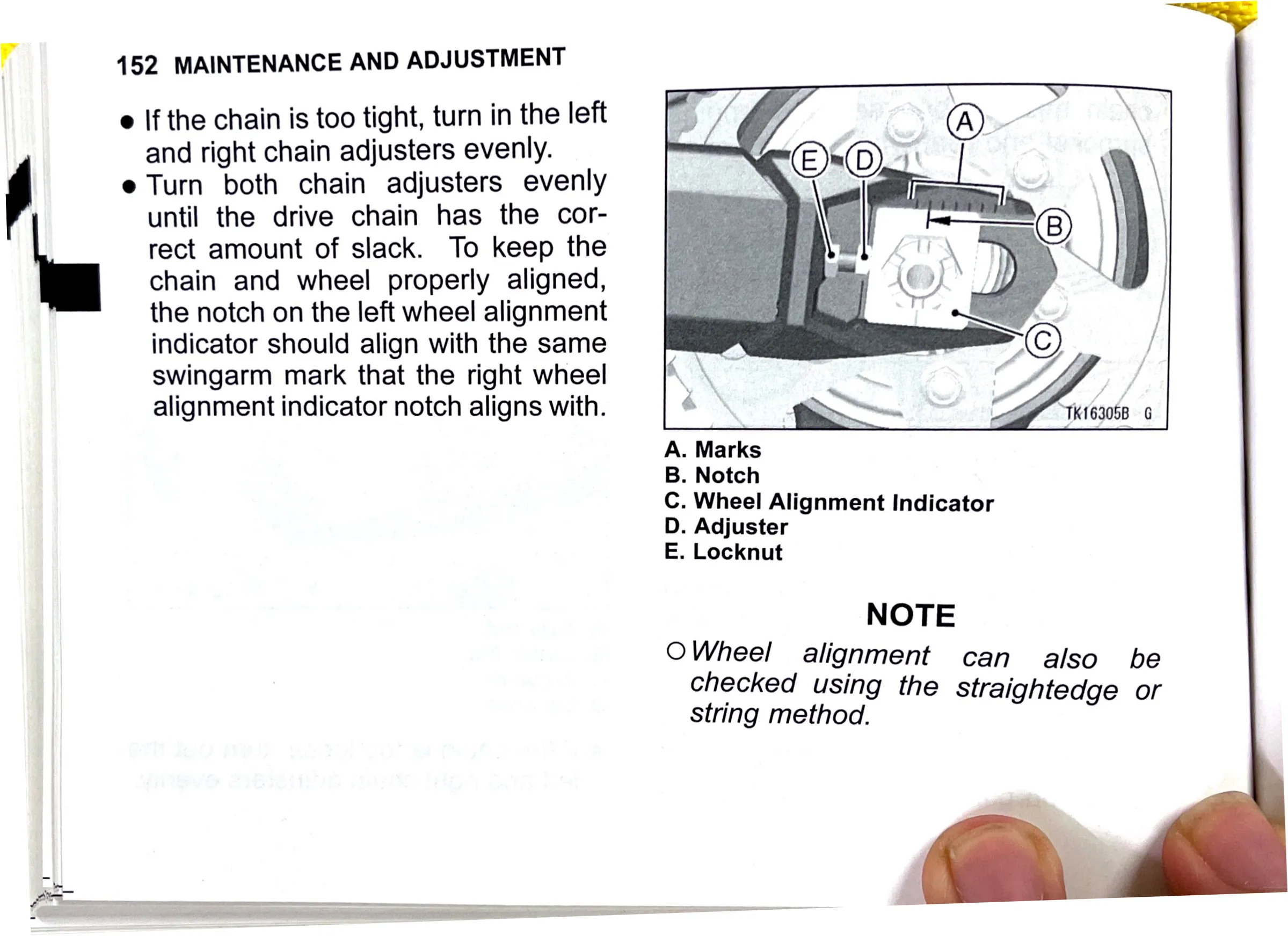

452 MAINTENANCE AND ADJUSTMENT

e If the chain is too tight, turn in the left
f and right chain adjusters evenly.

e Turn both chain adjusters evenly
until the drive chain has the cor-
rect amount of slack. To keep the
chain and wheel properly aligned,
the notch on the left wheel alignment
indicator should align with the same
swingarm mark that the right wheel .
alignment indicator notch aligns with. ' a

A. Marks

Yoon G
B. Notch

C. Wheel Alignment Indicator
D. Adjuster
E. Locknut

NOTE

OWheel alignment can also be

checked using the straightedge or
string method.
