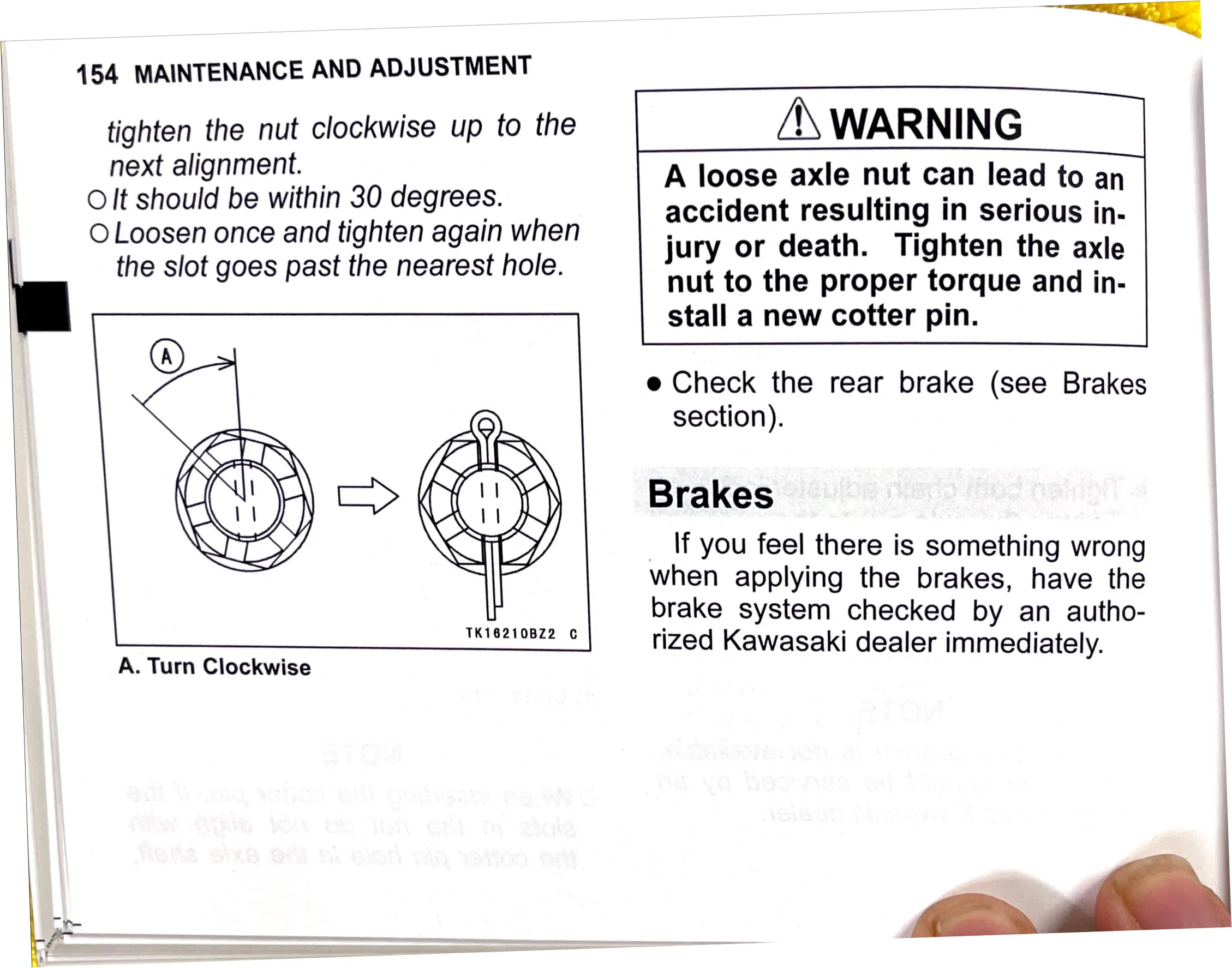

454 MAINTENANCE AND ADJUSTMENT

tighten the nut clockwise up to the
next alignment.

Olt should be within 30 degrees.

© Loosen once and tighten again when
the slot goes past the nearest hole.

—_—_"“""=iLia Ve ai

eet

od

/\\ WARNING

A loose axle nut can lead to an
accident resulting in serious in-
jury or death. Tighten the axle
nut to the proper torque and in-

stall a new cotter pin.

TK16210BZ2 ¢

A. Turn Clockwise

e Check the rear brake (see Brakes
section).

Brakes

If you feel there is something wrong
when applying the brakes, have the
brake system checked by an autho-
rized Kawasaki dealer immediately.
