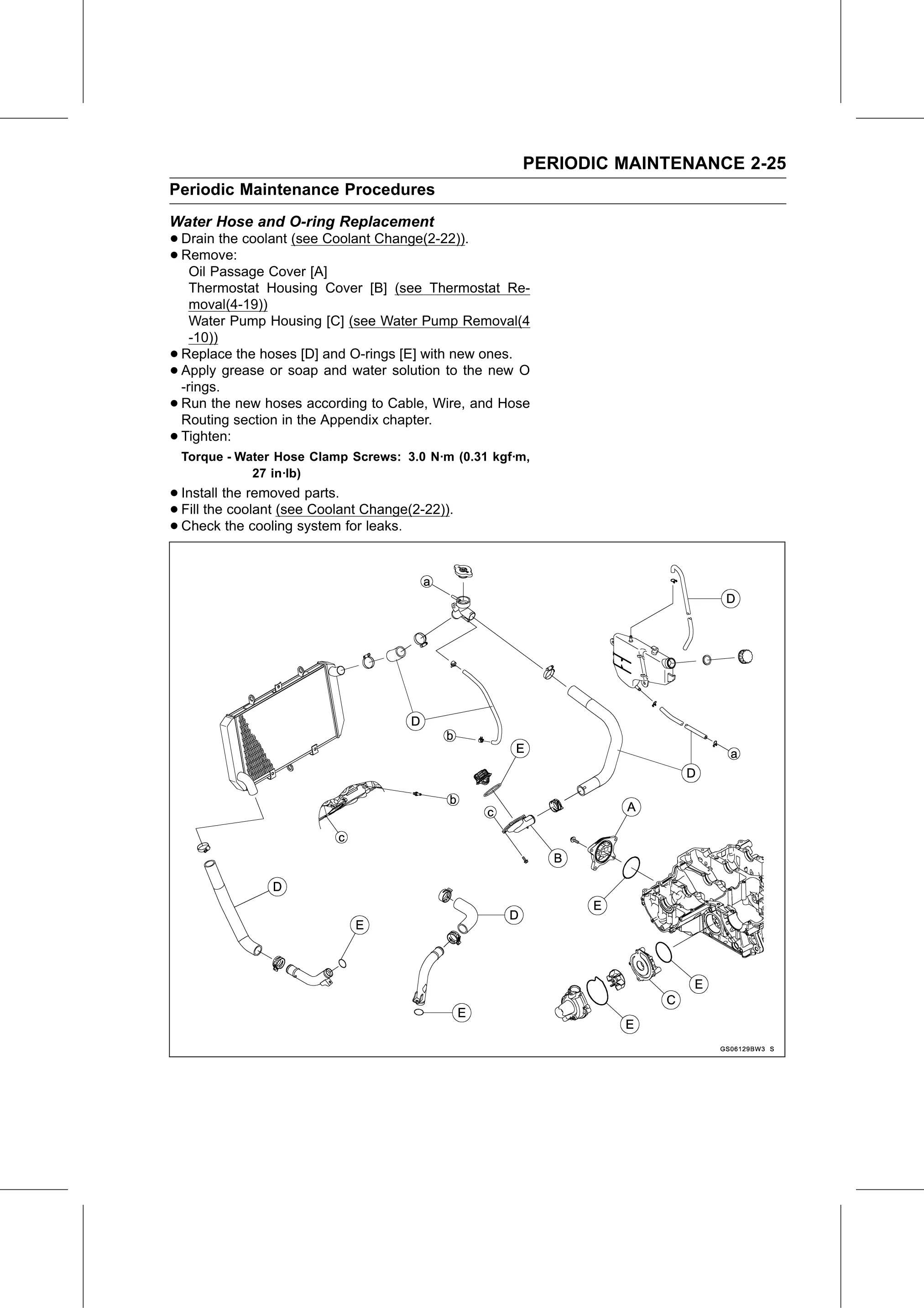

PERIODIC MAINTENANCE 2-25
Periodic Maintenance Procedures
Water Hose and O-ring Replacement
• Drain the coolant (see Coolant Change(2-22)).
• Remove:
   Oil Passage Cover [A]
      Thermostat Housing Cover [B] (see Thermostat Re-
      moval(4-19))
      Water Pump Housing [C] (see Water Pump Removal(4
      -10))
•   Replace the hoses [D] and O-rings [E] with new ones.
•   Apply grease or soap and water solution to the new O
    -rings.
•   Run the new hoses according to Cable, Wire, and Hose
    Routing section in the Appendix chapter.
•   Tighten:
    Torque - Water Hose Clamp Screws: 3.0 N·m (0.31 kgf·m,
               27 in·lb)
• Install the removed parts.
• Check the
  Fill the coolant (see Coolant Change(2-22)).
•              cooling system for leaks.
