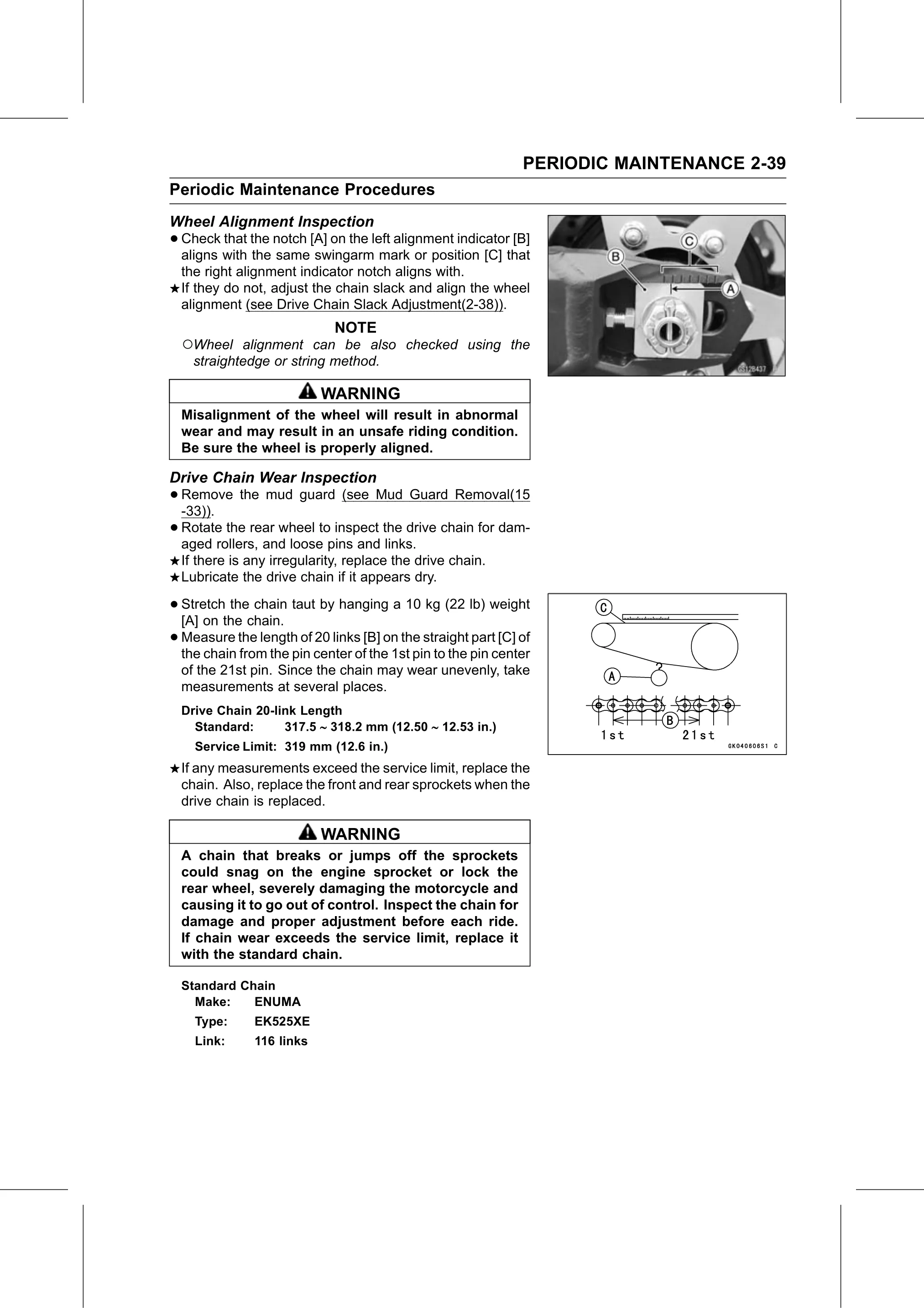

PERIODIC MAINTENANCE 2-39
Periodic Maintenance Procedures
Wheel Alignment Inspection
• Check  that the notch [A] on the left alignment indicator [B]
  aligns with the same swingarm mark or position [C] that
  the right alignment indicator notch aligns with.
  If they do not, adjust the chain slack and align the wheel
  alignment (see Drive Chain Slack Adjustment(2-38)).
                              NOTE
  ○Wheel alignment can be also checked using the
   straightedge or string method.

                           WARNING
  Misalignment of the wheel will result in abnormal
  wear and may result in an unsafe riding condition.
  Be sure the wheel is properly aligned.

Drive Chain Wear Inspection
• Remove
  -33)).
            the mud guard (see Mud Guard Removal(15

• Rotate the rear wheel to inspect the drive chain for dam-
  aged rollers, and loose pins and links.
  If there is any irregularity, replace the drive chain.
  Lubricate the drive chain if it appears dry.

• Stretch the chain taut by hanging a 10 kg (22 lb) weight
  [A] on the chain.
• Measure   the length of 20 links [B] on the straight part [C] of
  the chain from the pin center of the 1st pin to the pin center
  of the 21st pin. Since the chain may wear unevenly, take
  measurements at several places.
  Drive Chain 20-link Length
    Standard:      317.5  318.2 mm (12.50  12.53 in.)
    Service Limit: 319 mm (12.6 in.)
  If any measurements exceed the service limit, replace the
  chain. Also, replace the front and rear sprockets when the
  drive chain is replaced.

                           WARNING
  A chain that breaks or jumps off the sprockets
  could snag on the engine sprocket or lock the
  rear wheel, severely damaging the motorcycle and
  causing it to go out of control. Inspect the chain for
  damage and proper adjustment before each ride.
  If chain wear exceeds the service limit, replace it
  with the standard chain.

  Standard Chain
    Make:    ENUMA
    Type:      EK525XE
    Link:      116 links
