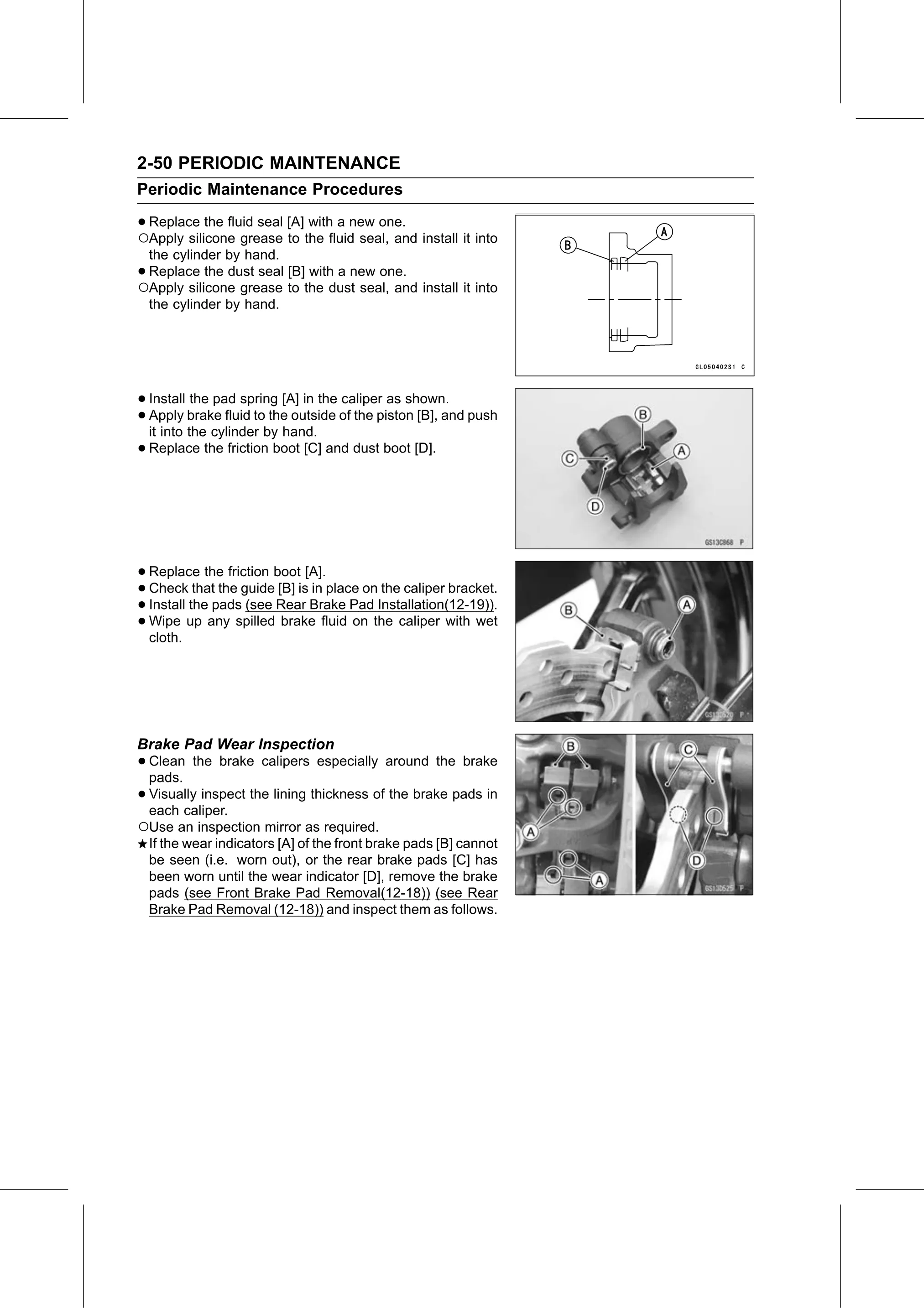

2-50 PERIODIC MAINTENANCE
Periodic Maintenance Procedures

•○Replace   the fluid seal [A] with a new one.
  Apply silicone grease to the fluid seal, and install it into
 the cylinder by hand.
•Replace the dust seal [B] with a new one.
○Apply silicone grease to the dust seal, and install it into
 the cylinder by hand.

• Install  the pad spring [A] in the caliper as shown.
• it into the cylinder
  Apply   brake  fluid to the outside of the piston [B], and push
                         by hand.
• Replace    the  friction boot [C] and dust boot [D].

• Replace    the friction boot [A].
• Install the pads
  Check    that the guide [B] is in place on the caliper bracket.
• Wipe up any spilled(see Rear Brake Pad Installation(12-19)).
• cloth.                   brake fluid on the caliper with wet

Brake Pad Wear Inspection
• Clean
  pads.
         the brake calipers especially around the brake

• Visually inspect the lining thickness of the brake pads in
  each caliper.
○Use an inspection mirror as required.
    If the wear indicators [A] of the front brake pads [B] cannot
    be seen (i.e. worn out), or the rear brake pads [C] has
    been worn until the wear indicator [D], remove the brake
    pads (see Front Brake Pad Removal(12-18)) (see Rear
    Brake Pad Removal (12-18)) and inspect them as follows.
