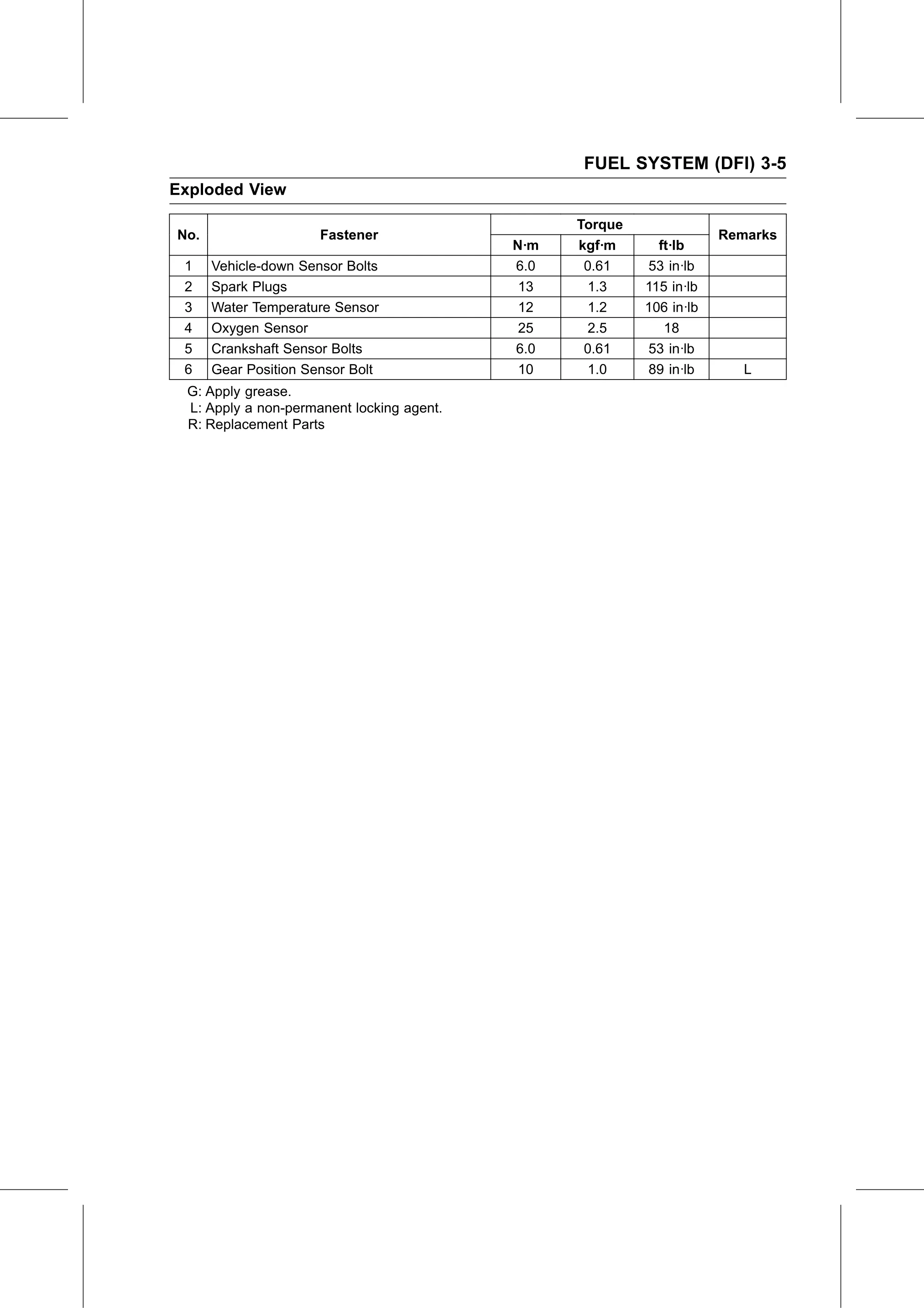

FUEL SYSTEM (DFI) 3-5
Exploded View

                                                 Torque
No.                   Fastener                                        Remarks
                                           N·m   kgf·m      ft·lb
 1    Vehicle-down Sensor Bolts            6.0    0.61    53 in·lb
 2    Spark Plugs                           13    1.3     115 in·lb
 3    Water Temperature Sensor              12    1.2     106 in·lb
 4    Oxygen Sensor                         25    2.5        18
 5    Crankshaft Sensor Bolts              6.0    0.61    53 in·lb
 6    Gear Position Sensor Bolt             10    1.0     89 in·lb       L
 G: Apply grease.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
