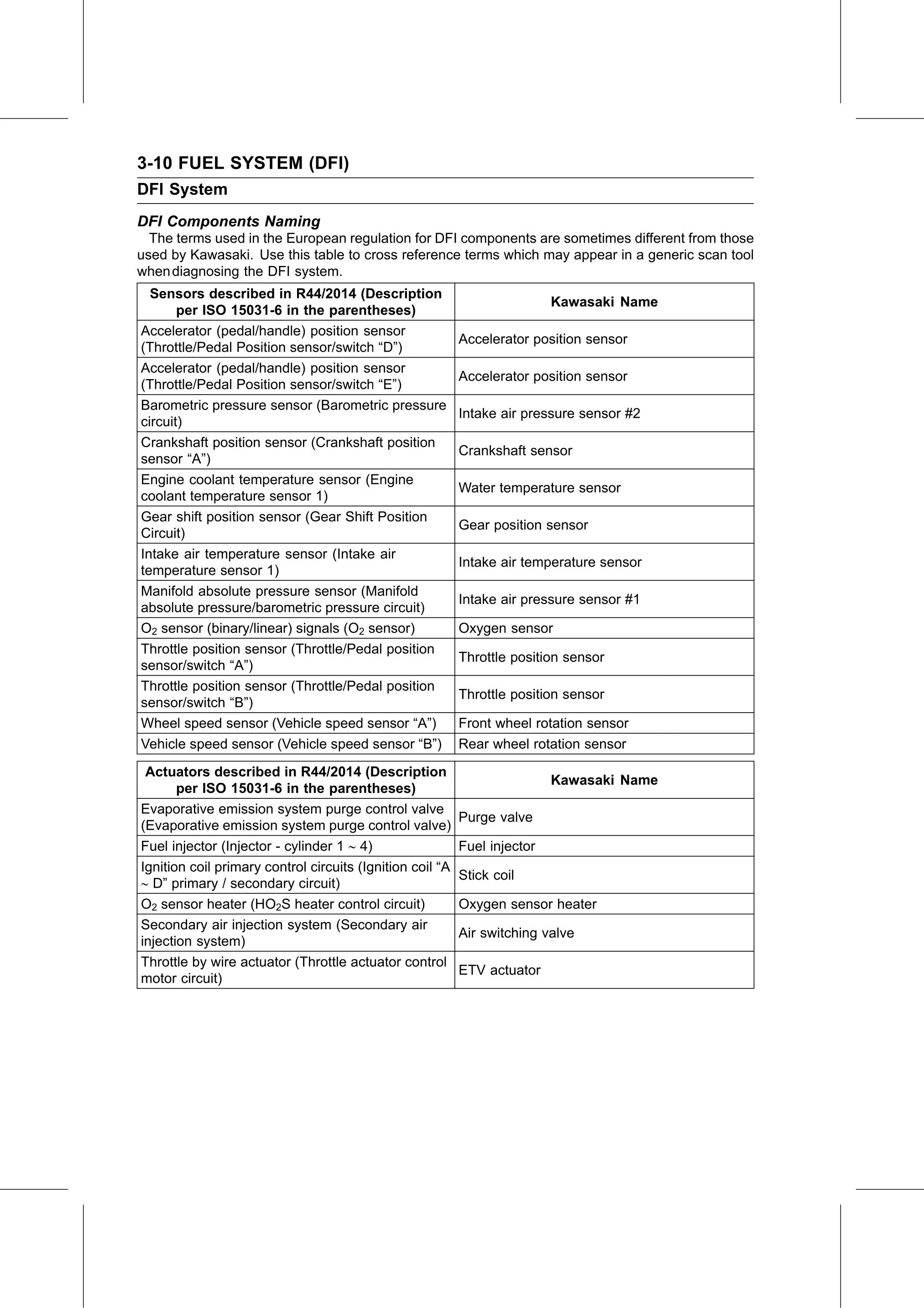

3-10 FUEL SYSTEM (DFI)
DFI System
DFI Components Naming
  The terms used in the European regulation for DFI components are sometimes different from those
used by Kawasaki. Use this table to cross reference terms which may appear in a generic scan tool
when diagnosing the DFI system.
  Sensors described in R44/2014 (Description
                                                                   Kawasaki Name
       per ISO 15031-6 in the parentheses)
Accelerator (pedal/handle) position sensor
                                                    Accelerator position sensor
(Throttle/Pedal Position sensor/switch “D”)
Accelerator (pedal/handle) position sensor
                                                    Accelerator position sensor
(Throttle/Pedal Position sensor/switch “E”)
Barometric pressure sensor (Barometric pressure
                                                    Intake air pressure sensor #2
circuit)
Crankshaft position sensor (Crankshaft position
                                                    Crankshaft sensor
sensor “A”)
Engine coolant temperature sensor (Engine
                                                    Water temperature sensor
coolant temperature sensor 1)
Gear shift position sensor (Gear Shift Position
                                                    Gear position sensor
Circuit)
Intake air temperature sensor (Intake air
                                                    Intake air temperature sensor
temperature sensor 1)
Manifold absolute pressure sensor (Manifold
                                                    Intake air pressure sensor #1
absolute pressure/barometric pressure circuit)
O2 sensor (binary/linear) signals (O2 sensor)       Oxygen sensor
Throttle position sensor (Throttle/Pedal position
                                                    Throttle position sensor
sensor/switch “A”)
Throttle position sensor (Throttle/Pedal position
                                                    Throttle position sensor
sensor/switch “B”)
Wheel speed sensor (Vehicle speed sensor “A”)       Front wheel rotation sensor
Vehicle speed sensor (Vehicle speed sensor “B”)     Rear wheel rotation sensor

 Actuators described in R44/2014 (Description
                                                                        Kawasaki Name
       per ISO 15031-6 in the parentheses)
Evaporative emission system purge control valve
                                                         Purge valve
(Evaporative emission system purge control valve)
Fuel injector (Injector - cylinder 1  4)                Fuel injector
Ignition coil primary control circuits (Ignition coil “A
                                                         Stick coil
 D” primary / secondary circuit)
O2 sensor heater (HO2S heater control circuit)           Oxygen sensor heater
Secondary air injection system (Secondary air
                                                         Air switching valve
injection system)
Throttle by wire actuator (Throttle actuator control
                                                         ETV actuator
motor circuit)
