3-20 FUEL SYSTEM (DFI)

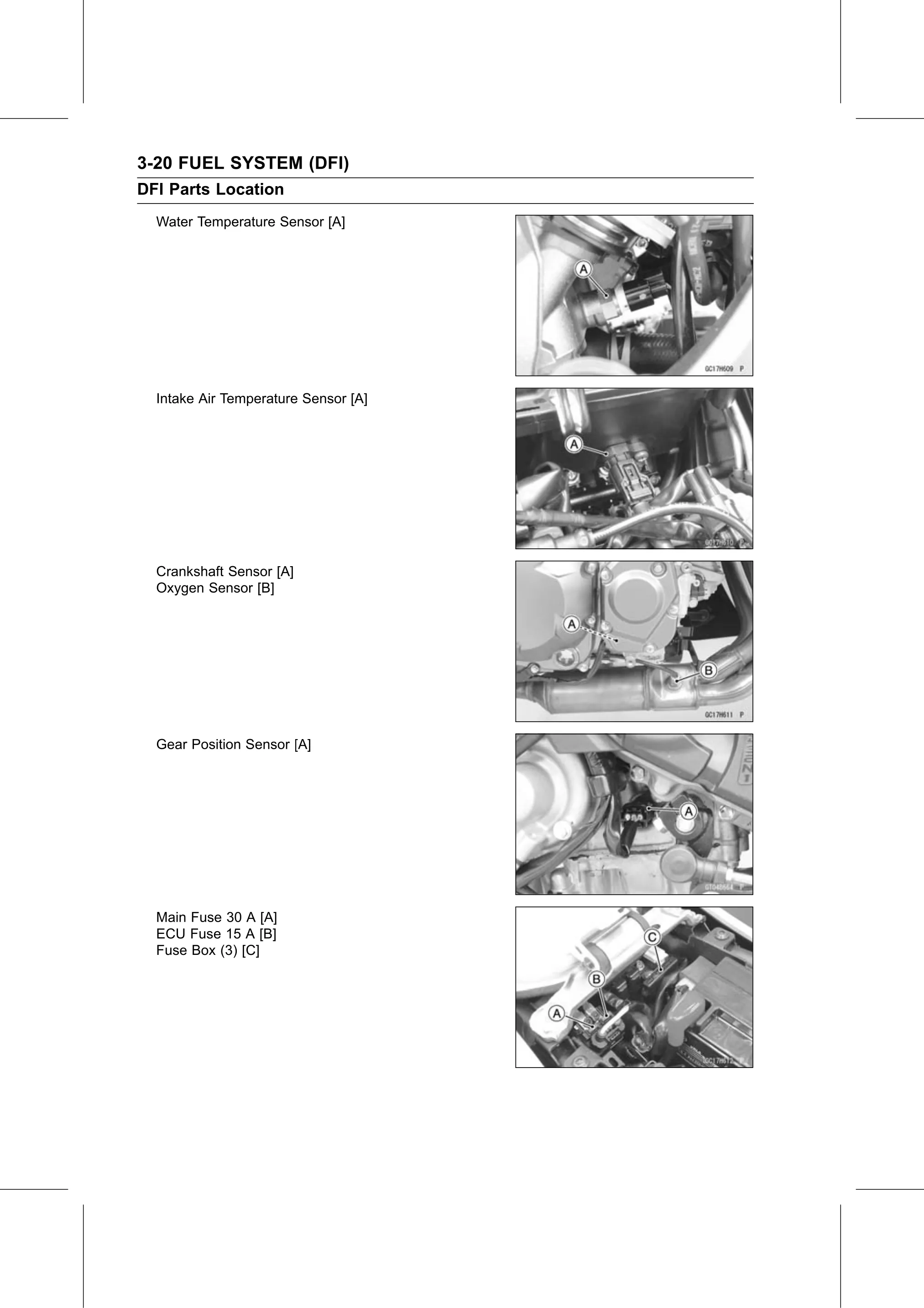

DFI Parts Location
  Water Temperature Sensor [A]

  Intake Air Temperature Sensor [A]

  Crankshaft Sensor [A]
  Oxygen Sensor [B]

  Gear Position Sensor [A]

  Main Fuse 30 A [A]
  ECU Fuse 15 A [B]
  Fuse Box (3) [C]
