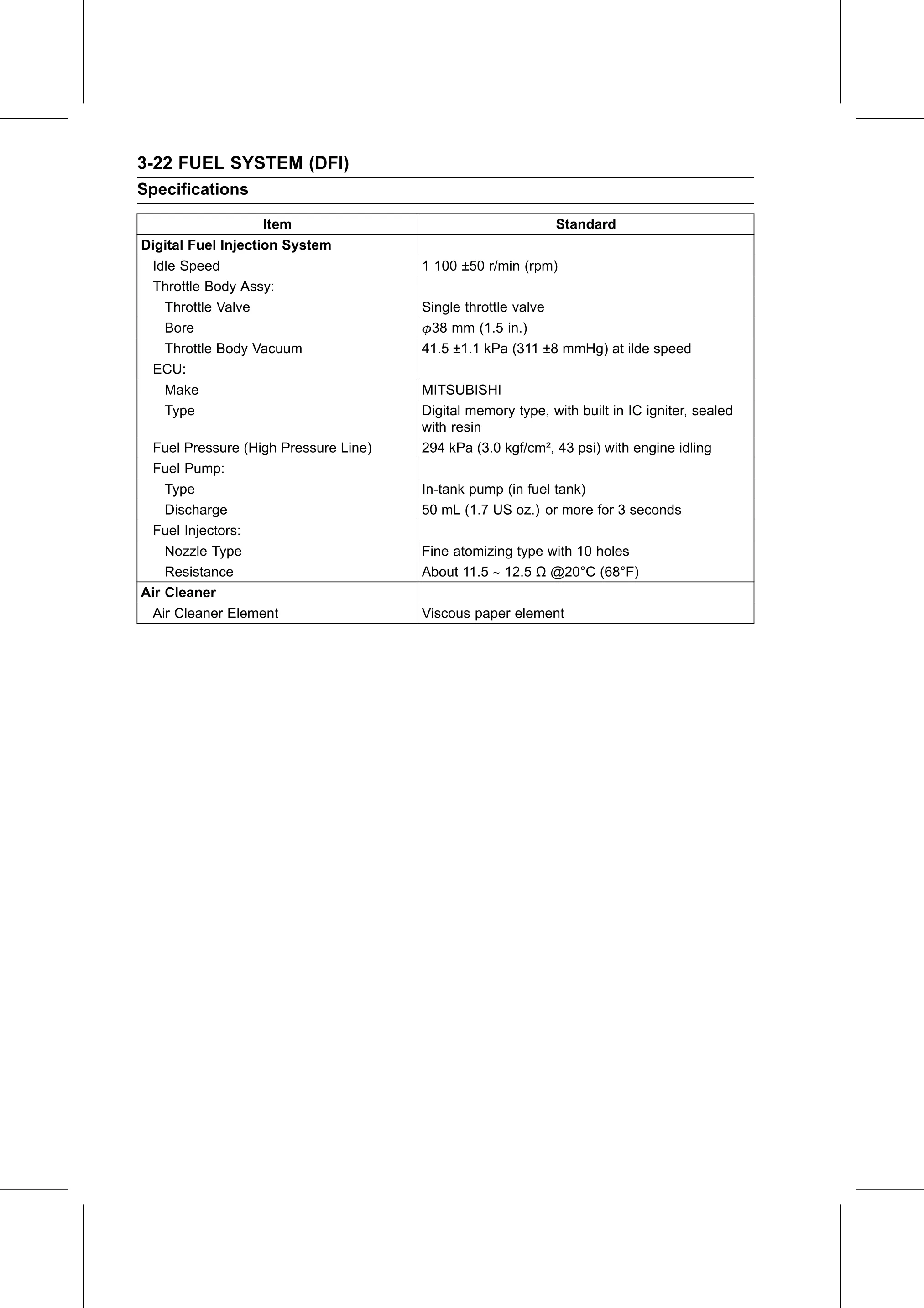

3-22 FUEL SYSTEM (DFI)
Specifications

                    Item                                    Standard
Digital Fuel Injection System
 Idle Speed                           1 100 ±50 r/min (rpm)
 Throttle Body Assy:
   Throttle Valve                     Single throttle valve
   Bore                                38 mm (1.5 in.)
   Throttle Body Vacuum               41.5 ±1.1 kPa (311 ±8 mmHg) at ilde speed
 ECU:
   Make                               MITSUBISHI
   Type                               Digital memory type, with built in IC igniter, sealed
                                      with resin
 Fuel Pressure (High Pressure Line)   294 kPa (3.0 kgf/cm², 43 psi) with engine idling
 Fuel Pump:
    Type                              In-tank pump (in fuel tank)
    Discharge                         50 mL (1.7 US oz.) or more for 3 seconds
 Fuel Injectors:
    Nozzle Type                       Fine atomizing type with 10 holes
    Resistance                        About 11.5  12.5 Ω @20°C (68°F)
Air Cleaner
 Air Cleaner Element                  Viscous paper element
