FUEL SYSTEM (DFI) 3-49
Fuel Pump
Fuel Pump Relay Removal/Installation
○The fuel pump relay is built in the relay box [A].
• Refer to the Relay Box Removal (see Relay Box Re-
  moval/Installation(16-117)).

Fuel Pump Relay Inspection
• Refer to the Relay Circuit Inspection (see Relay Circuit
  Inspection(16-117)).

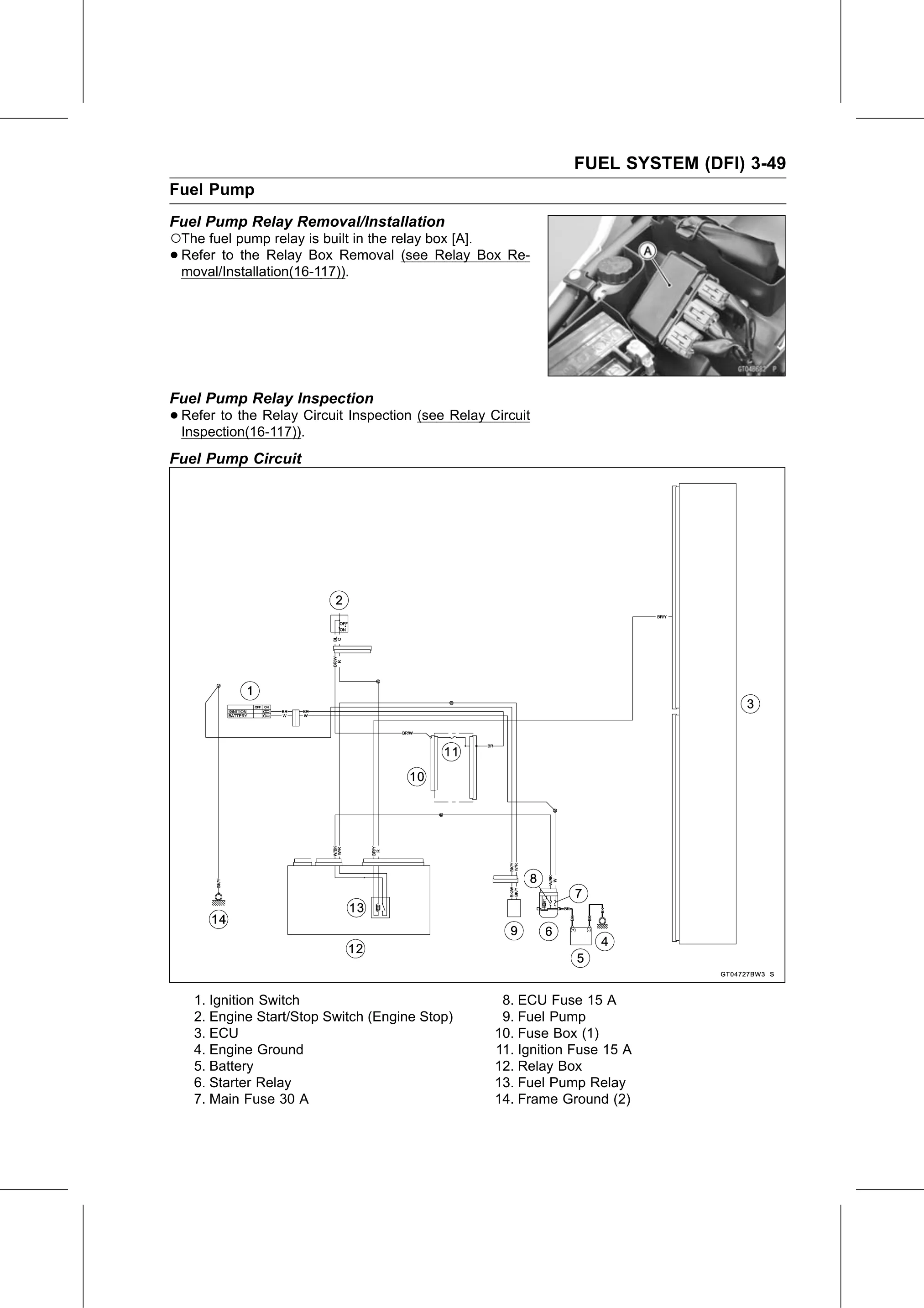

Fuel Pump Circuit

    1. Ignition Switch                                 8. ECU Fuse 15 A
    2. Engine Start/Stop Switch (Engine Stop)          9. Fuel Pump
    3. ECU                                            10. Fuse Box (1)
    4. Engine Ground                                  11. Ignition Fuse 15 A
    5. Battery                                        12. Relay Box
    6. Starter Relay                                  13. Fuel Pump Relay
    7. Main Fuse 30 A                                 14. Frame Ground (2)
