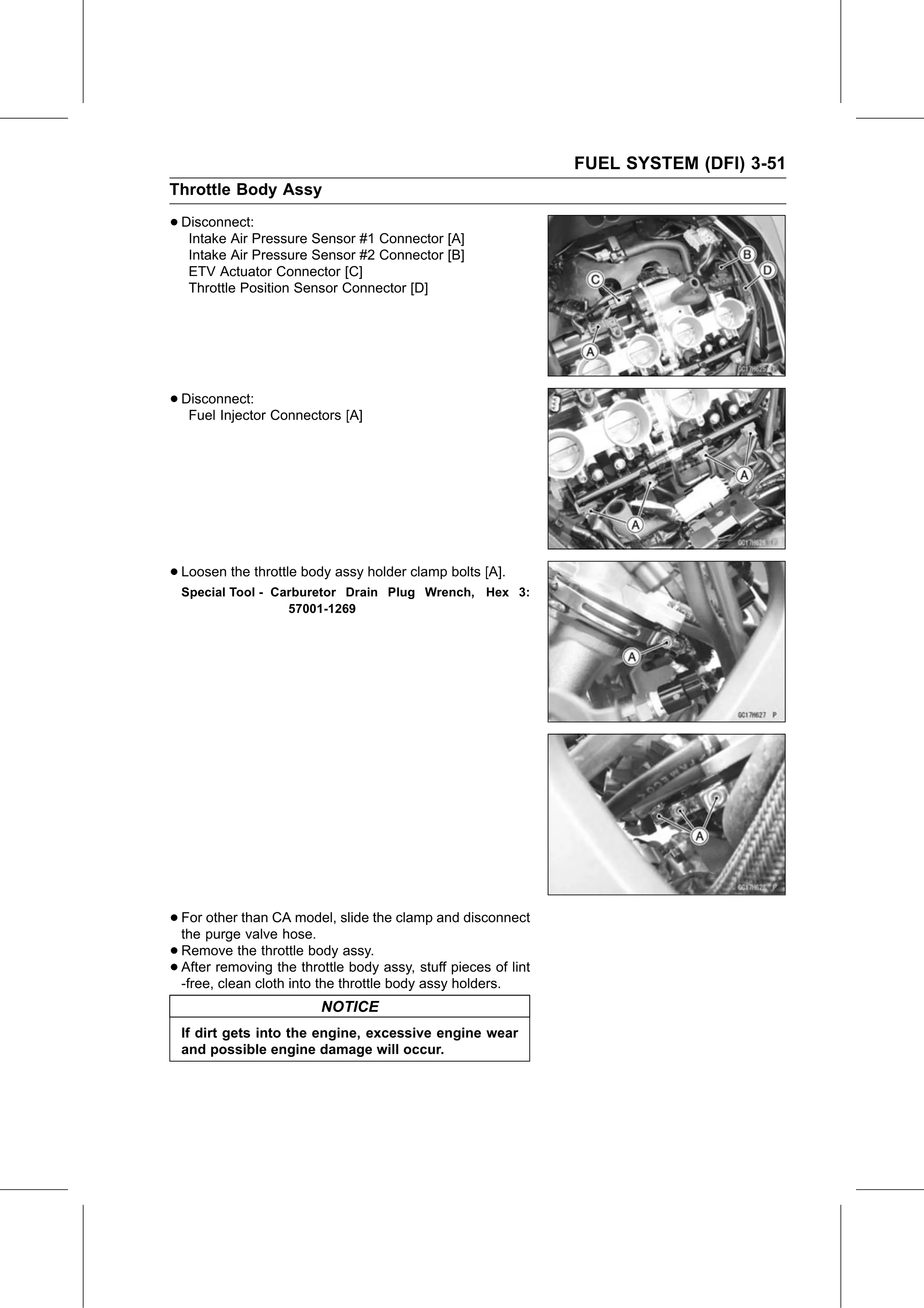

FUEL SYSTEM (DFI) 3-51
Throttle Body Assy

• Disconnect:
   Intake Air Pressure Sensor #1 Connector [A]
   Intake Air Pressure Sensor #2 Connector [B]
   ETV Actuator Connector [C]
   Throttle Position Sensor Connector [D]

• Disconnect:
   Fuel Injector Connectors [A]

• Loosen the throttle body assy holder clamp bolts [A].
  Special Tool - Carburetor Drain Plug Wrench, Hex 3:
                   57001-1269

• For other than CA model, slide the clamp and disconnect
  the purge valve hose.
• Remove    the throttle body assy.
• -free, clean cloththeintothrottle
  After removing                    body assy, stuff pieces of lint
                             the throttle body assy holders.
                            NOTICE
  If dirt gets into the engine, excessive engine wear
  and possible engine damage will occur.
