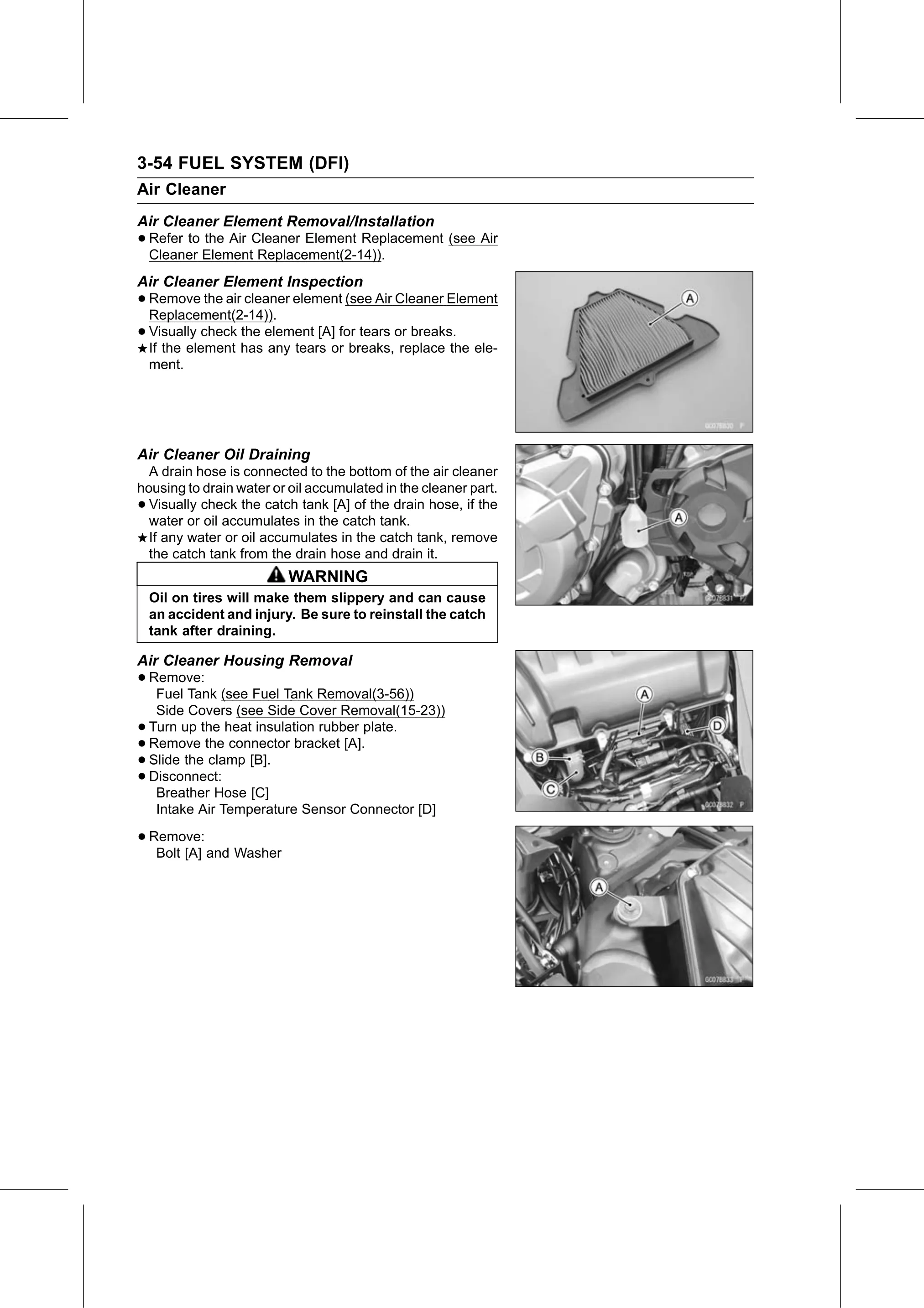

3-54 FUEL SYSTEM (DFI)
Air Cleaner
Air Cleaner Element Removal/Installation
• Refer to the Air Cleaner Element Replacement (see Air
  Cleaner Element Replacement(2-14)).
Air Cleaner Element Inspection
• Remove    the air cleaner element (see Air Cleaner Element
  Replacement(2-14)).
• Visually check the element [A] for tears or breaks.
  If the element has any tears or breaks, replace the ele-
    ment.

Air Cleaner Oil Draining
  A drain hose is connected to the bottom of the air cleaner
housing to drain water or oil accumulated in the cleaner part.
• Visually check the catch tank [A] of the drain hose, if the
  water or oil accumulates in the catch tank.
  If any water or oil accumulates in the catch tank, remove
  the catch tank from the drain hose and drain it.
                          WARNING
    Oil on tires will make them slippery and can cause
    an accident and injury. Be sure to reinstall the catch
    tank after draining.

Air Cleaner Housing Removal
• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
     Side Covers (see Side Cover Removal(15-23))
•   Turn up the heat insulation rubber plate.
•   Remove the connector bracket [A].
•   Slide the clamp [B].
•   Disconnect:
     Breather Hose [C]
     Intake Air Temperature Sensor Connector [D]

• Remove:
   Bolt [A] and Washer
