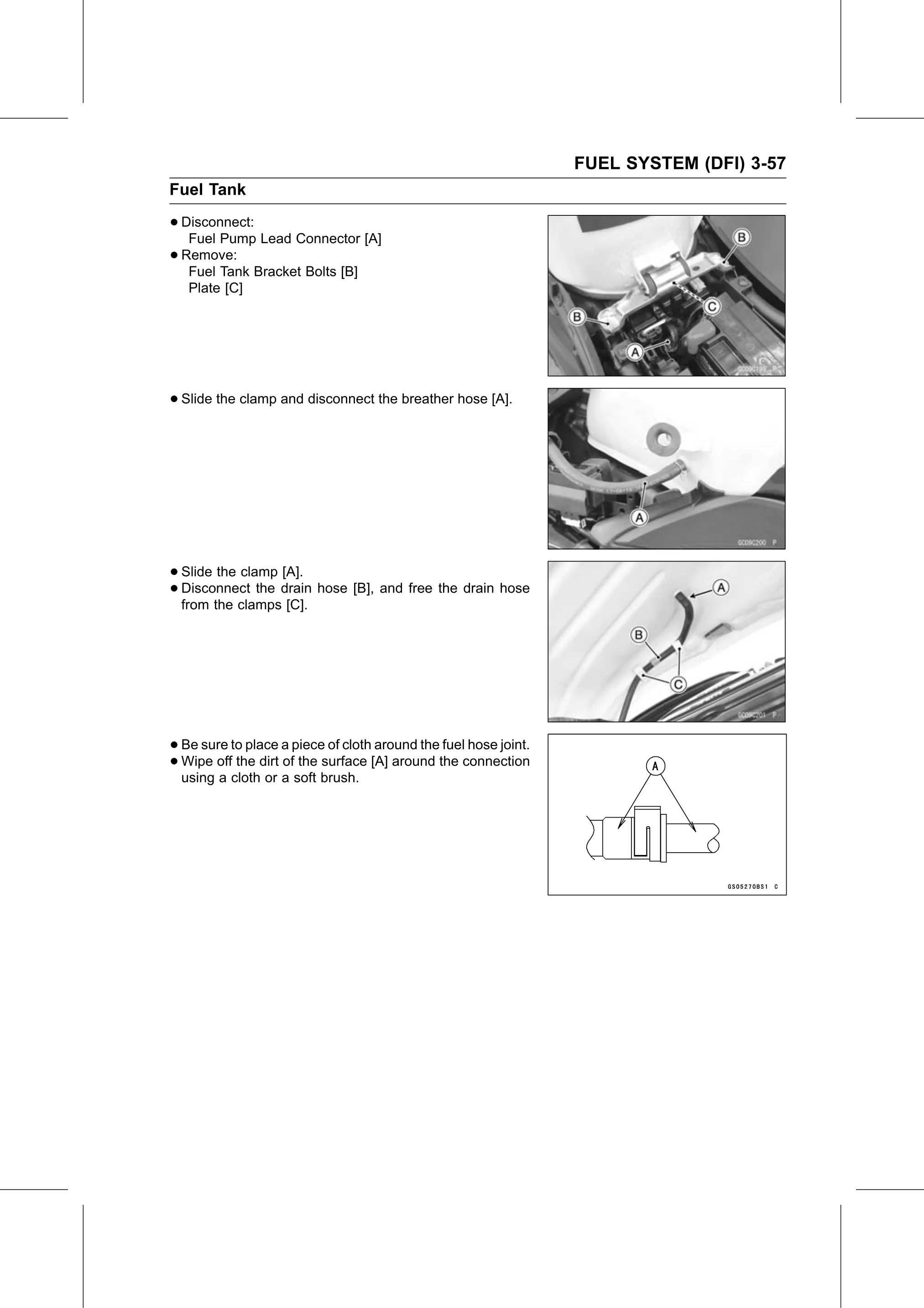

FUEL SYSTEM (DFI) 3-57
Fuel Tank

• Disconnect:
   Fuel Pump Lead Connector [A]
• Remove:
   Fuel Tank Bracket Bolts [B]
   Plate [C]

• Slide the clamp and disconnect the breather hose [A].

• Slide the clamp [A].
• from the clamps
  Disconnect   the drain hose [B], and free the drain hose
                    [C].

• Be sure to place a piece of cloth around the fuel hose joint.
• Wipe  off the dirt of the surface [A] around the connection
  using a cloth or a soft brush.
