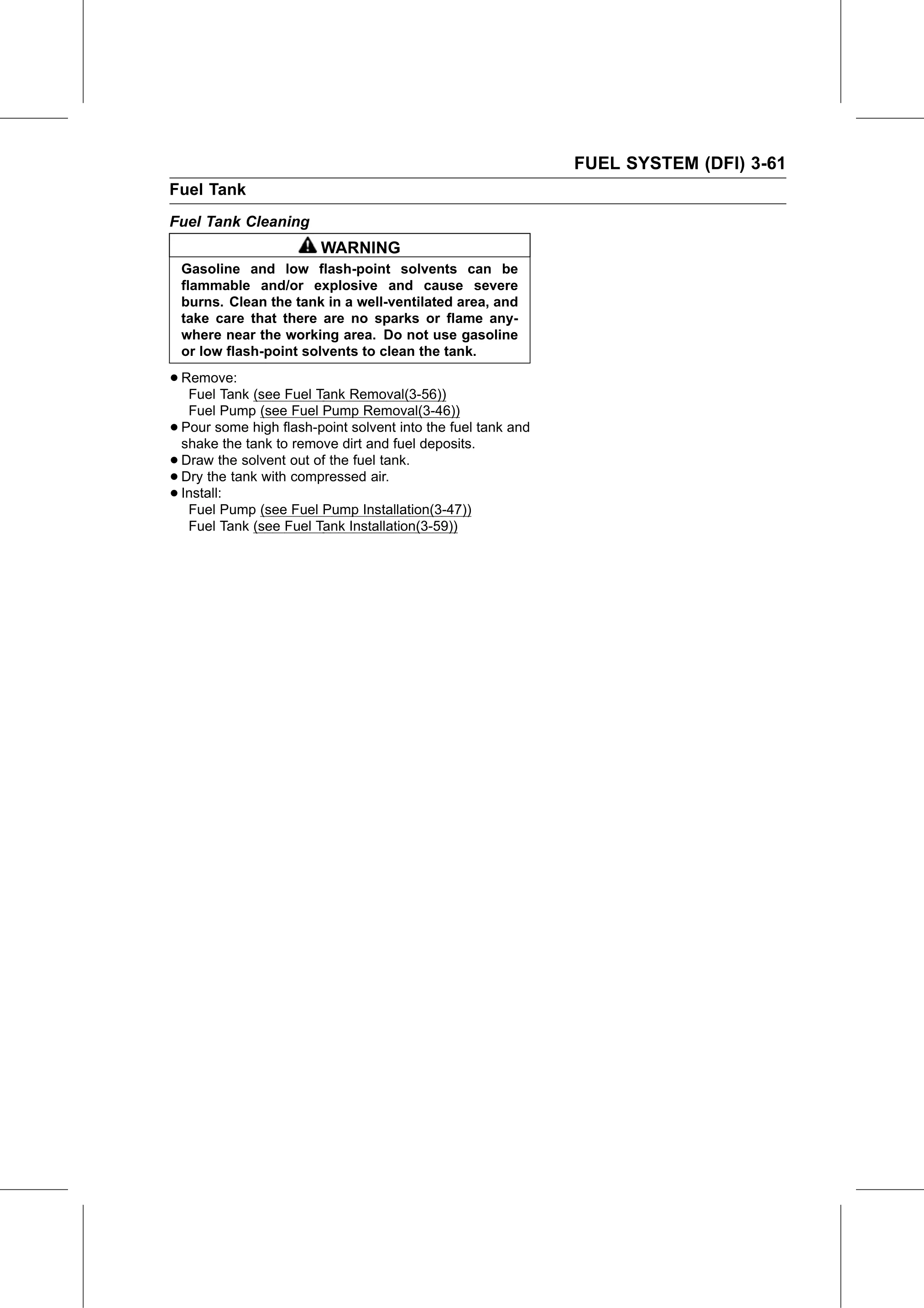

Service Manual (KLZ1000C) — page 145 of 762

Text on this page

FUEL SYSTEM (DFI) 3-61
Fuel Tank
Fuel Tank Cleaning
                          WARNING
    Gasoline and low flash-point solvents can be
    flammable and/or explosive and cause severe
    burns. Clean the tank in a well-ventilated area, and
    take care that there are no sparks or flame any-
    where near the working area. Do not use gasoline
    or low flash-point solvents to clean the tank.

• Remove:
   Fuel Tank (see Fuel Tank Removal(3-56))
     Fuel Pump (see Fuel Pump Removal(3-46))
•   Pour some high flash-point solvent into the fuel tank and
    shake the tank to remove dirt and fuel deposits.
•   Draw the solvent out of the fuel tank.
•   Dry the tank with compressed air.
•   Install:
     Fuel Pump (see Fuel Pump Installation(3-47))
     Fuel Tank (see Fuel Tank Installation(3-59))
