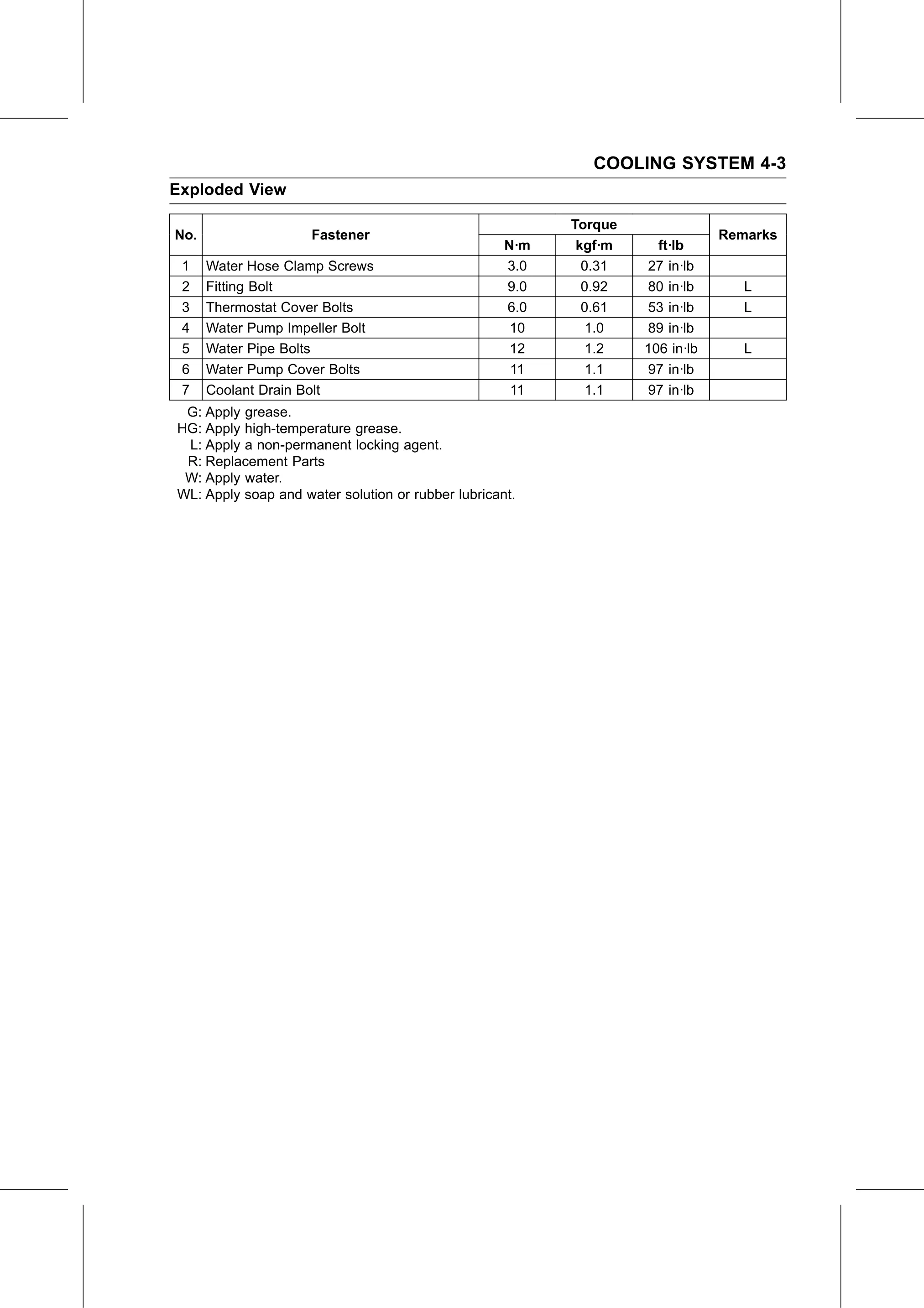

COOLING SYSTEM 4-3
Exploded View

                                                          Torque
No.                  Fastener                                                  Remarks
                                                    N·m    kgf·m     ft·lb
 1    Water Hose Clamp Screws                       3.0     0.31   27 in·lb
 2    Fitting Bolt                                  9.0     0.92   80 in·lb       L
 3    Thermostat Cover Bolts                        6.0     0.61   53 in·lb       L
 4    Water Pump Impeller Bolt                       10      1.0   89 in·lb
 5    Water Pipe Bolts                               12      1.2   106 in·lb      L
 6    Water Pump Cover Bolts                         11      1.1   97 in·lb
 7    Coolant Drain Bolt                             11      1.1   97 in·lb
 G: Apply grease.
HG: Apply high-temperature grease.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
 W: Apply water.
WL: Apply soap and water solution or rubber lubricant.
