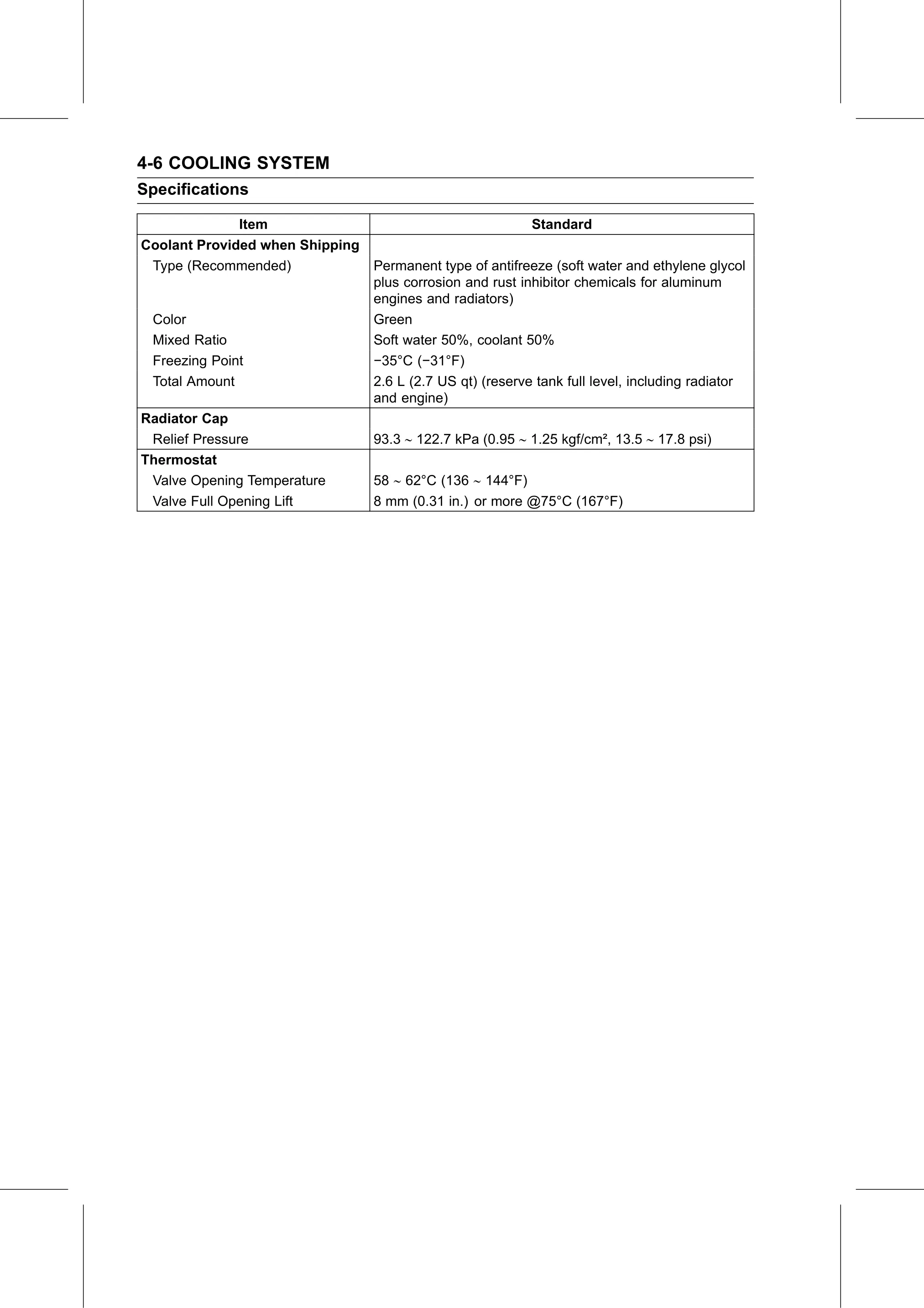

4-6 COOLING SYSTEM
Specifications

              Item                                         Standard
Coolant Provided when Shipping
 Type (Recommended)              Permanent type of antifreeze (soft water and ethylene glycol
                                 plus corrosion and rust inhibitor chemicals for aluminum
                                 engines and radiators)
 Color                           Green
 Mixed Ratio                     Soft water 50%, coolant 50%
 Freezing Point                  −35°C (−31°F)
 Total Amount                    2.6 L (2.7 US qt) (reserve tank full level, including radiator
                                 and engine)
Radiator Cap
 Relief Pressure                 93.3  122.7 kPa (0.95  1.25 kgf/cm², 13.5  17.8 psi)
Thermostat
 Valve Opening Temperature       58  62°C (136  144°F)
 Valve Full Opening Lift         8 mm (0.31 in.) or more @75°C (167°F)
