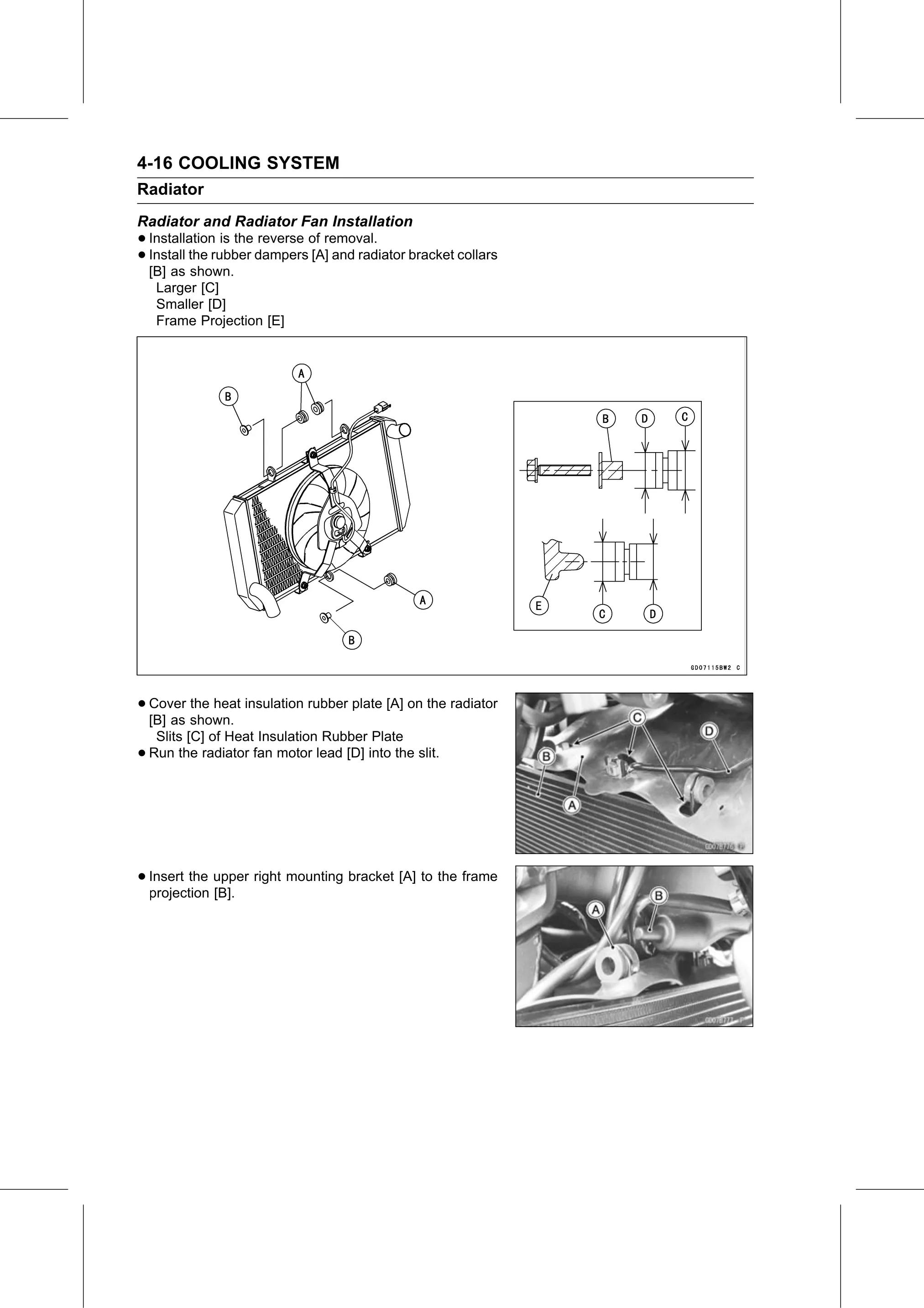

4-16 COOLING SYSTEM
Radiator
Radiator and Radiator Fan Installation
• Installation  is the reverse of removal.
• Install the rubber dampers [A] and radiator bracket collars
  [B] as shown.
     Larger [C]
     Smaller [D]
     Frame Projection [E]

• Cover  the heat insulation rubber plate [A] on the radiator
  [B] as shown.
     Slits [C] of Heat Insulation Rubber Plate
•   Run the radiator fan motor lead [D] into the slit.

• Insert the upper right mounting bracket [A] to the frame
  projection [B].
