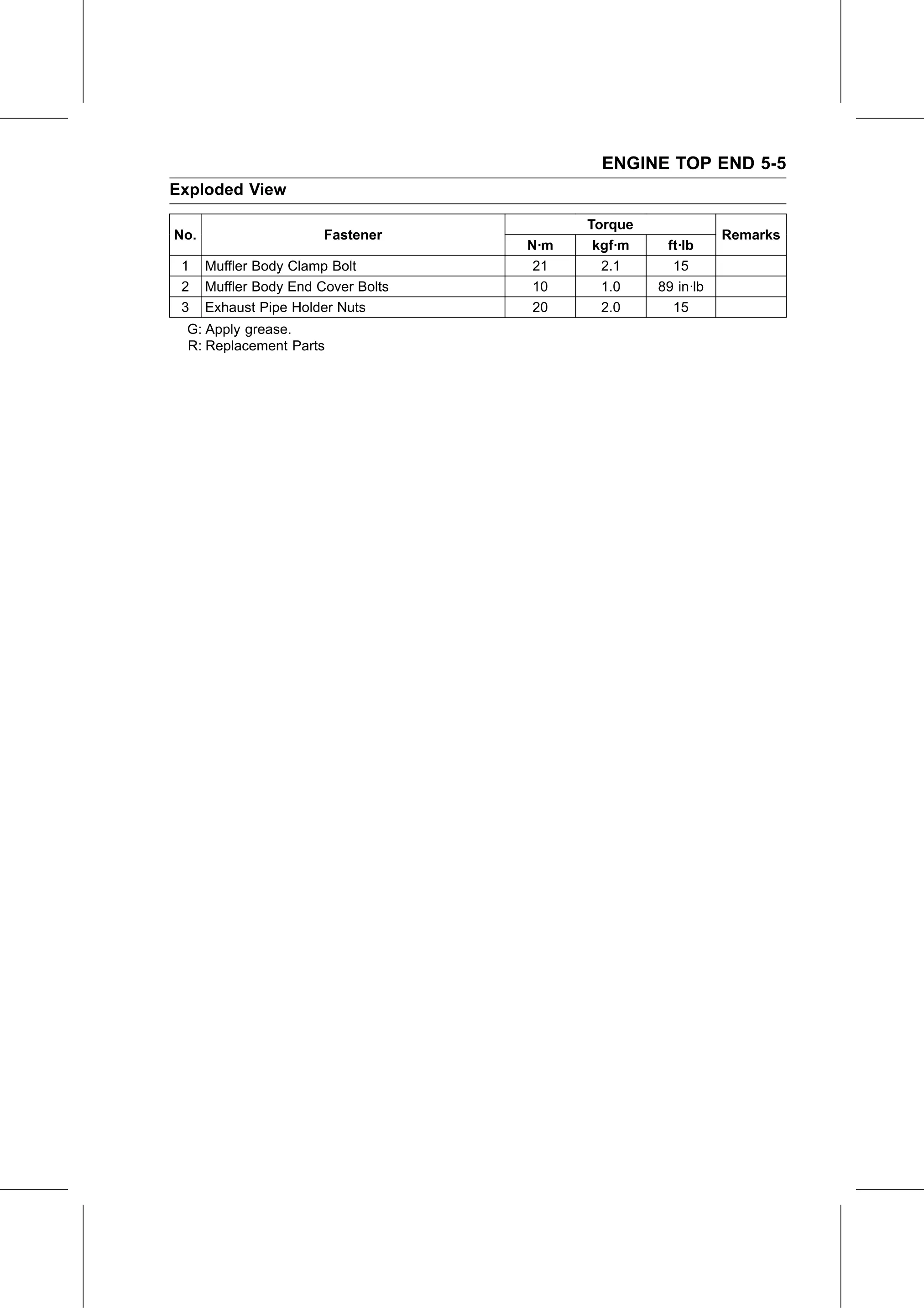

ENGINE TOP END 5-5
Exploded View

                                           Torque
No.                     Fastener                               Remarks
                                     N·m    kgf·m    ft·lb
 1    Muffler Body Clamp Bolt         21     2.1      15
 2    Muffler Body End Cover Bolts    10     1.0    89 in·lb
 3    Exhaust Pipe Holder Nuts        20     2.0      15
 G: Apply grease.
 R: Replacement Parts
