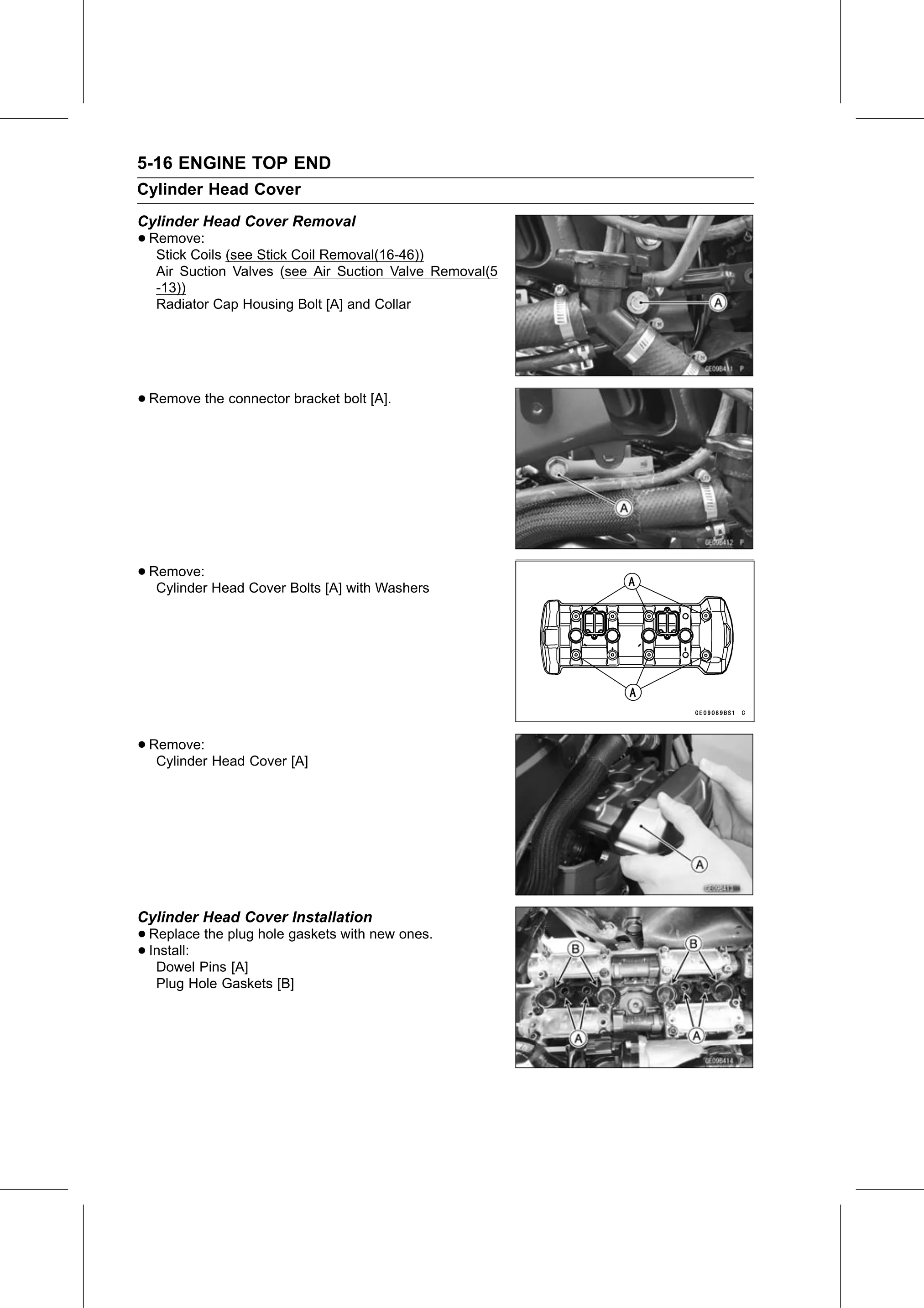

5-16 ENGINE TOP END
Cylinder Head Cover
Cylinder Head Cover Removal
• Remove:
   Stick Coils (see Stick Coil Removal(16-46))
   Air Suction Valves (see Air Suction Valve Removal(5
   -13))
   Radiator Cap Housing Bolt [A] and Collar

• Remove the connector bracket bolt [A].

• Remove:
   Cylinder Head Cover Bolts [A] with Washers

• Remove:
   Cylinder Head Cover [A]

Cylinder Head Cover Installation
• Replace  the plug hole gaskets with new ones.
• Dowel Pins [A]
  Install:

   Plug Hole Gaskets [B]
