5-22 ENGINE TOP END
Camshaft, Camshaft Chain

• Before installing the camshaft caps and upper chain
  guide, install the camshaft chain tensioner body
    temporarily (see Camshaft Chain Tensioner Installa-
    tion(5-18)).

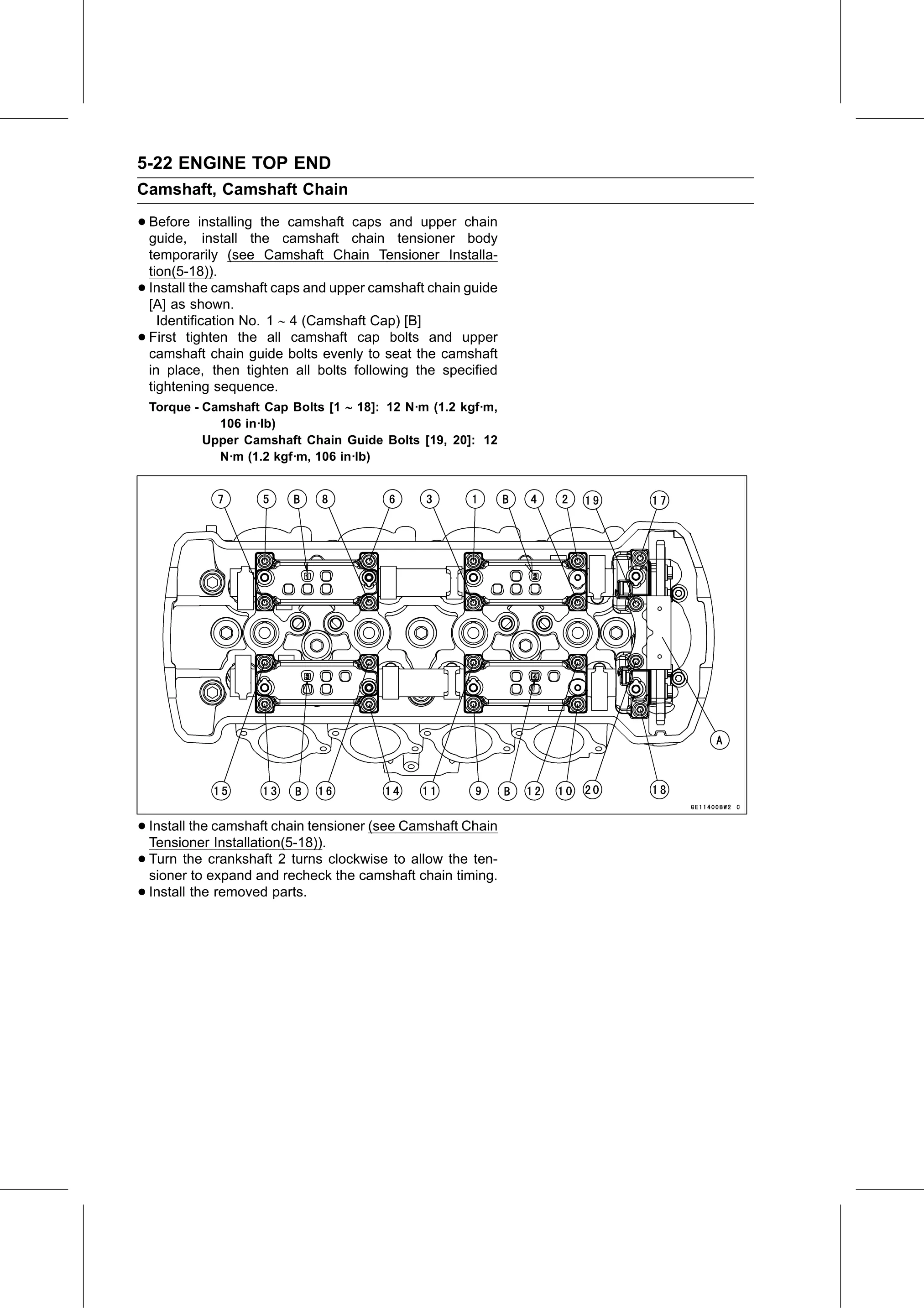

•   Install the camshaft caps and upper camshaft chain guide
    [A] as shown.
      Identification No. 1  4 (Camshaft Cap) [B]
•   First tighten the all camshaft cap bolts and upper
    camshaft chain guide bolts evenly to seat the camshaft
    in place, then tighten all bolts following the specified
    tightening sequence.
    Torque - Camshaft Cap Bolts [1  18]: 12 N·m (1.2 kgf·m,
               106 in·lb)
             Upper Camshaft Chain Guide Bolts [19, 20]: 12
               N·m (1.2 kgf·m, 106 in·lb)

• Install the camshaft chain tensioner (see Camshaft Chain
  Tensioner Installation(5-18)).
• Turn  the crankshaft 2 turns clockwise to allow the ten-
  sioner to expand and recheck the camshaft chain timing.
• Install the removed parts.
