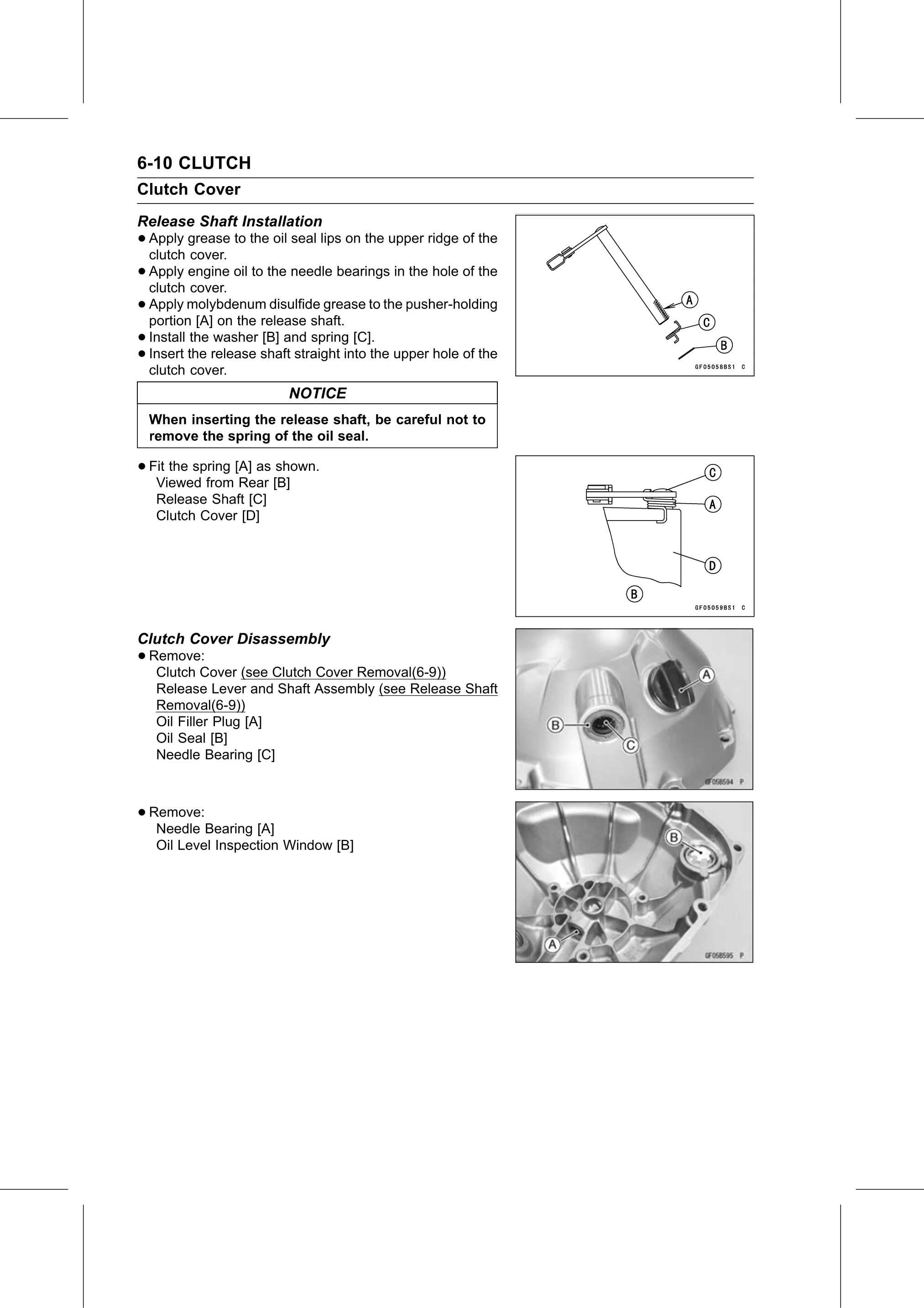

6-10 CLUTCH
Clutch Cover
Release Shaft Installation
• Apply   grease to the oil seal lips on the upper ridge of the
  clutch cover.
• Apply   engine oil to the needle bearings in the hole of the
  clutch cover.
• Apply   molybdenum disulfide grease to the pusher-holding
  portion [A] on the release shaft.
• Install  the washer [B] and spring [C].
• clutch cover.
  Insert  the release shaft straight into the upper hole of the

                          NOTICE
  When inserting the release shaft, be careful not to
  remove the spring of the oil seal.

• FitViewed
       the spring [A] as shown.
             from Rear [B]
   Release Shaft [C]
   Clutch Cover [D]

Clutch Cover Disassembly
• Remove:
   Clutch Cover (see Clutch Cover Removal(6-9))
   Release Lever and Shaft Assembly (see Release Shaft
   Removal(6-9))
   Oil Filler Plug [A]
   Oil Seal [B]
   Needle Bearing [C]

• Remove:
   Needle Bearing [A]
   Oil Level Inspection Window [B]
