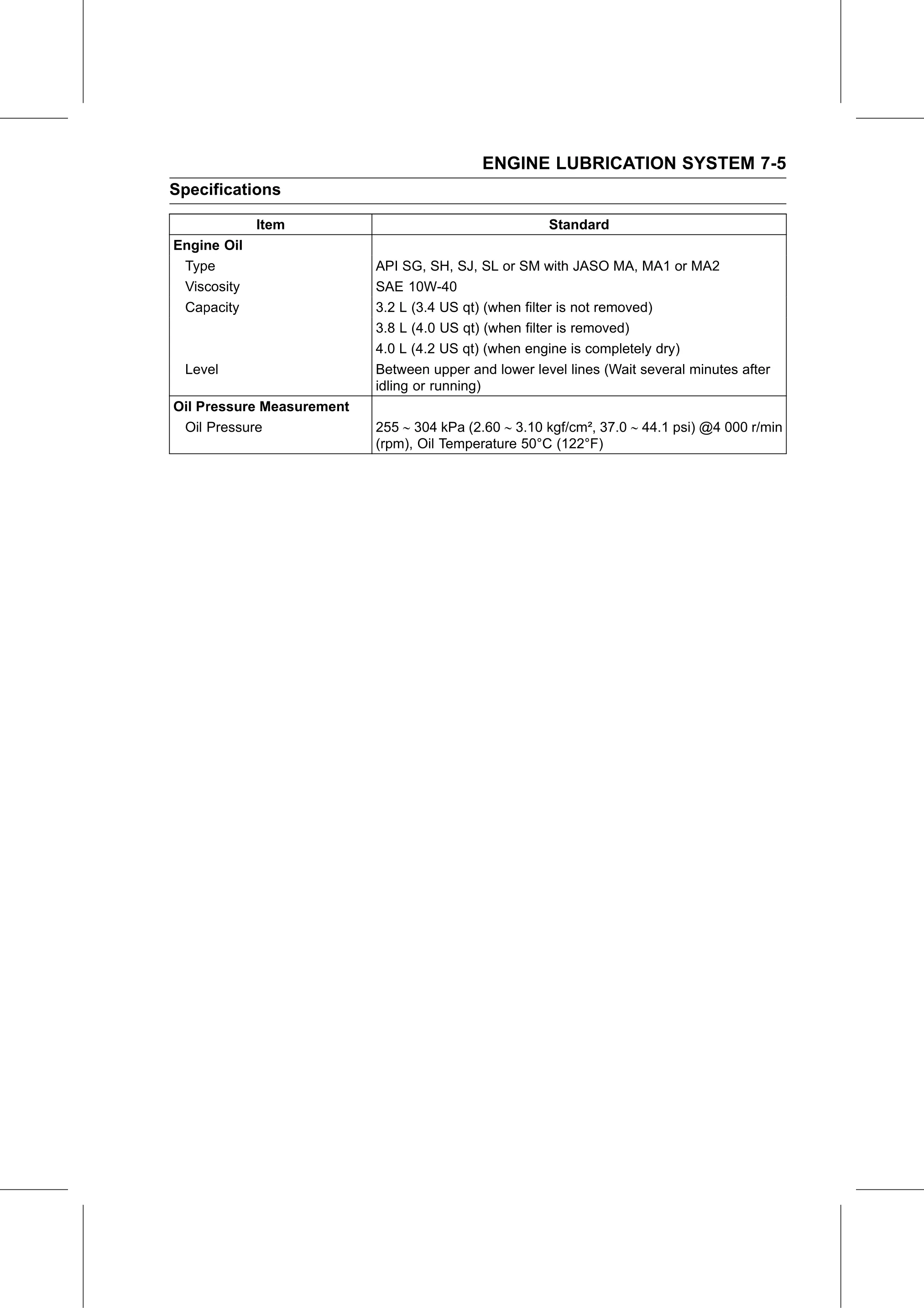

ENGINE LUBRICATION SYSTEM 7-5
Specifications

             Item                                     Standard
Engine Oil
 Type                      API SG, SH, SJ, SL or SM with JASO MA, MA1 or MA2
 Viscosity                 SAE 10W-40
 Capacity                  3.2 L (3.4 US qt) (when filter is not removed)
                           3.8 L (4.0 US qt) (when filter is removed)
                           4.0 L (4.2 US qt) (when engine is completely dry)
 Level                     Between upper and lower level lines (Wait several minutes after
                           idling or running)
Oil Pressure Measurement
 Oil Pressure              255  304 kPa (2.60  3.10 kgf/cm², 37.0  44.1 psi) @4 000 r/min
                           (rpm), Oil Temperature 50°C (122°F)
