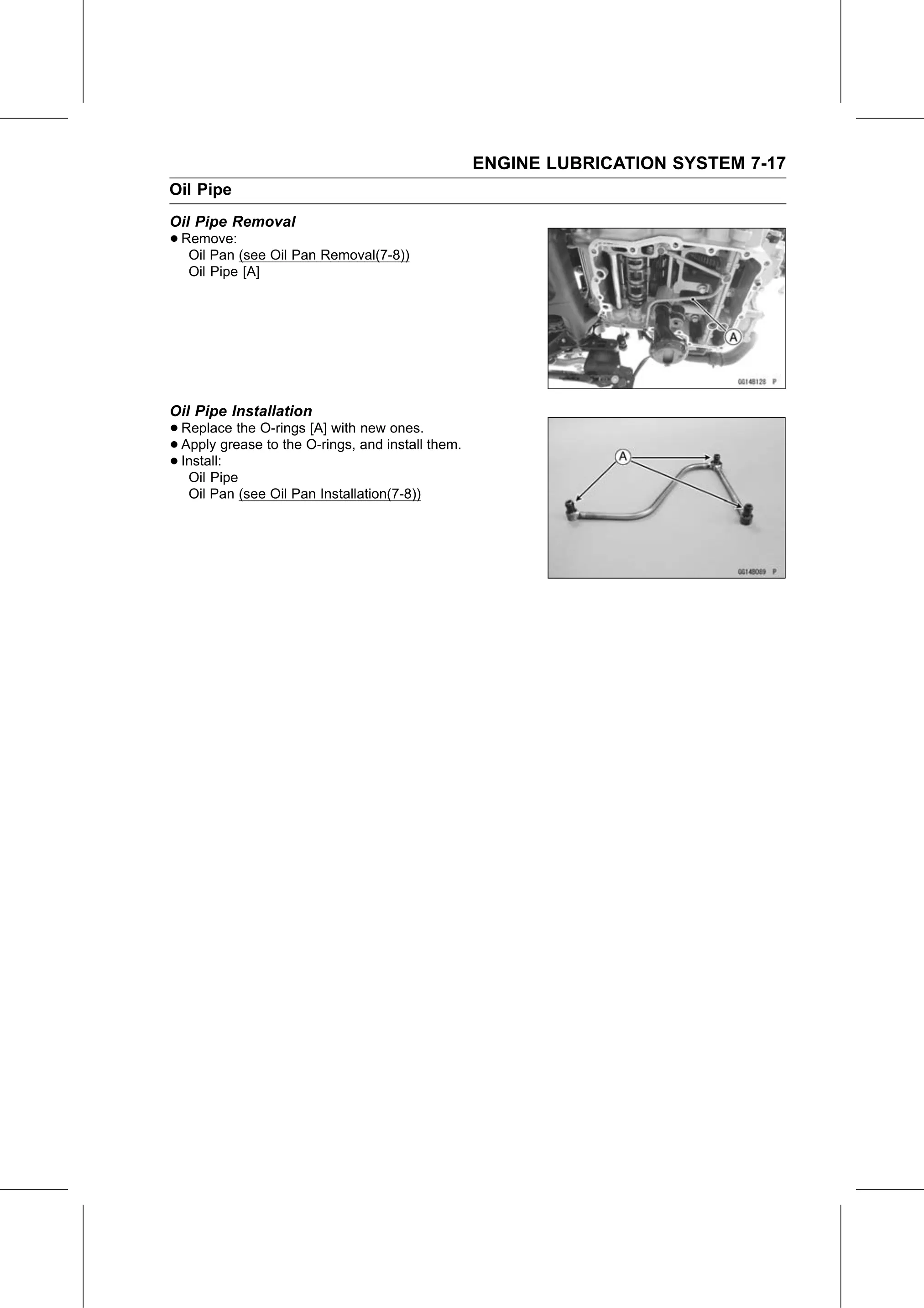

ENGINE LUBRICATION SYSTEM 7-17
Oil Pipe
Oil Pipe Removal
• Remove:
   Oil Pan (see Oil Pan Removal(7-8))
   Oil Pipe [A]

Oil Pipe Installation
• Replace   the O-rings [A] with new ones.
• Install:
  Apply   grease to the O-rings, and install them.
• Oil Pipe
   Oil Pan (see Oil Pan Installation(7-8))
