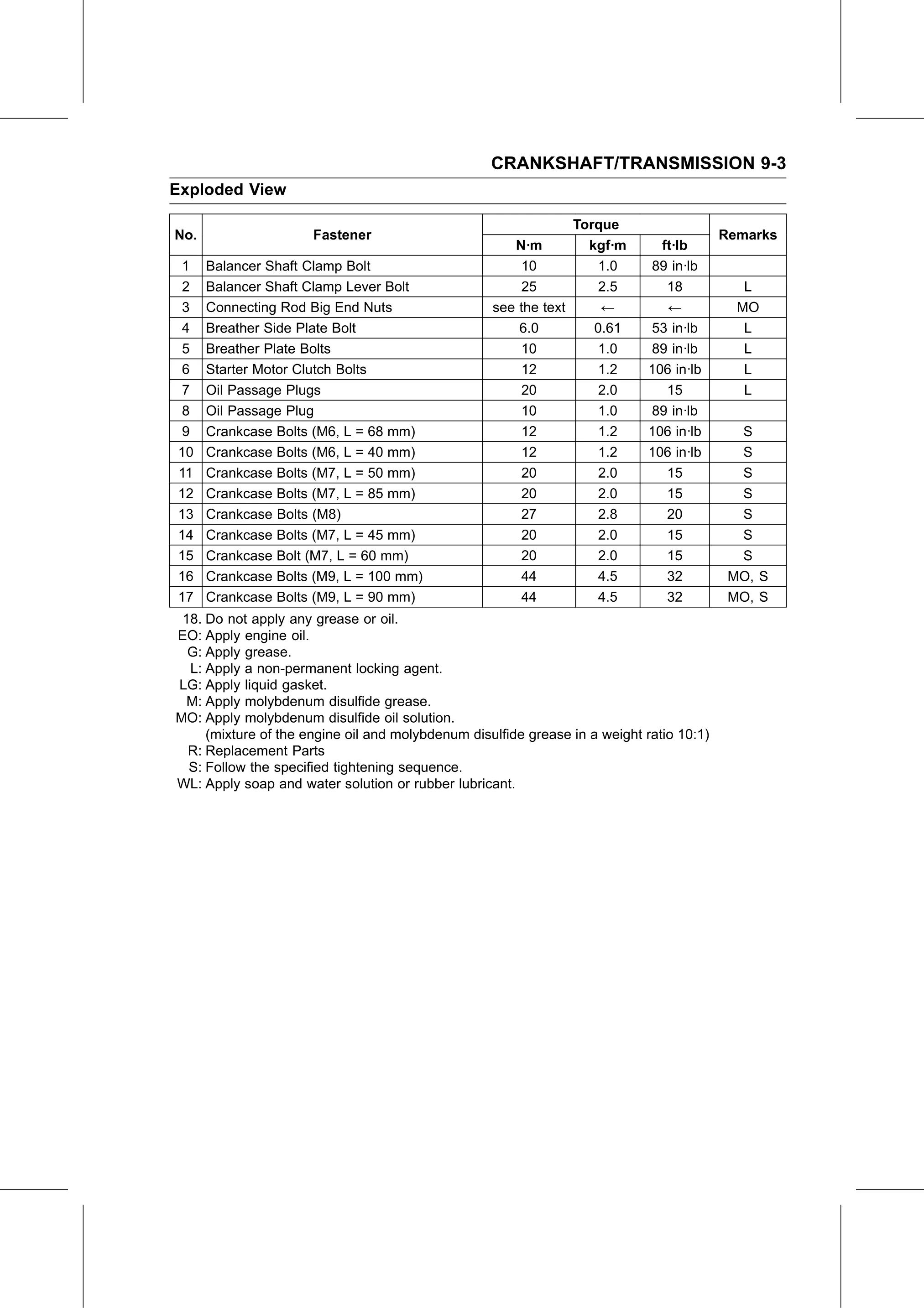

CRANKSHAFT/TRANSMISSION 9-3
Exploded View
Torque
No. Fastener Remarks
N·m kgf·m ft·lb
1 Balancer Shaft Clamp Bolt 10 1.0 89 in·lb
2 Balancer Shaft Clamp Lever Bolt 25 2.5 18 L
3 Connecting Rod Big End Nuts see the text ← ← MO
4 Breather Side Plate Bolt 6.0 0.61 53 in·lb L
5 Breather Plate Bolts 10 1.0 89 in·lb L
6 Starter Motor Clutch Bolts 12 1.2 106 in·lb L
7 Oil Passage Plugs 20 2.0 15 L
8 Oil Passage Plug 10 1.0 89 in·lb
9 Crankcase Bolts (M6, L = 68 mm) 12 1.2 106 in·lb S
10 Crankcase Bolts (M6, L = 40 mm) 12 1.2 106 in·lb S
11 Crankcase Bolts (M7, L = 50 mm) 20 2.0 15 S
12 Crankcase Bolts (M7, L = 85 mm) 20 2.0 15 S
13 Crankcase Bolts (M8) 27 2.8 20 S
14 Crankcase Bolts (M7, L = 45 mm) 20 2.0 15 S
15 Crankcase Bolt (M7, L = 60 mm) 20 2.0 15 S
16 Crankcase Bolts (M9, L = 100 mm) 44 4.5 32 MO, S
17 Crankcase Bolts (M9, L = 90 mm) 44 4.5 32 MO, S
18. Do not apply any grease or oil.
EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
M: Apply molybdenum disulfide grease.
MO: Apply molybdenum disulfide oil solution.
(mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
R: Replacement Parts
S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.
