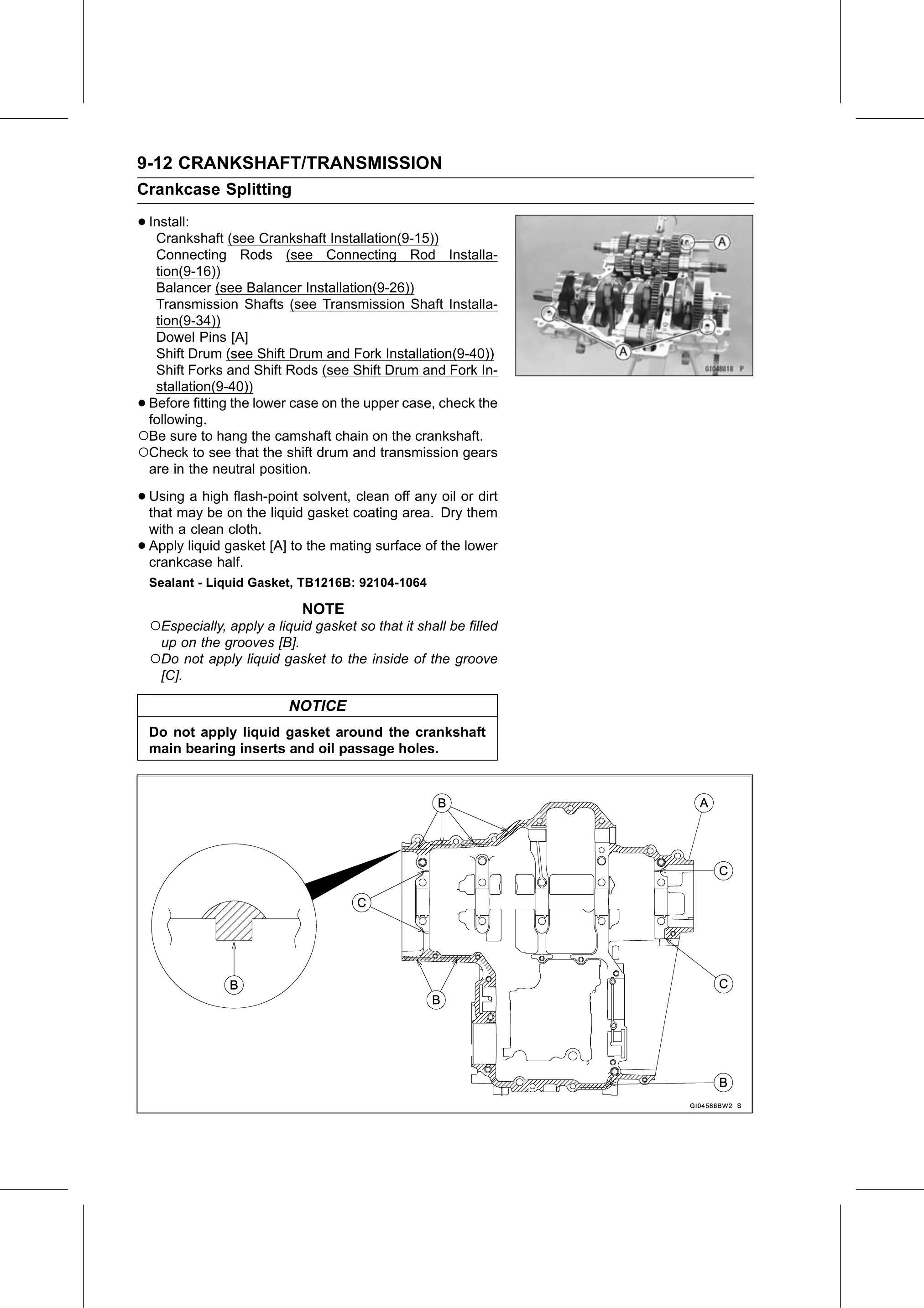

9-12 CRANKSHAFT/TRANSMISSION
Crankcase Splitting

• Install:
   Crankshaft (see Crankshaft Installation(9-15))
  Connecting Rods (see Connecting Rod Installa-
  tion(9-16))
  Balancer (see Balancer Installation(9-26))
  Transmission Shafts (see Transmission Shaft Installa-
  tion(9-34))
  Dowel Pins [A]
  Shift Drum (see Shift Drum and Fork Installation(9-40))
  Shift Forks and Shift Rods (see Shift Drum and Fork In-
  stallation(9-40))
•Before fitting the lower case on the upper case, check the
 following.
○Be sure to hang the camshaft chain on the crankshaft.
○Check to see that the shift drum and transmission gears
 are in the neutral position.

• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the mating surface of the lower
    crankcase half.
    Sealant - Liquid Gasket, TB1216B: 92104-1064

                              NOTE
    ○Especially, apply a liquid gasket so that it shall be filled
     up on the grooves [B].
    ○Do not apply liquid gasket to the inside of the groove
     [C].

                            NOTICE
    Do not apply liquid gasket around the crankshaft
    main bearing inserts and oil passage holes.
