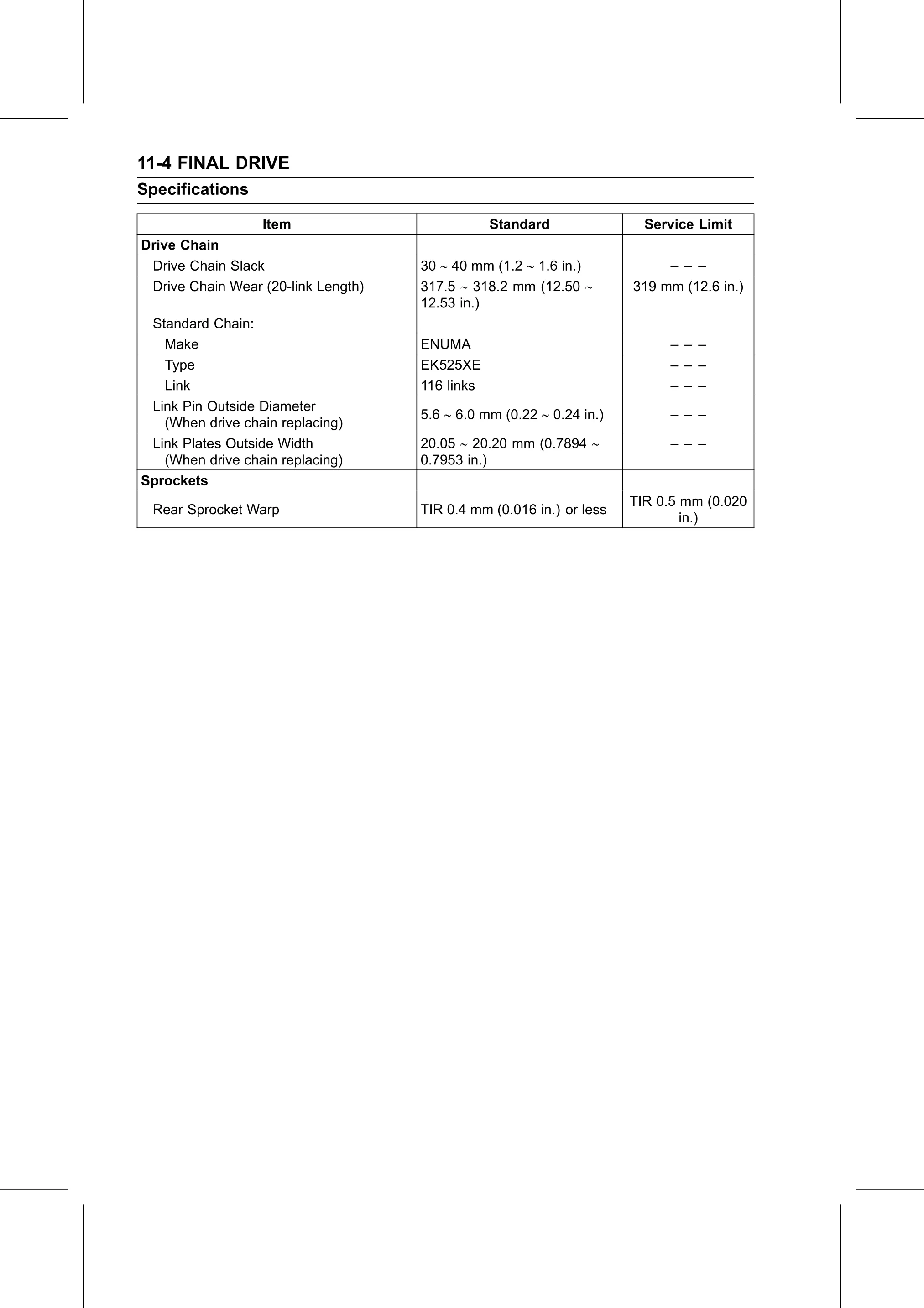

11-4 FINAL DRIVE
Specifications

                  Item                           Standard               Service Limit
Drive Chain
 Drive Chain Slack                   30  40 mm (1.2  1.6 in.)            – – –
 Drive Chain Wear (20-link Length)   317.5  318.2 mm (12.50         319 mm (12.6 in.)
                                     12.53 in.)
 Standard Chain:
   Make                              ENUMA                                 – – –
   Type                              EK525XE                               – – –
   Link                              116 links                             – – –
 Link Pin Outside Diameter
                                     5.6  6.0 mm (0.22  0.24 in.)        – – –
   (When drive chain replacing)
 Link Plates Outside Width           20.05  20.20 mm (0.7894             – – –
   (When drive chain replacing)      0.7953 in.)
Sprockets
                                                                      TIR 0.5 mm (0.020
 Rear Sprocket Warp                  TIR 0.4 mm (0.016 in.) or less
                                                                              in.)
