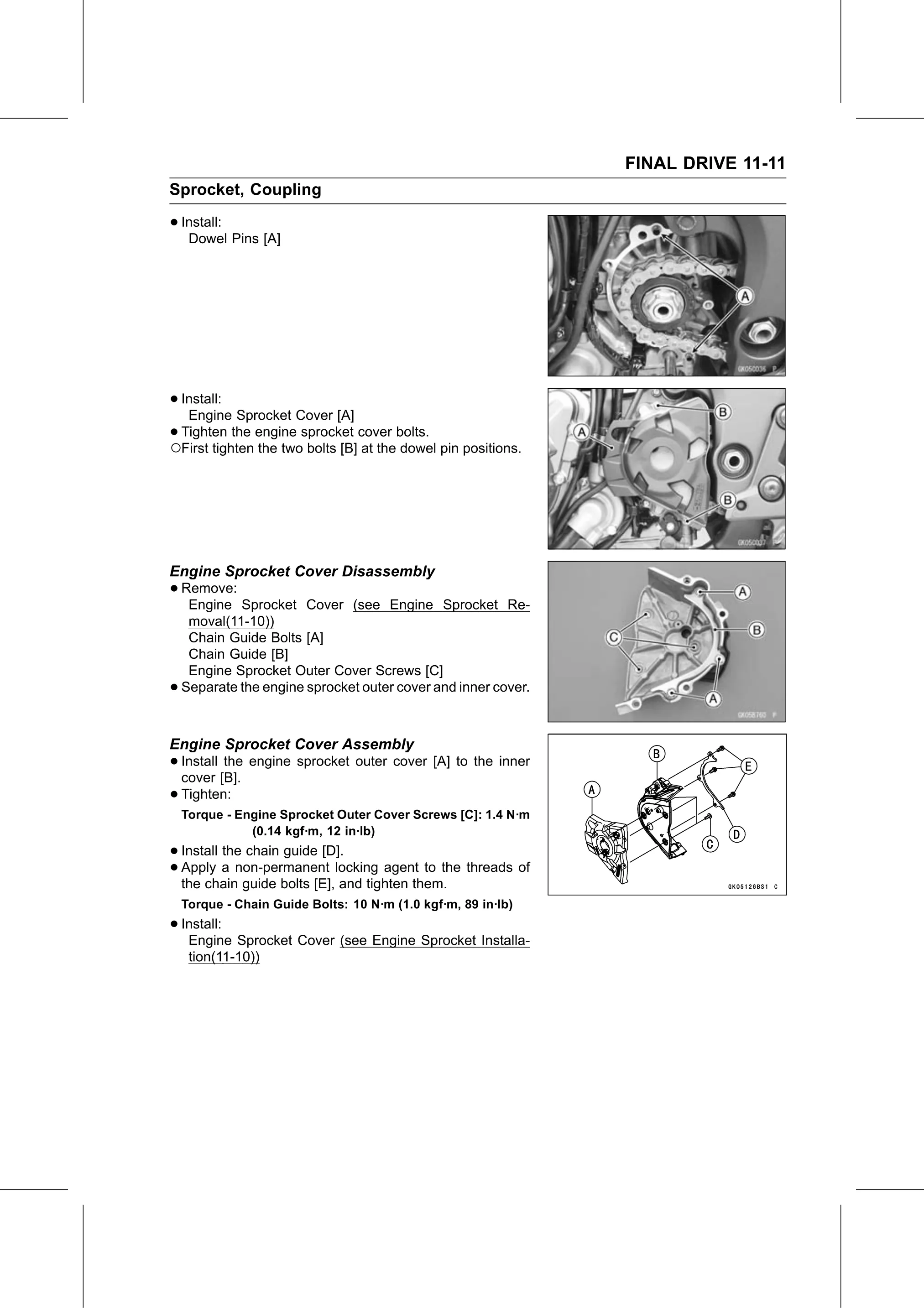

FINAL DRIVE 11-11
Sprocket, Coupling

• Install:
   Dowel Pins [A]

• Install:
   Engine Sprocket Cover [A]
•○Tighten   the engine sprocket cover bolts.
  First tighten the two bolts [B] at the dowel pin positions.

Engine Sprocket Cover Disassembly
• Remove:
   Engine Sprocket Cover (see Engine Sprocket Re-
     moval(11-10))
     Chain Guide Bolts [A]
     Chain Guide [B]
     Engine Sprocket Outer Cover Screws [C]
•   Separate the engine sprocket outer cover and inner cover.

Engine Sprocket Cover Assembly
• Install the engine sprocket outer cover [A] to the inner
  cover [B].
• Tighten:
    Torque - Engine Sprocket Outer Cover Screws [C]: 1.4 N·m
               (0.14 kgf·m, 12 in·lb)
• Install the chain guide [D].
• the chainnon-permanent
  Apply   a                  locking agent to the threads of
             guide bolts [E], and tighten them.
    Torque - Chain Guide Bolts: 10 N·m (1.0 kgf·m, 89 in·lb)
• Install:
   Engine Sprocket Cover (see Engine Sprocket Installa-
     tion(11-10))
