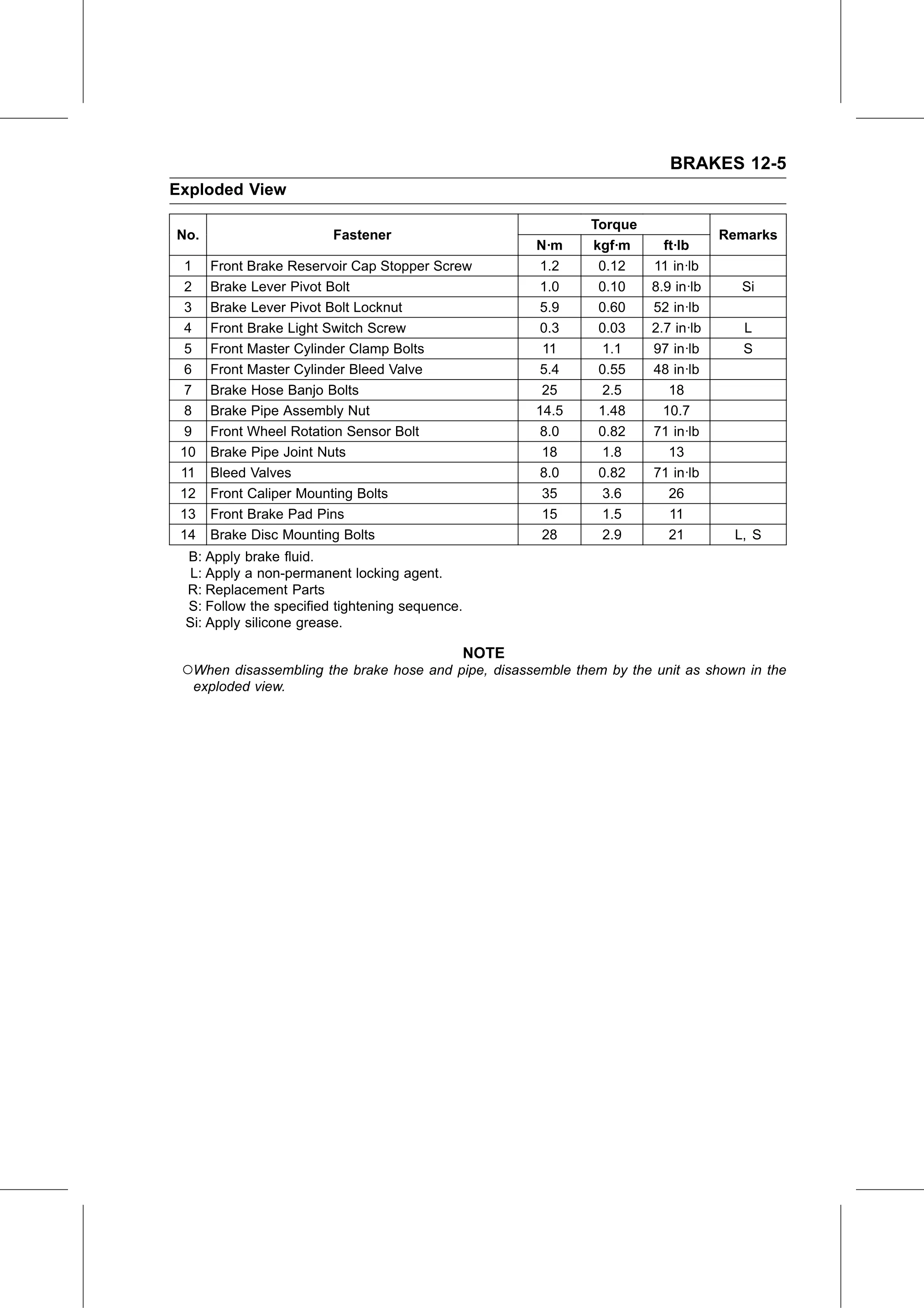

BRAKES 12-5
Exploded View

                                                              Torque
No.                     Fastener                                                   Remarks
                                                       N·m    kgf·m      ft·lb
  1   Front Brake Reservoir Cap Stopper Screw           1.2    0.12    11 in·lb
  2   Brake Lever Pivot Bolt                            1.0    0.10    8.9 in·lb     Si
  3   Brake Lever Pivot Bolt Locknut                    5.9    0.60    52 in·lb
  4   Front Brake Light Switch Screw                    0.3    0.03    2.7 in·lb     L
  5   Front Master Cylinder Clamp Bolts                 11      1.1    97 in·lb      S
  6   Front Master Cylinder Bleed Valve                 5.4    0.55    48 in·lb
  7   Brake Hose Banjo Bolts                            25      2.5       18
  8   Brake Pipe Assembly Nut                          14.5    1.48      10.7
  9   Front Wheel Rotation Sensor Bolt                  8.0    0.82    71 in·lb
 10   Brake Pipe Joint Nuts                             18      1.8       13
 11   Bleed Valves                                      8.0    0.82    71 in·lb
 12   Front Caliper Mounting Bolts                      35      3.6       26
 13   Front Brake Pad Pins                              15      1.5       11
 14   Brake Disc Mounting Bolts                         28      2.9       21        L, S
 B: Apply brake fluid.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
 S: Follow the specified tightening sequence.
 Si: Apply silicone grease.

                                                NOTE
 ○When disassembling the brake hose and pipe, disassemble them by the unit as shown in the
  exploded view.
