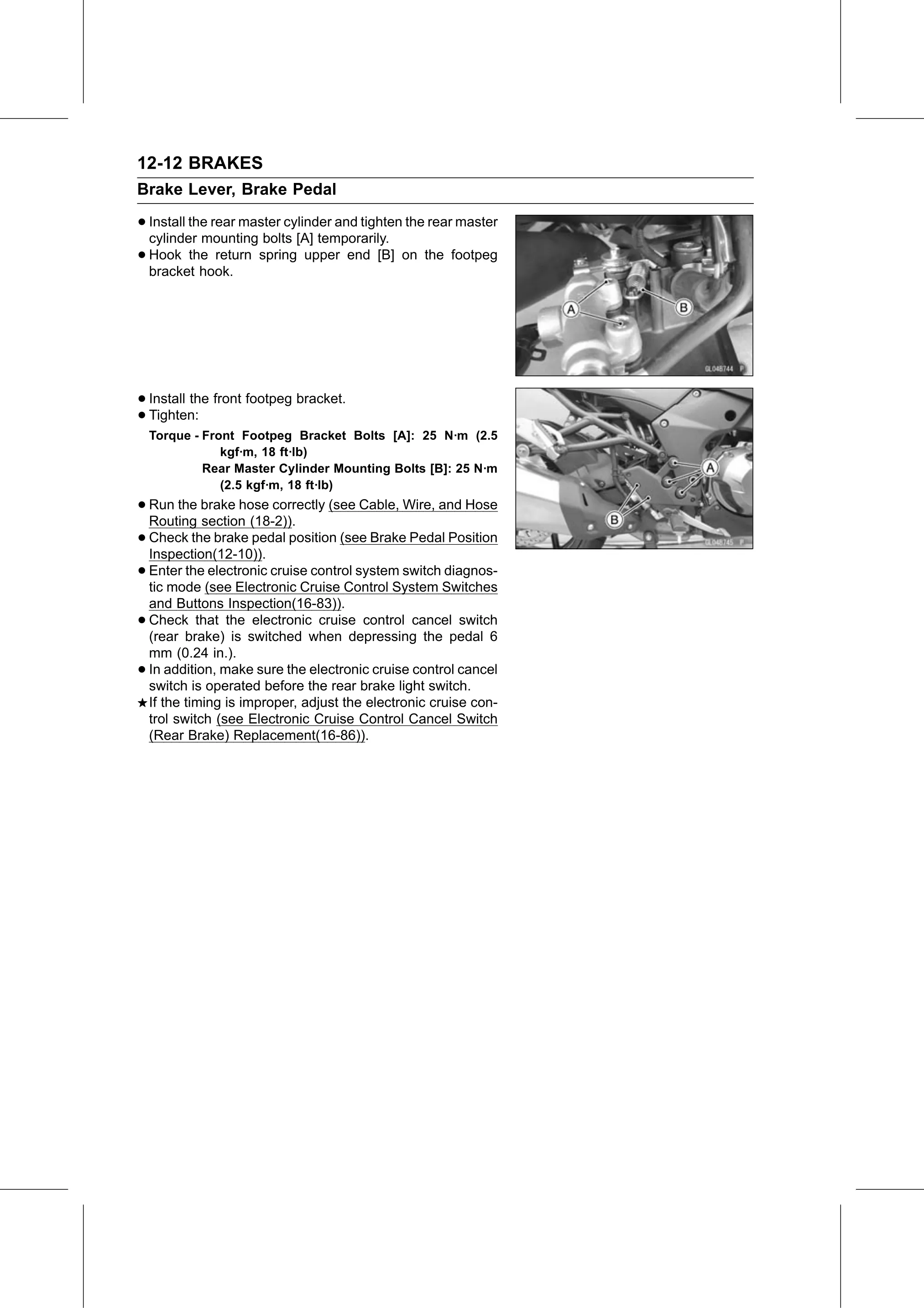

12-12 BRAKES
Brake Lever, Brake Pedal

• Install the rear master cylinder and tighten the rear master
  cylinder mounting bolts [A] temporarily.
• Hook    the return spring upper end [B] on the footpeg
  bracket hook.

• Install the front footpeg bracket.
• Tighten:
    Torque - Front Footpeg Bracket Bolts [A]: 25 N·m (2.5
                kgf·m, 18 ft·lb)
             Rear Master Cylinder Mounting Bolts [B]: 25 N·m
                (2.5 kgf·m, 18 ft·lb)
• Run  the brake hose correctly (see Cable, Wire, and Hose
  Routing section (18-2)).
• Check  the brake pedal position (see Brake Pedal Position
  Inspection(12-10)).
• Enter the electronic cruise control system switch diagnos-
  tic mode (see Electronic Cruise Control System Switches
    and Buttons Inspection(16-83)).
•   Check that the electronic cruise control cancel switch
    (rear brake) is switched when depressing the pedal 6
    mm (0.24 in.).
•   In addition, make sure the electronic cruise control cancel
    switch is operated before the rear brake light switch.
    If the timing is improper, adjust the electronic cruise con-
    trol switch (see Electronic Cruise Control Cancel Switch
    (Rear Brake) Replacement(16-86)).
