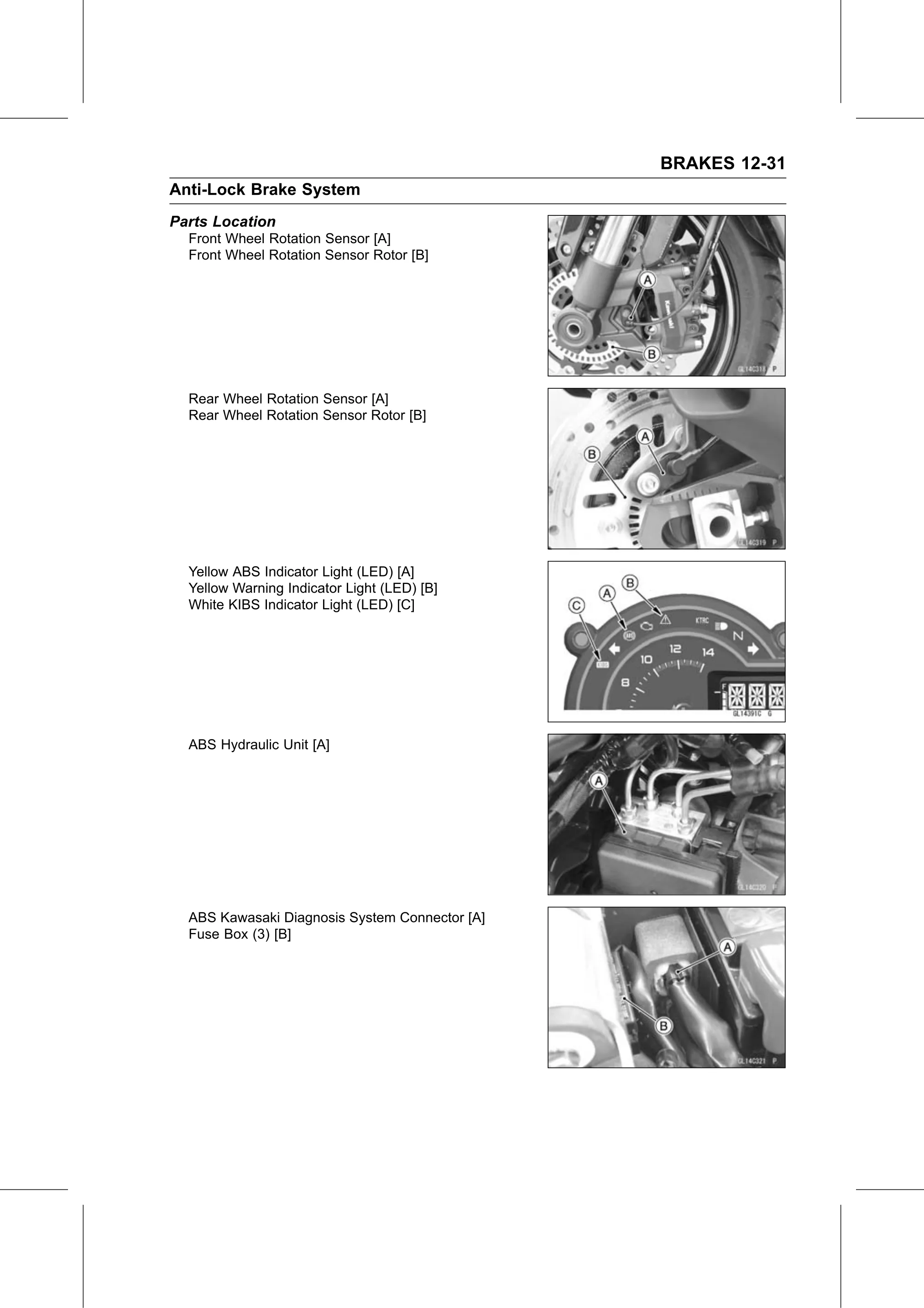

BRAKES 12-31
Anti-Lock Brake System
Parts Location
  Front Wheel Rotation Sensor [A]
  Front Wheel Rotation Sensor Rotor [B]

  Rear Wheel Rotation Sensor [A]
  Rear Wheel Rotation Sensor Rotor [B]

  Yellow ABS Indicator Light (LED) [A]
  Yellow Warning Indicator Light (LED) [B]
  White KIBS Indicator Light (LED) [C]

  ABS Hydraulic Unit [A]

  ABS Kawasaki Diagnosis System Connector [A]
  Fuse Box (3) [B]
