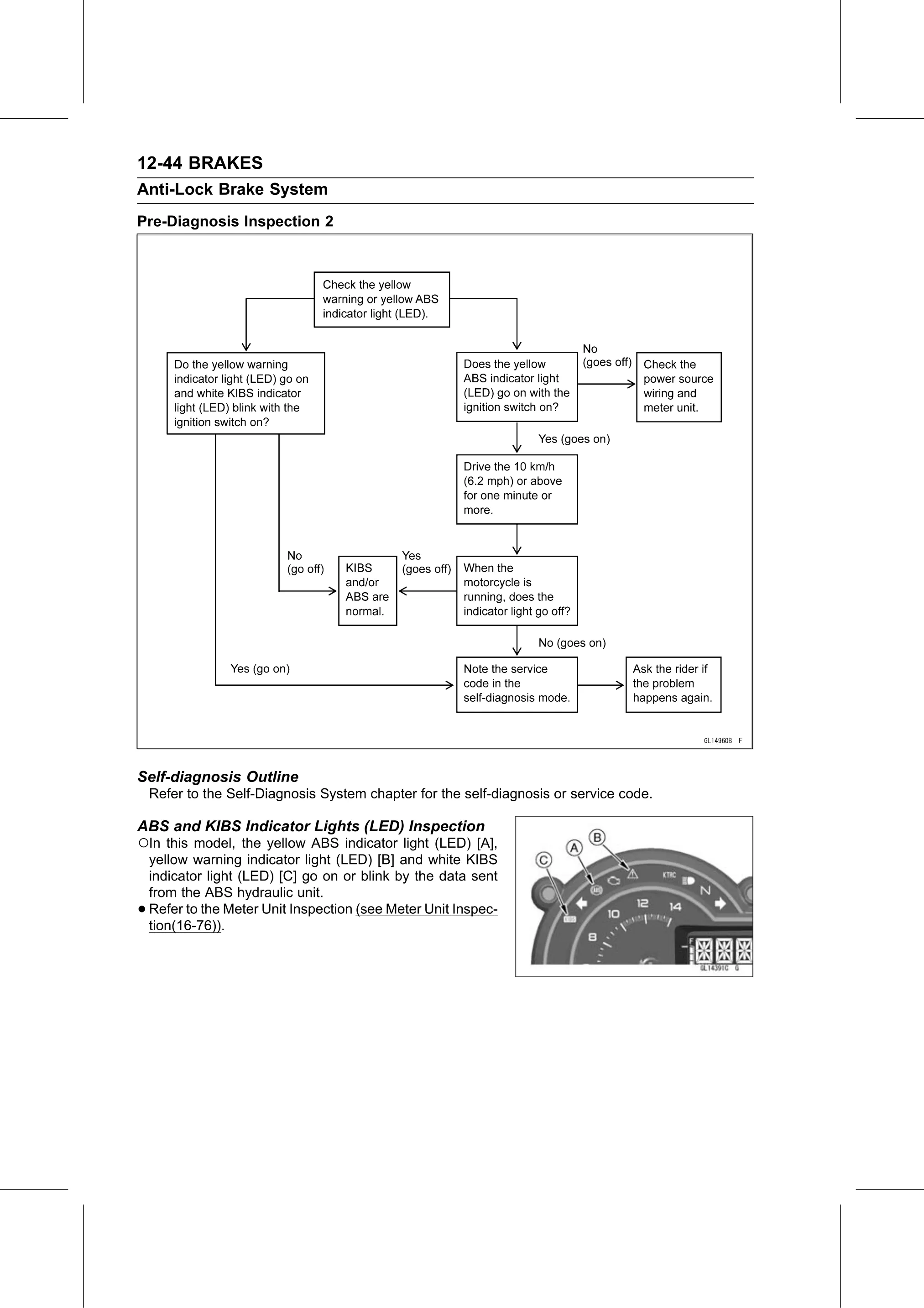

12-44 BRAKES
Anti-Lock Brake System
Pre-Diagnosis Inspection 2

Self-diagnosis Outline
    Refer to the Self-Diagnosis System chapter for the self-diagnosis or service code.

ABS and KIBS Indicator Lights (LED) Inspection
○In this model, the yellow ABS indicator light (LED) [A],
    yellow warning indicator light (LED) [B] and white KIBS
    indicator light (LED) [C] go on or blink by the data sent
    from the ABS hydraulic unit.
•   Refer to the Meter Unit Inspection (see Meter Unit Inspec-
    tion(16-76)).
