BRAKES 12-51
Anti-Lock Brake System

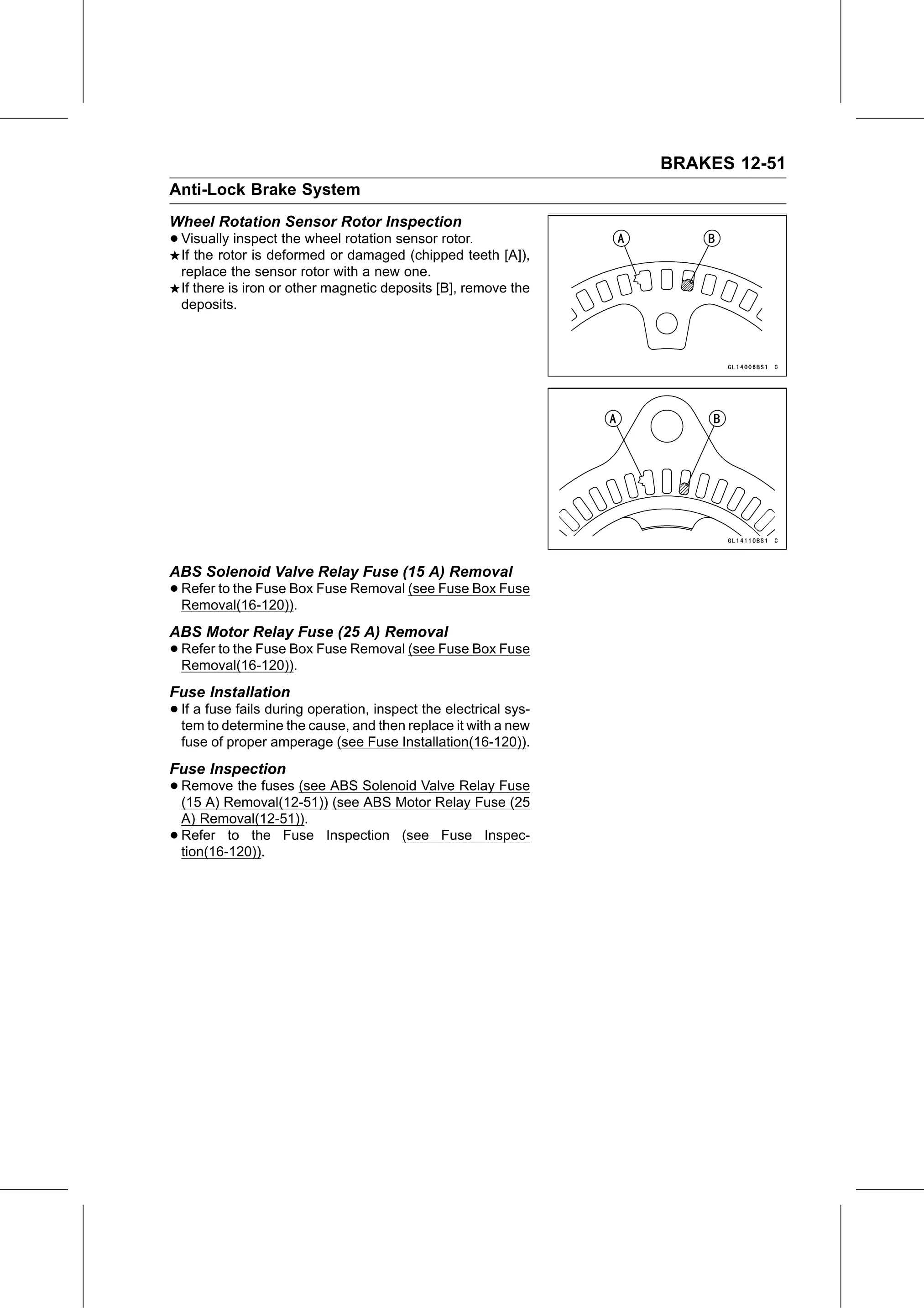

Wheel Rotation Sensor Rotor Inspection
• Visually  inspect the wheel rotation sensor rotor.
  If the rotor is deformed or damaged (chipped teeth [A]),
    replace the sensor rotor with a new one.
    If there is iron or other magnetic deposits [B], remove the
    deposits.

ABS Solenoid Valve Relay Fuse (15 A) Removal
• Refer to the Fuse Box Fuse Removal (see Fuse Box Fuse
  Removal(16-120)).
ABS Motor Relay Fuse (25 A) Removal
• Refer to the Fuse Box Fuse Removal (see Fuse Box Fuse
  Removal(16-120)).
Fuse Installation
• Iftema fuse  fails during operation, inspect the electrical sys-
          to determine the cause, and then replace it with a new
    fuse of proper amperage (see Fuse Installation(16-120)).
Fuse Inspection
• Remove  the fuses (see ABS Solenoid Valve Relay Fuse
  (15 A) Removal(12-51)) (see ABS Motor Relay Fuse (25
    A) Removal(12-51)).
•   Refer to the Fuse Inspection (see Fuse Inspec-
    tion(16-120)).
