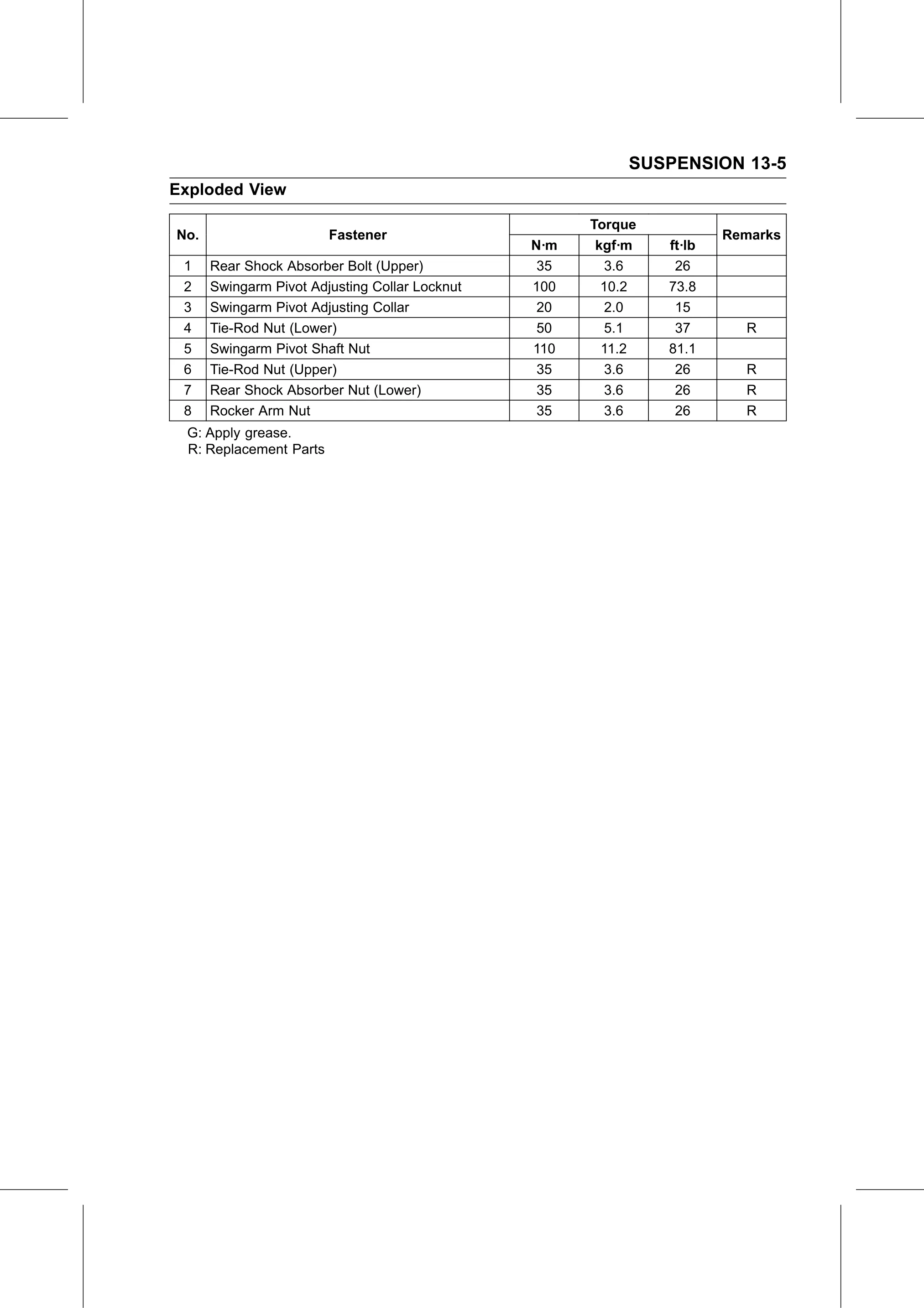

SUSPENSION 13-5
Exploded View

                                                      Torque
No.                     Fastener                                       Remarks
                                                N·m    kgf·m   ft·lb
 1    Rear Shock Absorber Bolt (Upper)           35      3.6    26
 2    Swingarm Pivot Adjusting Collar Locknut   100     10.2   73.8
 3    Swingarm Pivot Adjusting Collar            20      2.0    15
 4    Tie-Rod Nut (Lower)                        50      5.1    37       R
 5    Swingarm Pivot Shaft Nut                  110     11.2   81.1
 6    Tie-Rod Nut (Upper)                        35      3.6    26       R
 7    Rear Shock Absorber Nut (Lower)            35      3.6    26       R
 8    Rocker Arm Nut                             35      3.6    26       R
 G: Apply grease.
 R: Replacement Parts
