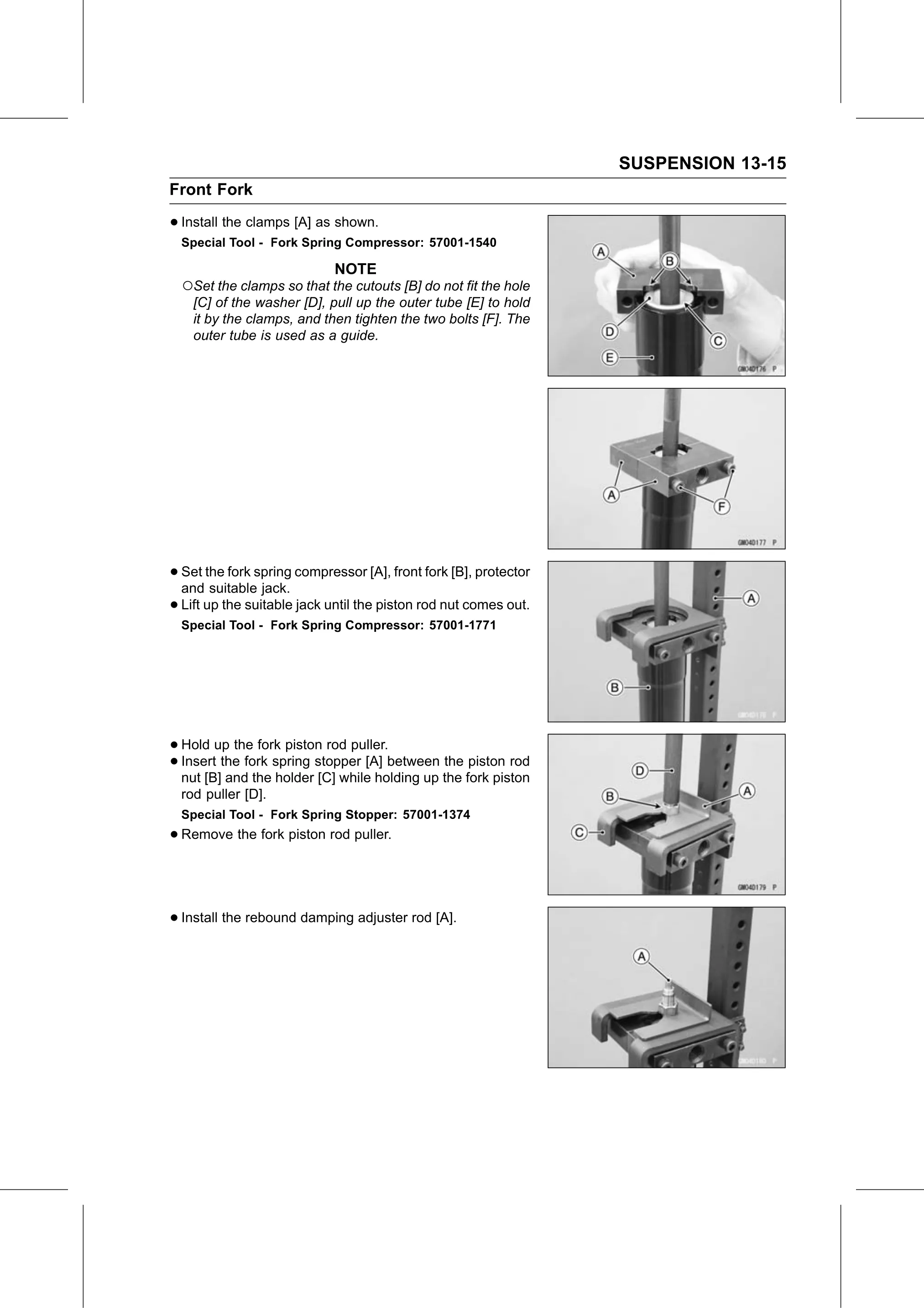

SUSPENSION 13-15
Front Fork

• Install the clamps [A] as shown.
  Special Tool - Fork Spring Compressor: 57001-1540

                             NOTE
  ○Set the clamps so that the cutouts [B] do not fit the hole
    [C] of the washer [D], pull up the outer tube [E] to hold
    it by the clamps, and then tighten the two bolts [F]. The
    outer tube is used as a guide.

• Set  the fork spring compressor [A], front fork [B], protector
  and suitable jack.
• Lift up the suitable jack until the piston rod nut comes out.
  Special Tool - Fork Spring Compressor: 57001-1771

• Hold  up the fork piston rod puller.
• Insert the fork spring stopper [A] between the piston rod
  nut [B] and the holder [C] while holding up the fork piston
  rod puller [D].
  Special Tool - Fork Spring Stopper: 57001-1374
• Remove the fork piston rod puller.

• Install the rebound damping adjuster rod [A].
