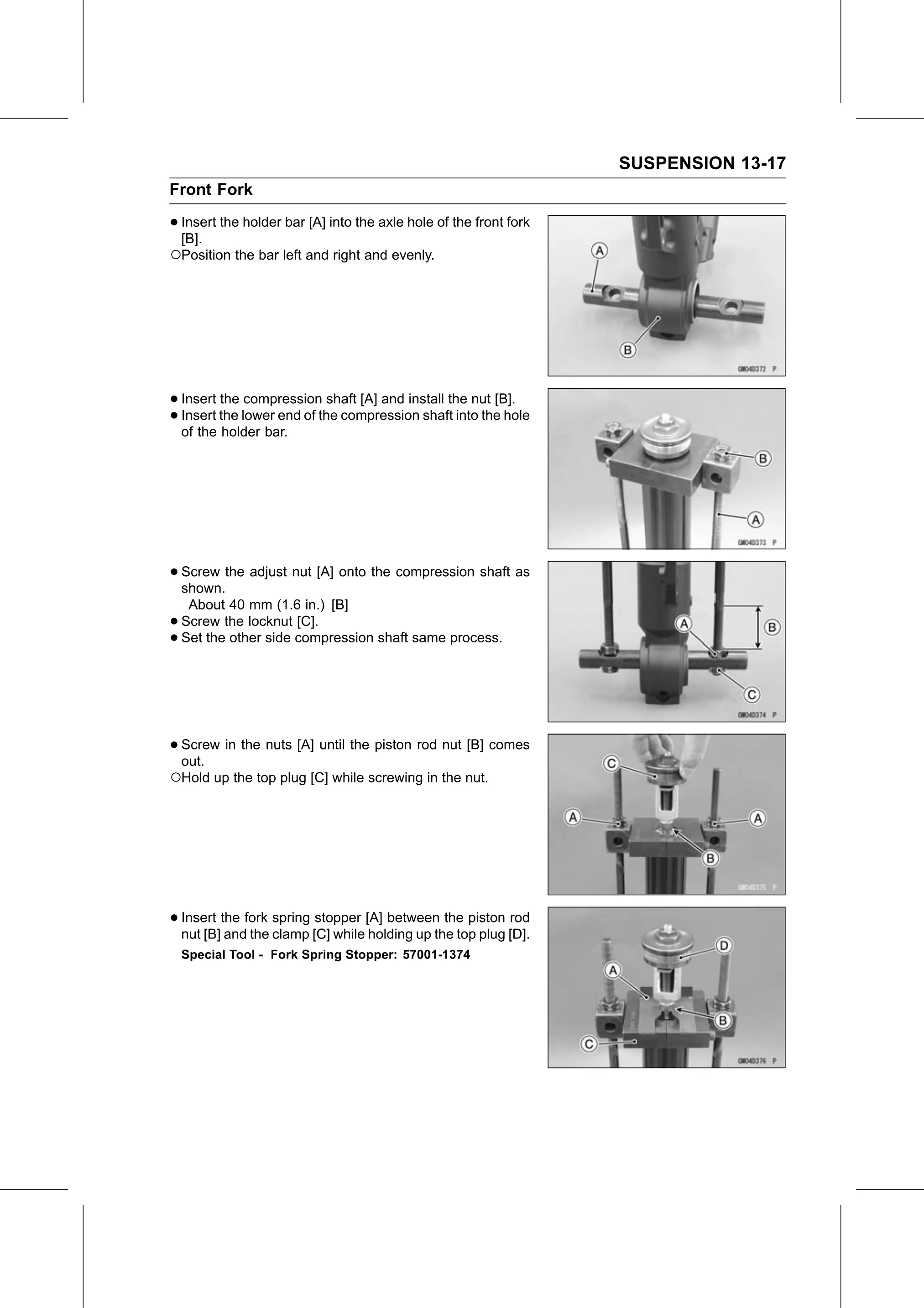

SUSPENSION 13-17
Front Fork

• Insert
  [B].
         the holder bar [A] into the axle hole of the front fork

○Position the bar left and right and evenly.

• Insert the compression shaft [A] and install the nut [B].
• of the holder
  Insert the lower end of the compression shaft into the hole
                bar.

• Screw
  shown.
        the adjust nut [A] onto the compression shaft as

     About 40 mm (1.6 in.) [B]
•   Screw the locknut [C].
•   Set the other side compression shaft same process.

• Screw
  out.
        in the nuts [A] until the piston rod nut [B] comes

○Hold up the top plug [C] while screwing in the nut.

• Insert the fork spring stopper [A] between the piston rod
  nut [B] and the clamp [C] while holding up the top plug [D].
    Special Tool - Fork Spring Stopper: 57001-1374
