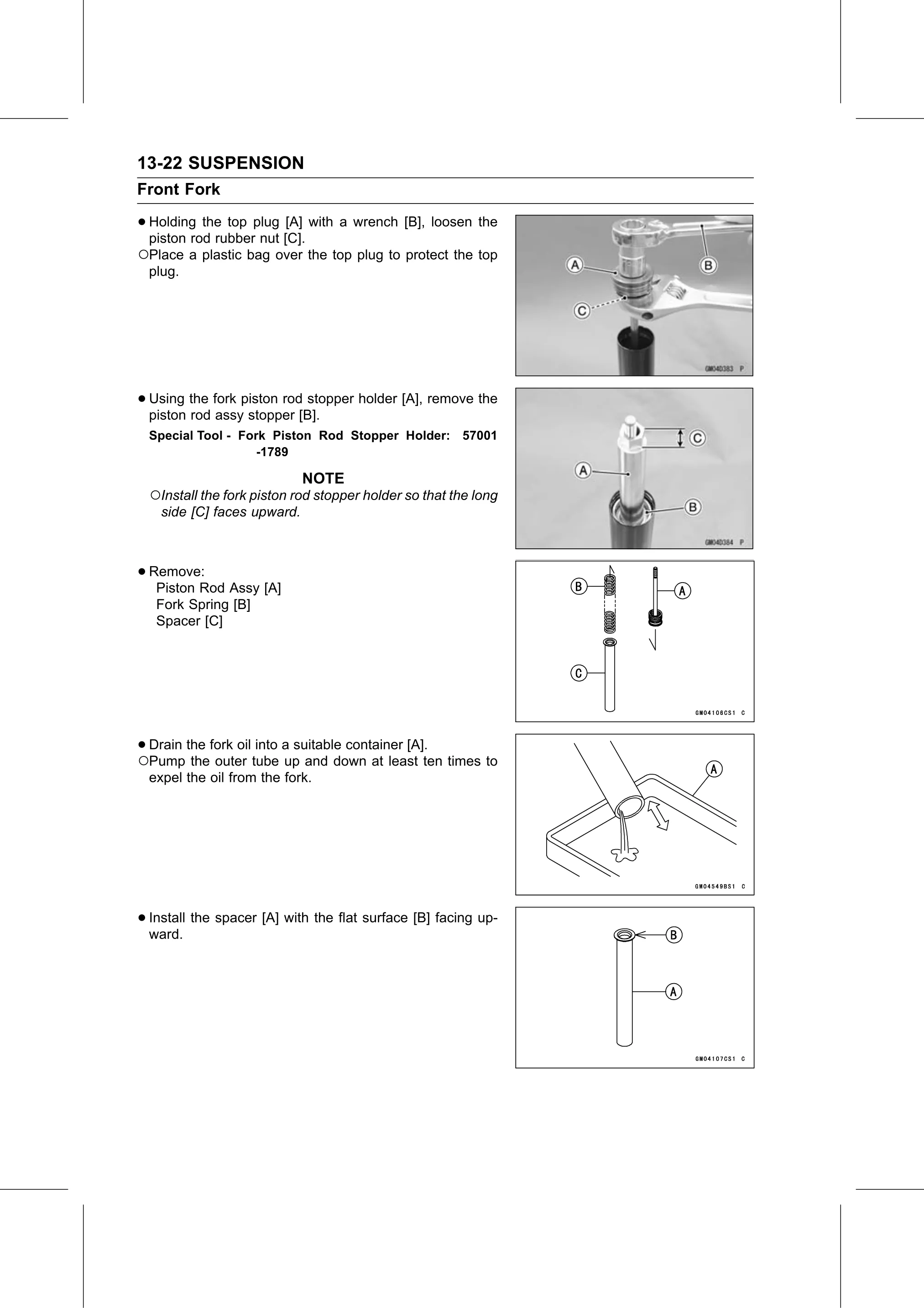

13-22 SUSPENSION
Front Fork

• Holding  the top plug [A] with a wrench [B], loosen the
  piston rod rubber nut [C].
○Place a plastic bag over the top plug to protect the top
  plug.

• Using  the fork piston rod stopper holder [A], remove the
  piston rod assy stopper [B].
  Special Tool - Fork Piston Rod Stopper Holder: 57001
                    -1789

                             NOTE
  ○Install the fork piston rod stopper holder so that the long
    side [C] faces upward.

• Remove:
   Piston Rod Assy [A]
   Fork Spring [B]
   Spacer [C]

•○Drain the fork oil into a suitable container [A].
  Pump the outer tube up and down at least ten times to
  expel the oil from the fork.

• Install
  ward.
          the spacer [A] with the flat surface [B] facing up-
