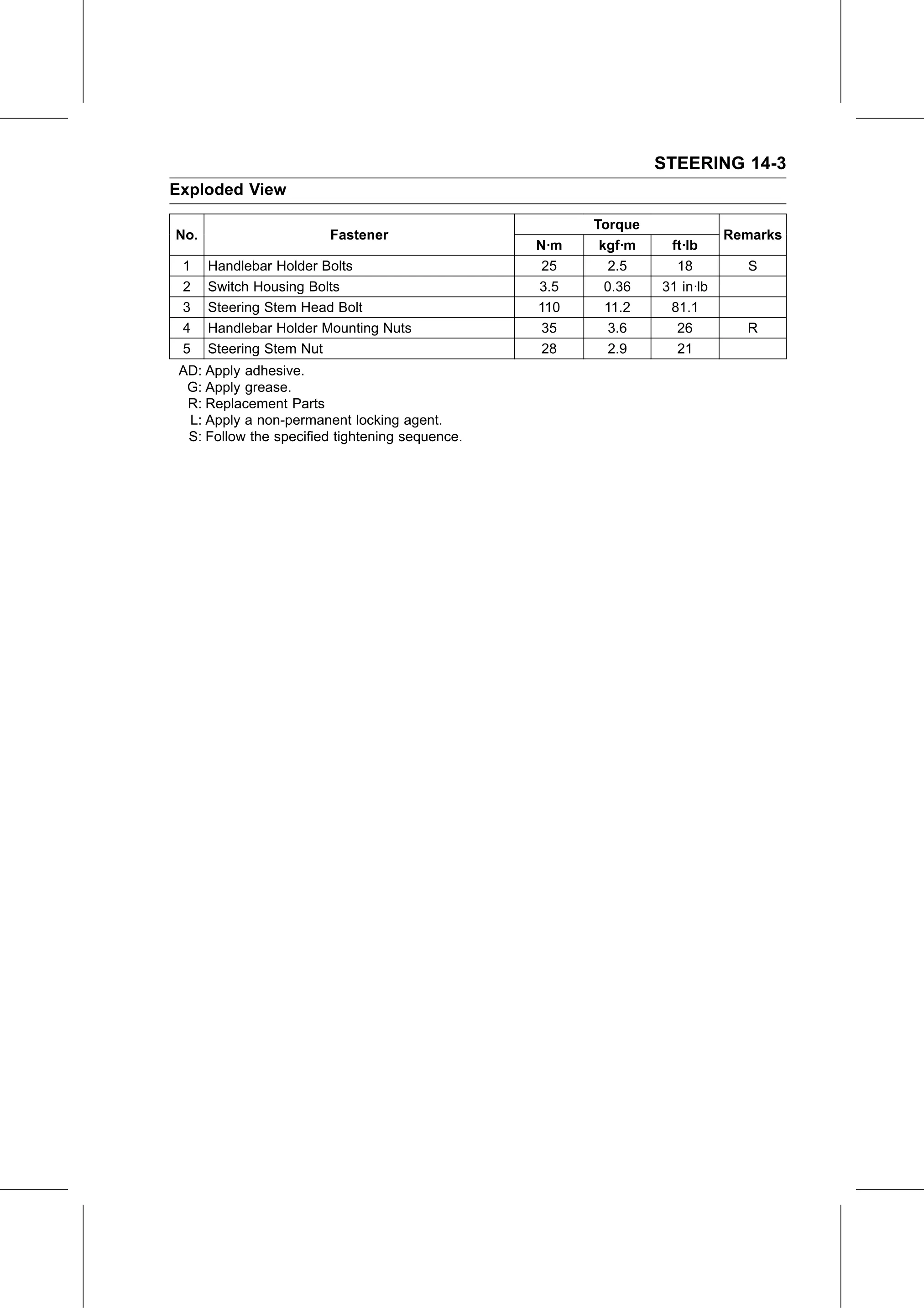

STEERING 14-3
Exploded View

                                                       Torque
No.                      Fastener                                          Remarks
                                                 N·m    kgf·m    ft·lb
 1    Handlebar Holder Bolts                      25     2.5      18         S
 2    Switch Housing Bolts                       3.5     0.36   31 in·lb
 3    Steering Stem Head Bolt                    110     11.2    81.1
 4    Handlebar Holder Mounting Nuts              35     3.6      26         R
 5    Steering Stem Nut                           28     2.9      21
 AD: Apply adhesive.
  G: Apply grease.
  R: Replacement Parts
  L: Apply a non-permanent locking agent.
  S: Follow the specified tightening sequence.
