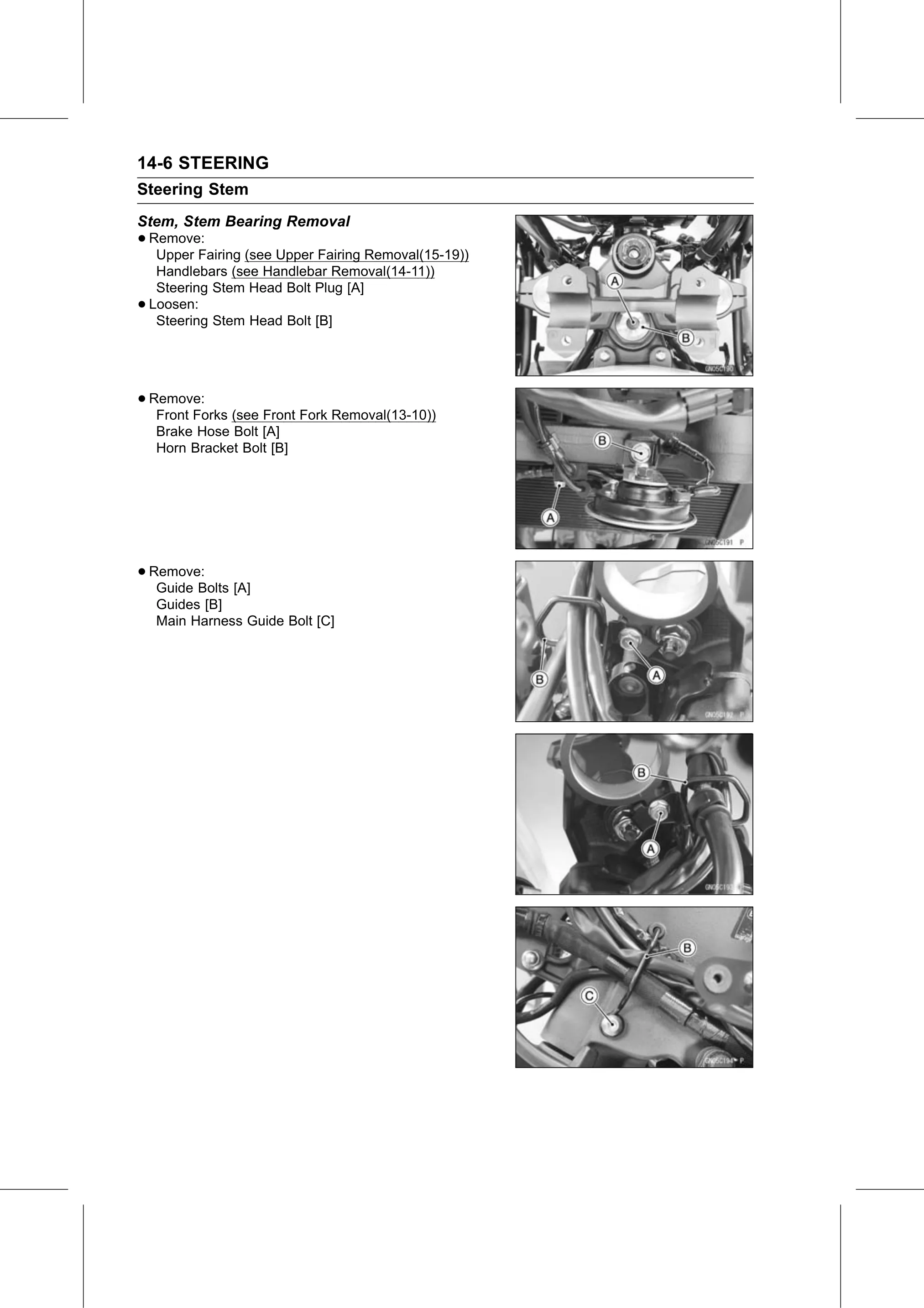

14-6 STEERING
Steering Stem
Stem, Stem Bearing Removal
• Remove:
   Upper Fairing (see Upper Fairing Removal(15-19))
     Handlebars (see Handlebar Removal(14-11))
     Steering Stem Head Bolt Plug [A]
•   Loosen:
     Steering Stem Head Bolt [B]

• Remove:
   Front Forks (see Front Fork Removal(13-10))
     Brake Hose Bolt [A]
     Horn Bracket Bolt [B]

• Remove:
   Guide Bolts [A]
     Guides [B]
     Main Harness Guide Bolt [C]
