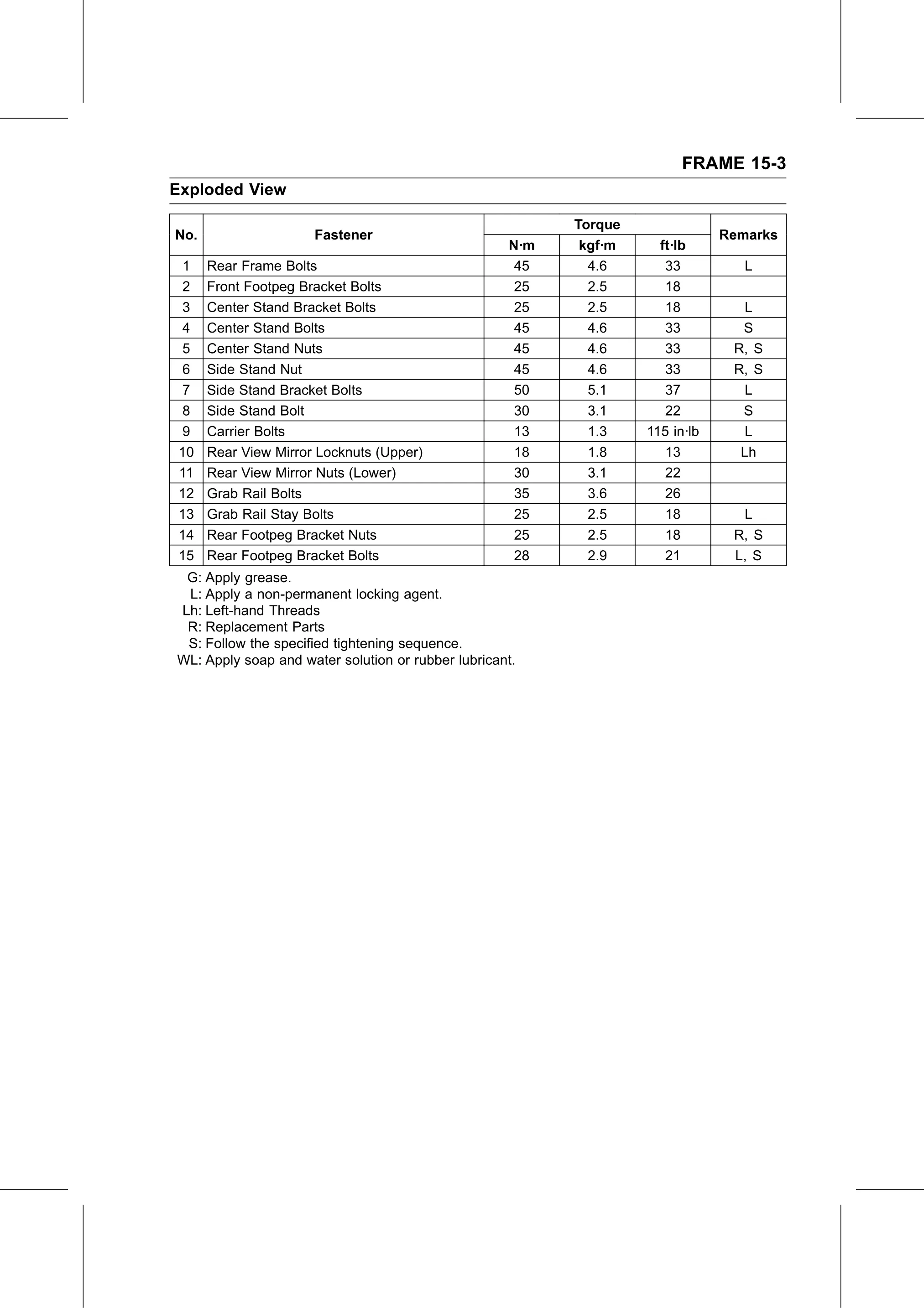

FRAME 15-3
Exploded View

                                                          Torque
No.                   Fastener                                                 Remarks
                                                    N·m    kgf·m     ft·lb
  1   Rear Frame Bolts                               45     4.6       33          L
  2   Front Footpeg Bracket Bolts                    25     2.5       18
  3   Center Stand Bracket Bolts                     25     2.5       18          L
  4   Center Stand Bolts                             45     4.6       33         S
  5   Center Stand Nuts                              45     4.6       33        R, S
  6   Side Stand Nut                                 45     4.6       33        R, S
  7   Side Stand Bracket Bolts                       50     5.1       37          L
  8   Side Stand Bolt                                30     3.1       22         S
  9   Carrier Bolts                                  13     1.3    115 in·lb      L
 10   Rear View Mirror Locknuts (Upper)              18     1.8       13         Lh
 11   Rear View Mirror Nuts (Lower)                  30     3.1       22
 12   Grab Rail Bolts                                35     3.6       26
 13   Grab Rail Stay Bolts                           25     2.5       18         L
 14   Rear Footpeg Bracket Nuts                      25     2.5       18        R, S
 15   Rear Footpeg Bracket Bolts                     28     2.9       21        L, S
 G: Apply grease.
 L: Apply a non-permanent locking agent.
Lh: Left-hand Threads
 R: Replacement Parts
 S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.
