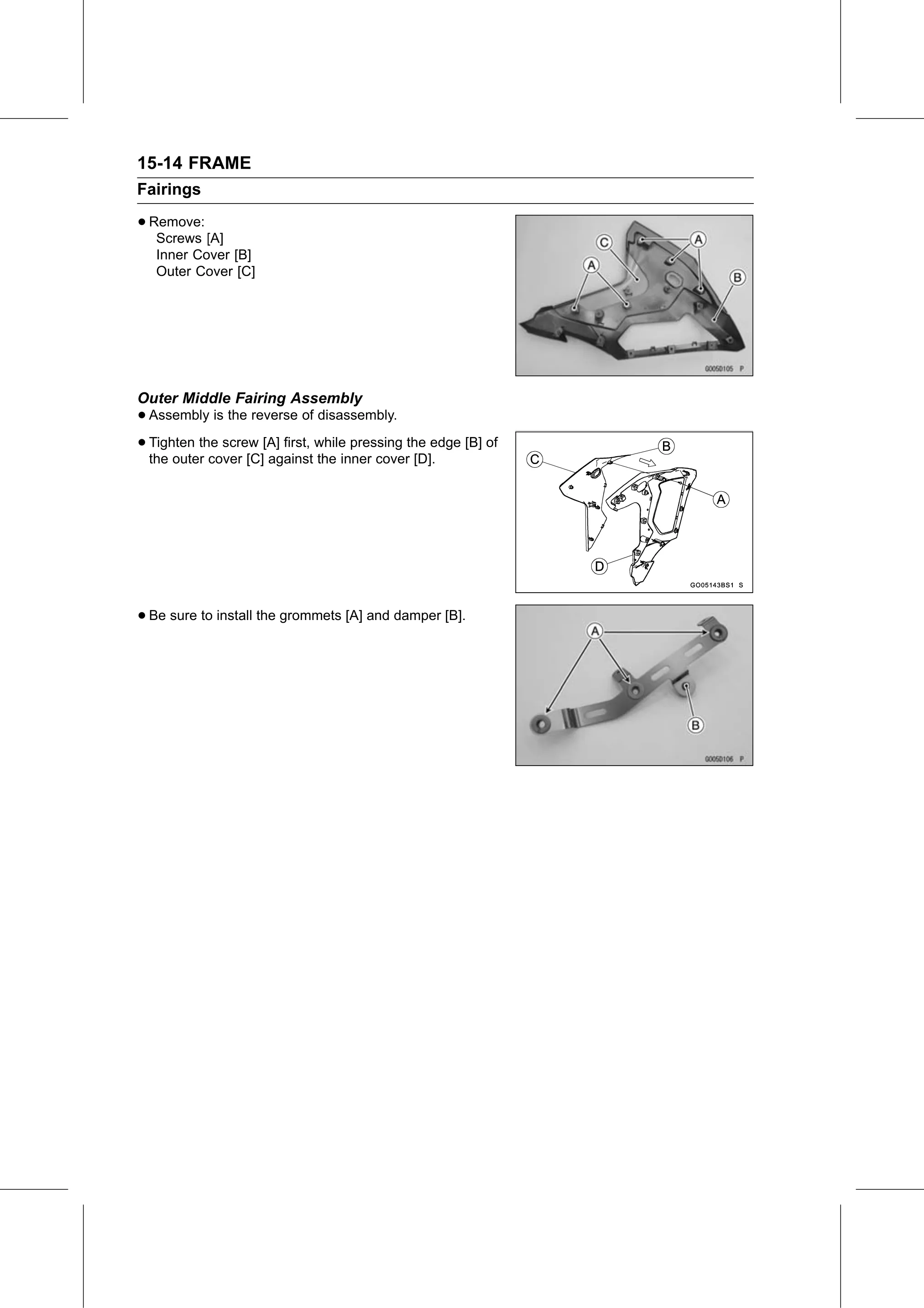

15-14 FRAME
Fairings

• Remove:
   Screws [A]
   Inner Cover [B]
   Outer Cover [C]

Outer Middle Fairing Assembly
• Assembly is the reverse of disassembly.
• Tighten the screw [A] first, while pressing the edge [B] of
  the outer cover [C] against the inner cover [D].

• Be sure to install the grommets [A] and damper [B].
