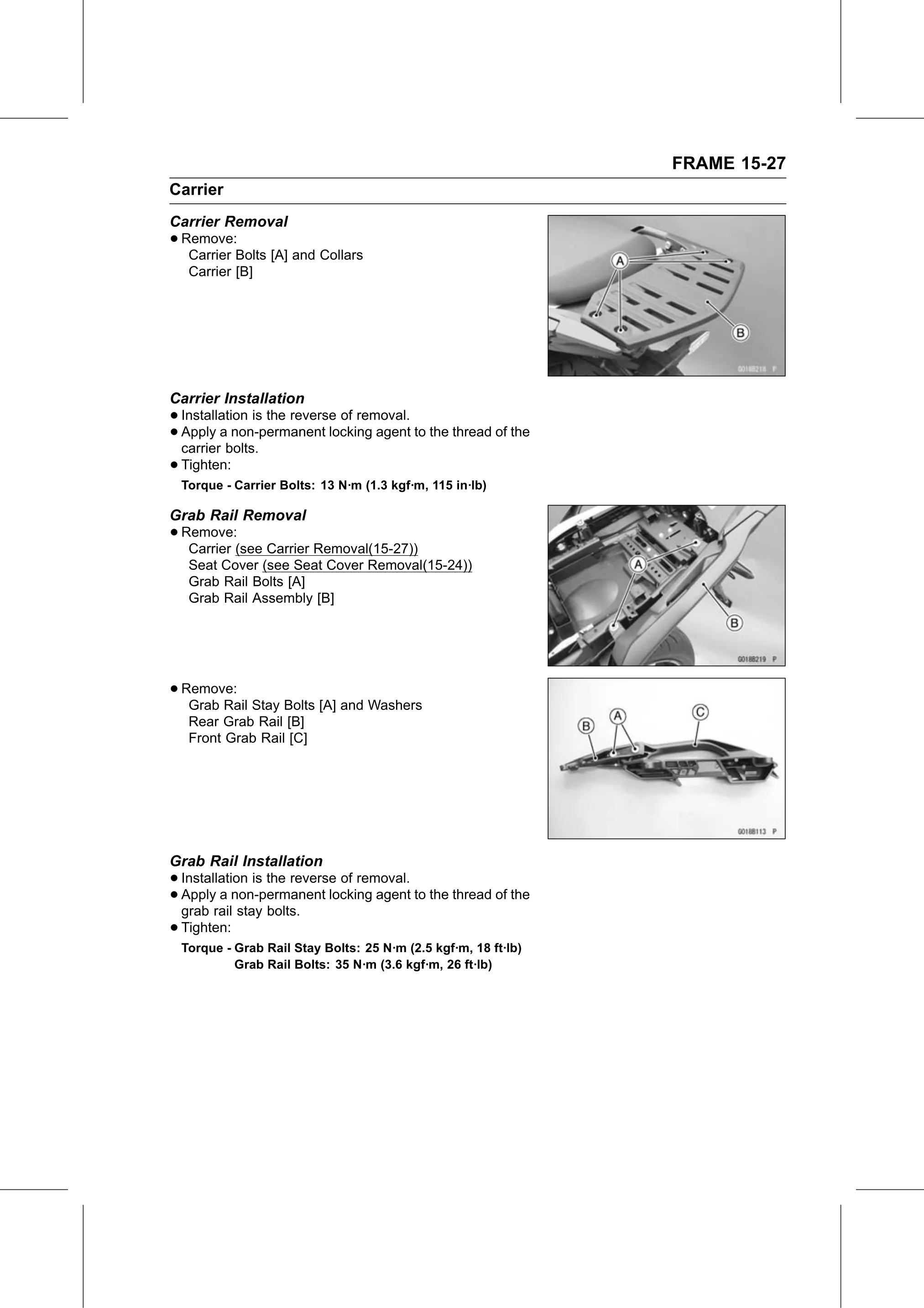

FRAME 15-27
Carrier
Carrier Removal
• Remove:
   Carrier Bolts [A] and Collars
   Carrier [B]

Carrier Installation
• Installation is the reverse of removal.
• Apply  a non-permanent locking agent to the thread of the
  carrier bolts.
• Tighten:
 Torque - Carrier Bolts: 13 N·m (1.3 kgf·m, 115 in·lb)

Grab Rail Removal
• Remove:
   Carrier (see Carrier Removal(15-27))
   Seat Cover (see Seat Cover Removal(15-24))
   Grab Rail Bolts [A]
   Grab Rail Assembly [B]

• Remove:
   Grab Rail Stay Bolts [A] and Washers
   Rear Grab Rail [B]
   Front Grab Rail [C]

Grab Rail Installation
• Installation is the reverse of removal.
• grab rail stay bolts. locking agent to the thread of the
  Apply  a  non-permanent

• Tighten:
 Torque - Grab Rail Stay Bolts: 25 N·m (2.5 kgf·m, 18 ft·lb)
          Grab Rail Bolts: 35 N·m (3.6 kgf·m, 26 ft·lb)
