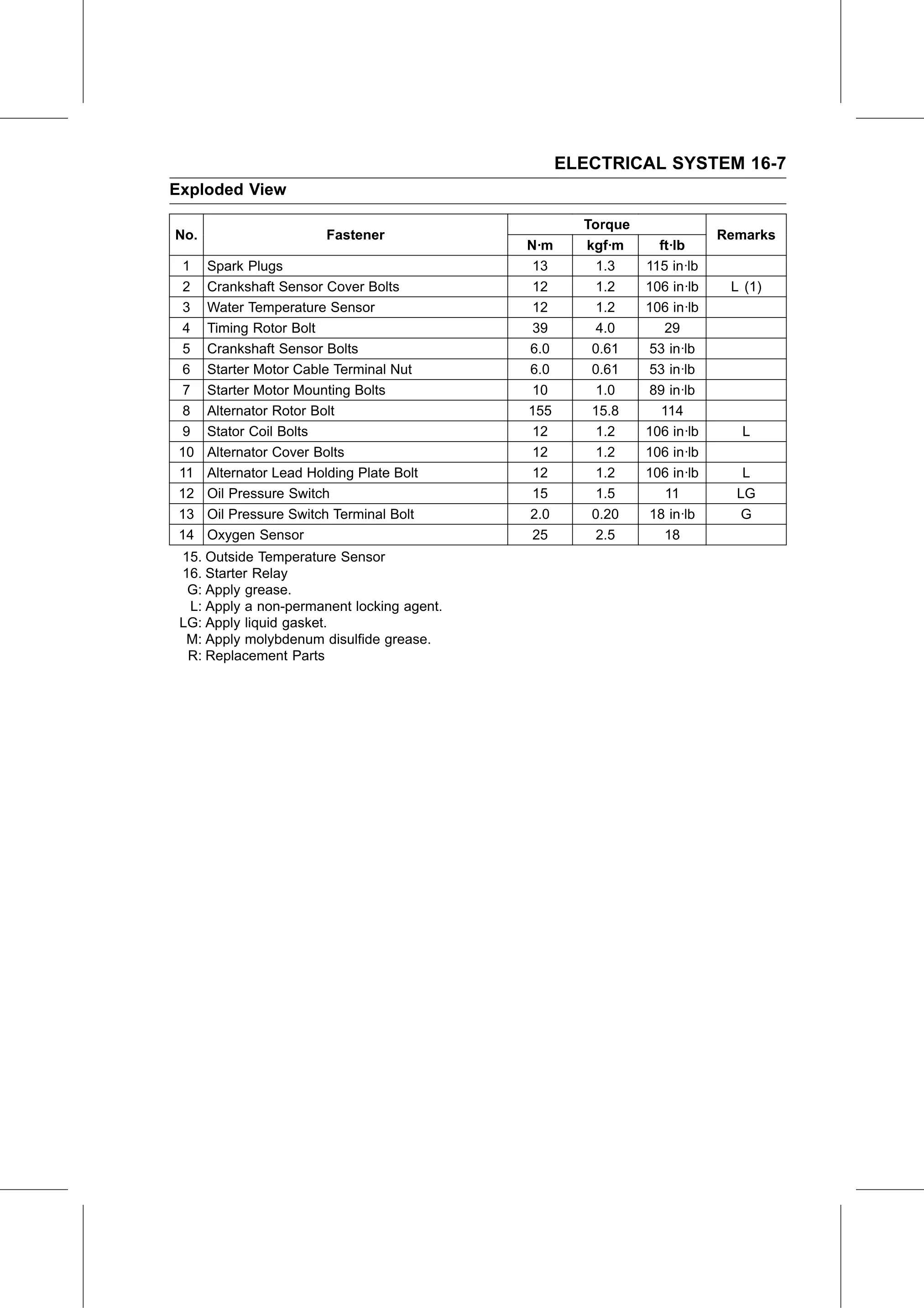

ELECTRICAL SYSTEM 16-7
Exploded View

                                                    Torque
No.                      Fastener                                        Remarks
                                            N·m     kgf·m      ft·lb
  1   Spark Plugs                            13       1.3    115 in·lb
  2   Crankshaft Sensor Cover Bolts          12       1.2    106 in·lb    L (1)
  3   Water Temperature Sensor               12       1.2    106 in·lb
  4   Timing Rotor Bolt                      39       4.0       29
  5   Crankshaft Sensor Bolts               6.0      0.61    53 in·lb
  6   Starter Motor Cable Terminal Nut      6.0      0.61    53 in·lb
  7   Starter Motor Mounting Bolts           10       1.0    89 in·lb
  8   Alternator Rotor Bolt                 155      15.8      114
  9   Stator Coil Bolts                      12       1.2    106 in·lb      L
 10   Alternator Cover Bolts                 12       1.2    106 in·lb
 11   Alternator Lead Holding Plate Bolt     12       1.2    106 in·lb      L
 12   Oil Pressure Switch                    15       1.5       11         LG
 13   Oil Pressure Switch Terminal Bolt     2.0      0.20    18 in·lb       G
 14   Oxygen Sensor                          25       2.5       18
 15. Outside Temperature Sensor
 16. Starter Relay
  G: Apply grease.
  L: Apply a non-permanent locking agent.
 LG: Apply liquid gasket.
  M: Apply molybdenum disulfide grease.
  R: Replacement Parts
