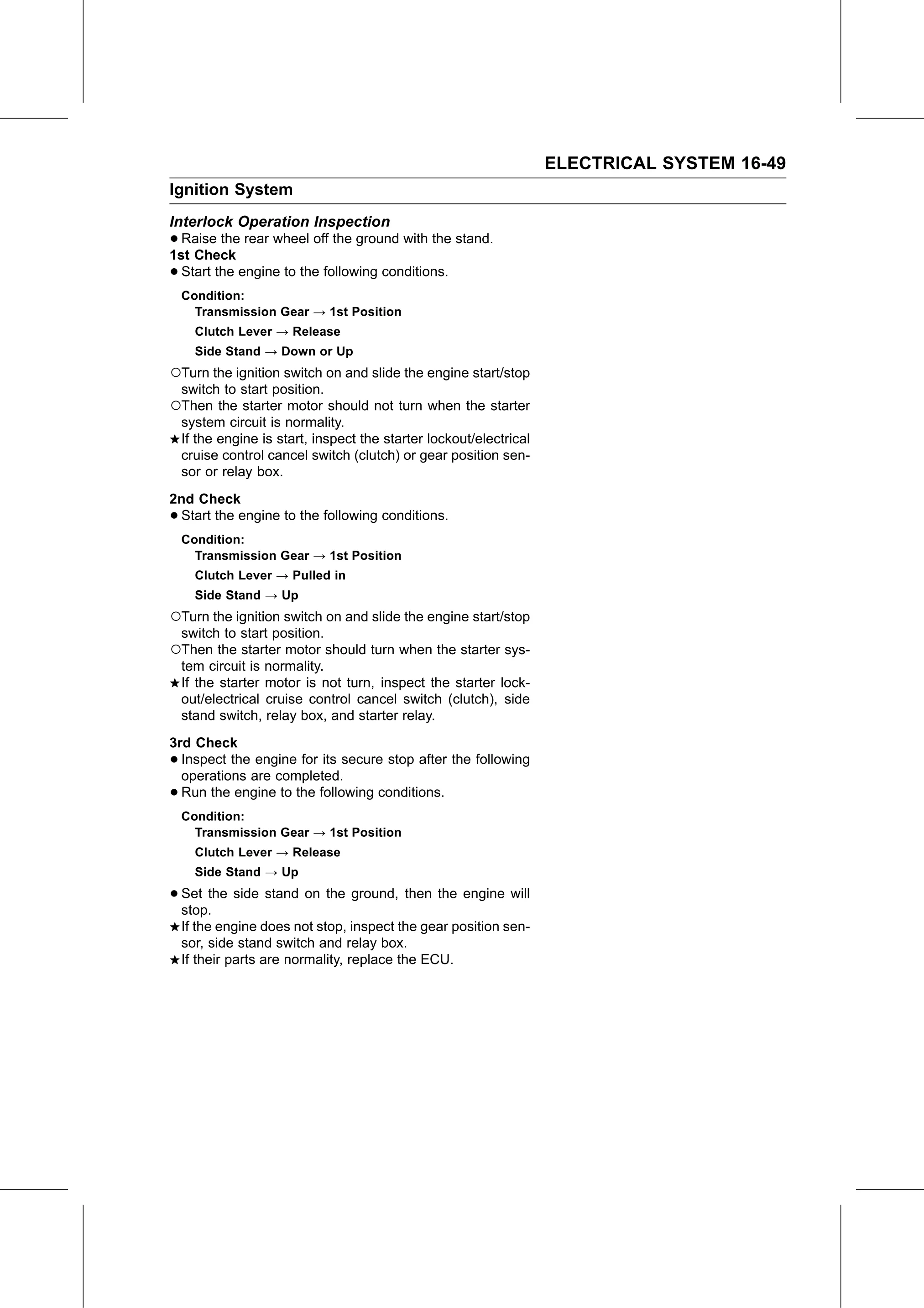

Service Manual (KLZ1000C) — page 531 of 762

Text on this page

ELECTRICAL SYSTEM 16-49
Ignition System
Interlock Operation Inspection
•1stRaise
     Check
          the rear wheel off the ground with the stand.

 • the engine to the following conditions.
   Start
    Condition:
      Transmission Gear → 1st Position
      Clutch Lever → Release
      Side Stand → Down or Up
○Turn the ignition switch on and slide the engine start/stop
 switch to start position.
○Then the starter motor should not turn when the starter
 system circuit is normality.
 If the engine is start, inspect the starter lockout/electrical
 cruise control cancel switch (clutch) or gear position sen-
 sor or relay box.
2nd Check
•Start the engine to the following conditions.
    Condition:
      Transmission Gear → 1st Position
      Clutch Lever → Pulled in
      Side Stand → Up
○Turn the ignition switch on and slide the engine start/stop
 switch to start position.
○Then the starter motor should turn when the starter sys-
 tem circuit is normality.
 If the starter motor is not turn, inspect the starter lock-
 out/electrical cruise control cancel switch (clutch), side
 stand switch, relay box, and starter relay.
3rd Check
• Inspect the engine for its secure stop after the following
  operations are completed.
• Run the engine to the following conditions.
    Condition:
      Transmission Gear → 1st Position
      Clutch Lever → Release
      Side Stand → Up

• Set the side stand on the ground, then the engine will
  stop.
    If the engine does not stop, inspect the gear position sen-
    sor, side stand switch and relay box.
    If their parts are normality, replace the ECU.
