ELECTRICAL SYSTEM 16-59
Electric Starter System

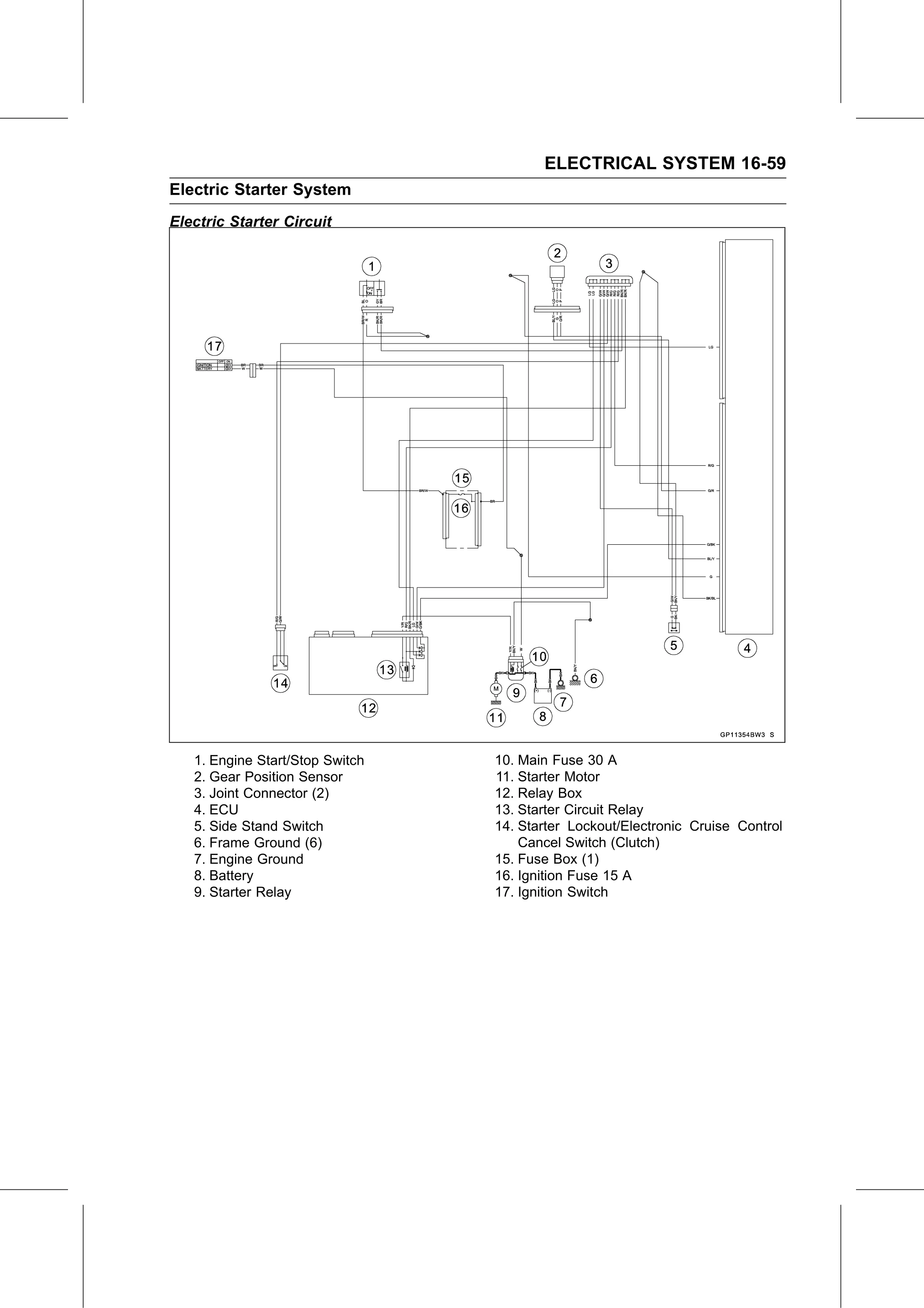

Electric Starter Circuit

   1. Engine Start/Stop Switch   10. Main Fuse 30 A
   2. Gear Position Sensor       11. Starter Motor
   3. Joint Connector (2)        12. Relay Box
   4. ECU                        13. Starter Circuit Relay
   5. Side Stand Switch          14. Starter Lockout/Electronic Cruise Control
   6. Frame Ground (6)               Cancel Switch (Clutch)
   7. Engine Ground              15. Fuse Box (1)
   8. Battery                    16. Ignition Fuse 15 A
   9. Starter Relay              17. Ignition Switch
