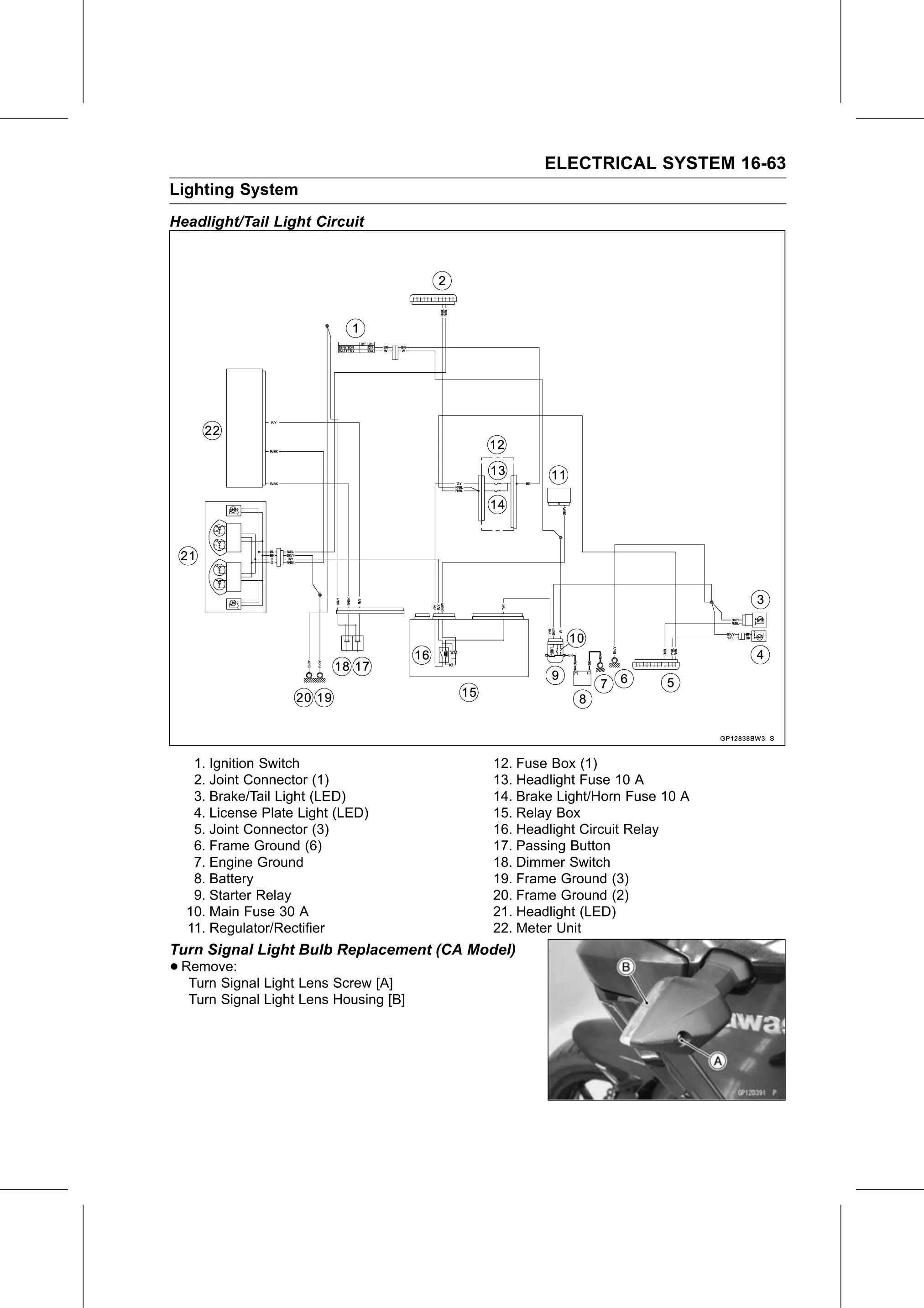

ELECTRICAL SYSTEM 16-63
Lighting System
Headlight/Tail Light Circuit

   1. Ignition Switch                     12. Fuse Box (1)
   2. Joint Connector (1)                 13. Headlight Fuse 10 A
   3. Brake/Tail Light (LED)              14. Brake Light/Horn Fuse 10 A
   4. License Plate Light (LED)           15. Relay Box
   5. Joint Connector (3)                 16. Headlight Circuit Relay
   6. Frame Ground (6)                    17. Passing Button
   7. Engine Ground                       18. Dimmer Switch
   8. Battery                             19. Frame Ground (3)
   9. Starter Relay                       20. Frame Ground (2)
  10. Main Fuse 30 A                      21. Headlight (LED)
  11. Regulator/Rectifier                 22. Meter Unit
Turn Signal Light Bulb Replacement (CA Model)
• Remove:
   Turn Signal Light Lens Screw [A]
  Turn Signal Light Lens Housing [B]
